Excavators

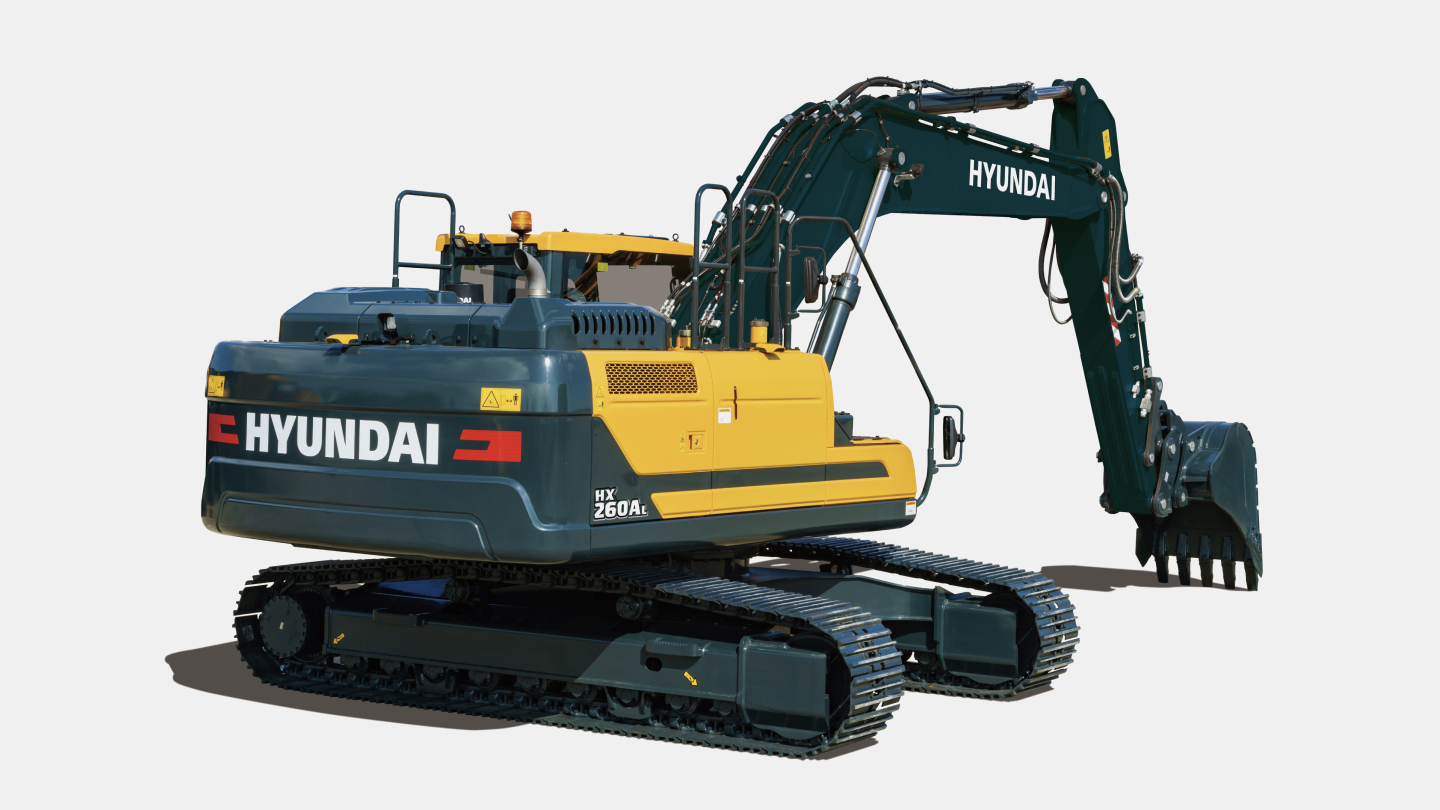

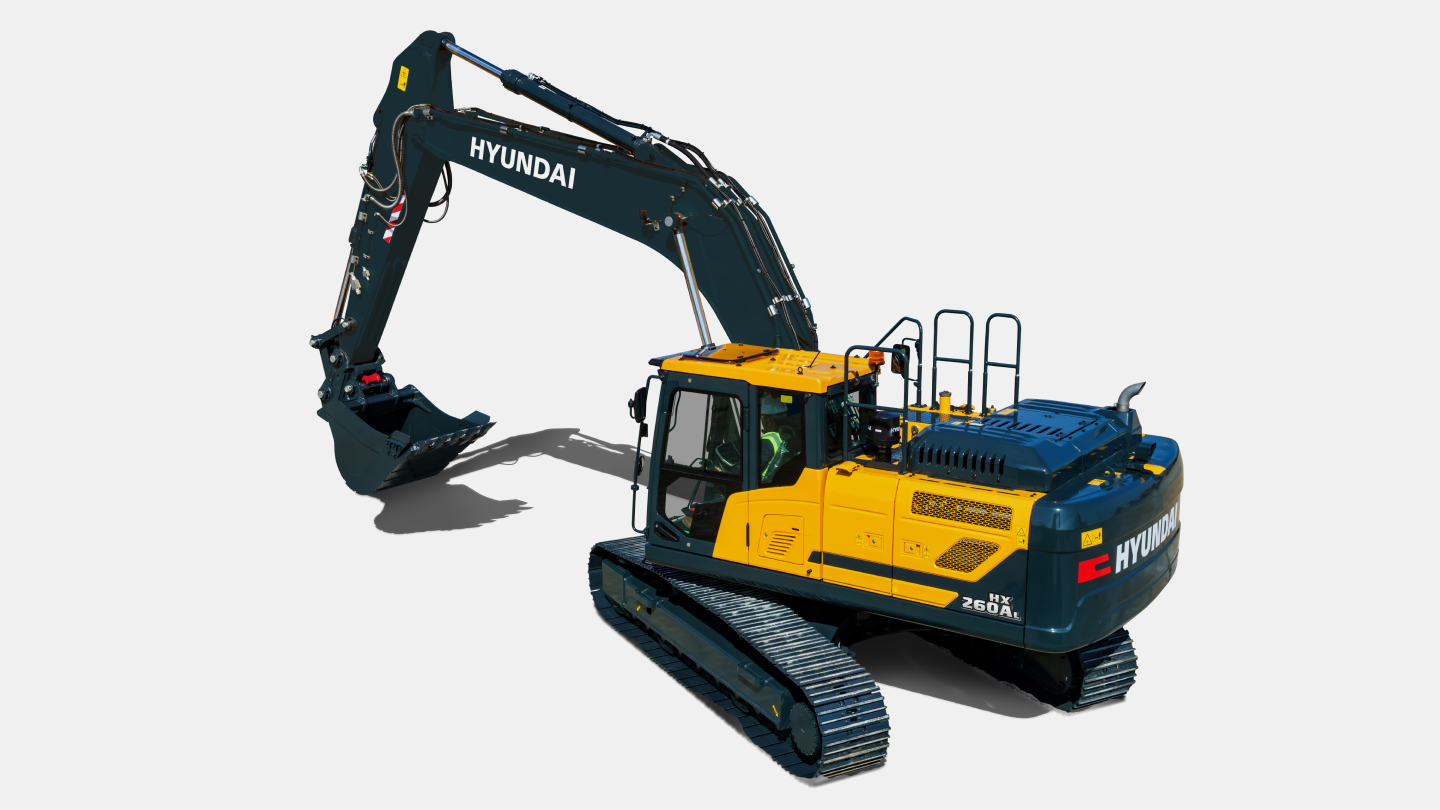

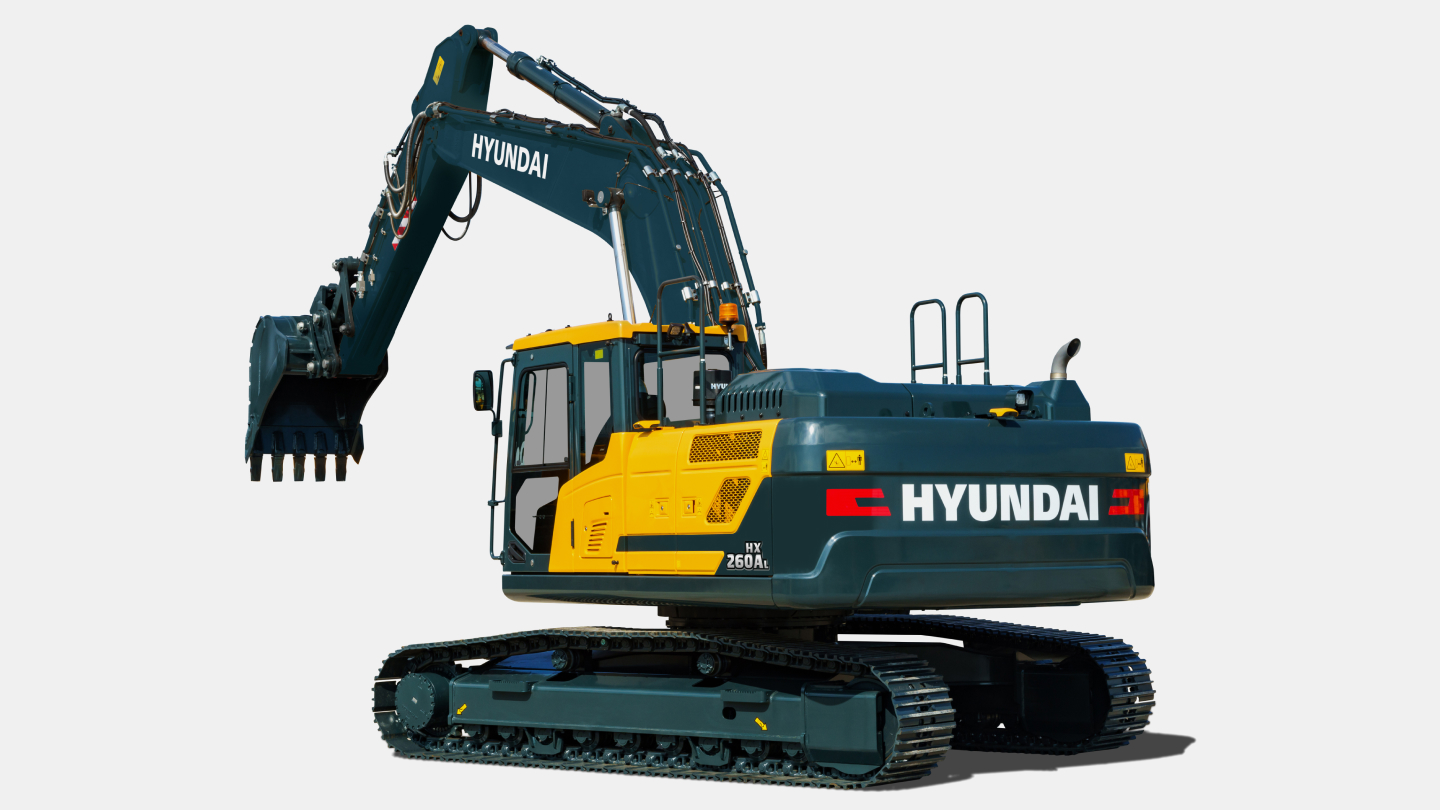

HX260AL
-
Type
Medium Excavators
-
Operating Weight
27 ton
-
Emission
STAGE V
-
Rated Power
232 hp / 2,000 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
27 ton
Bucket Capacity
1.08 m³
-
Engine
Emission
STAGE V
Engine model
Cummins B6.7
Rated Power
232 hp / 2,000 rpm
Max. Torque
949 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 × 221 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
450 ℓ
Hydraulic Tank
160 ℓ
DEF/ ADBLUE Tank
48 ℓ
-
Performance
Swing Speed
11.2 rpm
Travel Speed
5.6 km/h
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
18,200 kgf
Arm Digging Force (ISO)
12,000 kgf
-
Dimensions
Overall Length
10,010 mm
Overall Width
600 mm
Overall Height
3,230 mm
Tail Swing Radius
3,085 mm
Tumbler Distance
3,830 mm
Ground Clearance
1,110 mm
-
Operating Range
Boom Length
5,850 mm
Arm Length
3,050 mm
Max. Digging Reach
10,360 mm
Max. Digging Depth
7,010 mm
Max. Digging Height
10,290 mm
Max. Dumping Height
7,150 mm
Min. Swing Radius
3,450 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
