Excavators

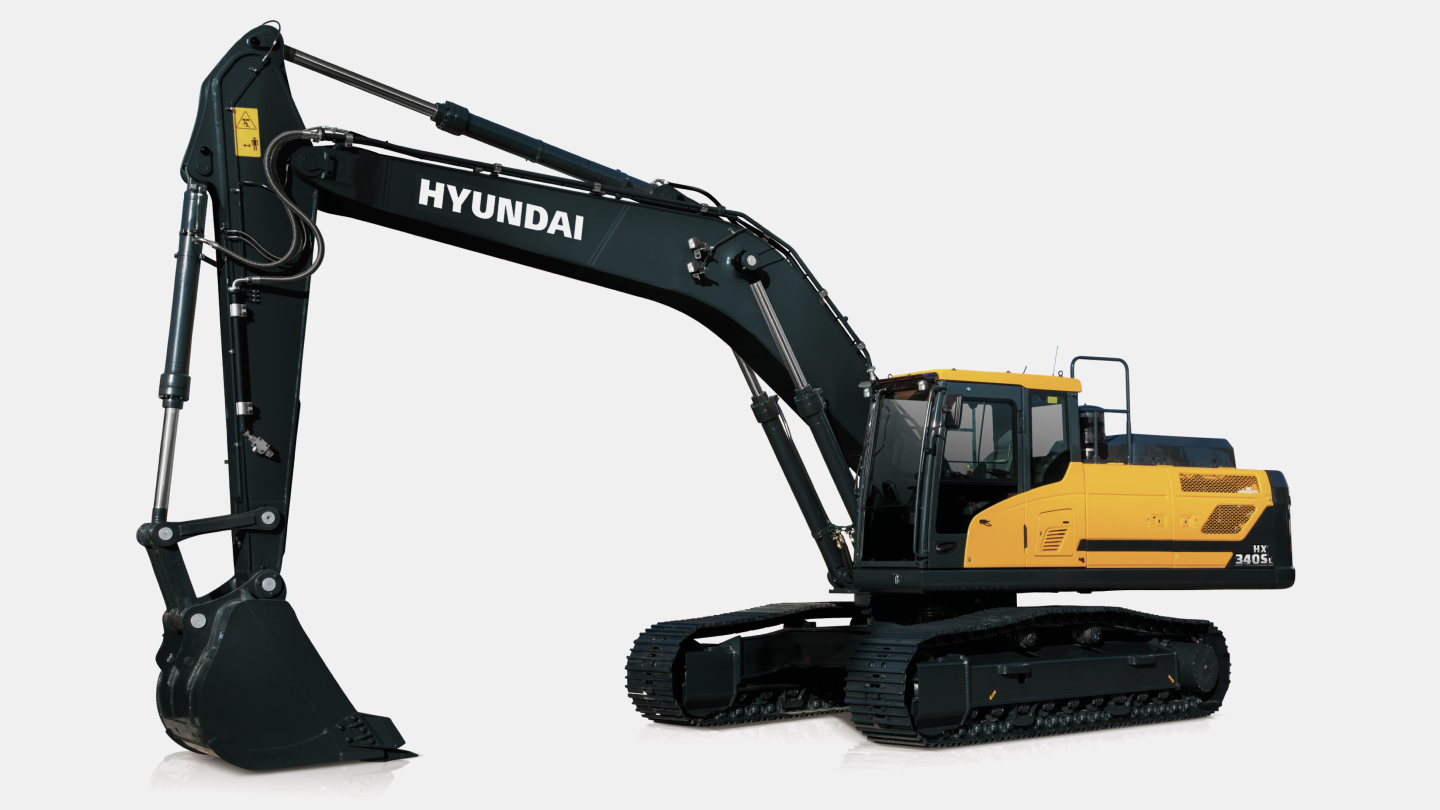

HX340SL(SPAIN)
-
Type
Large Excavators
-
Operating Weight
33 ton
-
Emission
N/A
-
Rated Power
260 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
33 ton
Bucket Capacity
1.44 m³
-
Engine
Emission
N/A
Engine model
HYUNDAI / HM8.3
Rated Power
260 hp / 2,200 rpm
Max. Torque
117 kgf·m / 1,300 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x306 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
210 ℓ
-
Performance
Swing Speed
11.2 rpm
Travel Speed
6.4 km/h
Max. Traction Force
29,500 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
22,100 kgf
Arm Digging Force (ISO)
14,800 kgf
-
Dimensions
Overall Length
11,220 mm
Overall Width
3,280 mm
Overall Height
3,360 mm
Tail Swing Radius
3,570 mm
Tumbler Distance
4,030 mm
Ground Clearance
500 mm
-
Operating Range
Boom Length
6,450 mm
Arm Length
3,200 mm
Max. Digging Reach
11,150 mm
Max. Digging Depth
7,360 mm
Max. Digging Height
10,360 mm
Max. Dumping Height
7,260 mm
Min. Swing Radius
4,360 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
