Specifications

• General

  Type

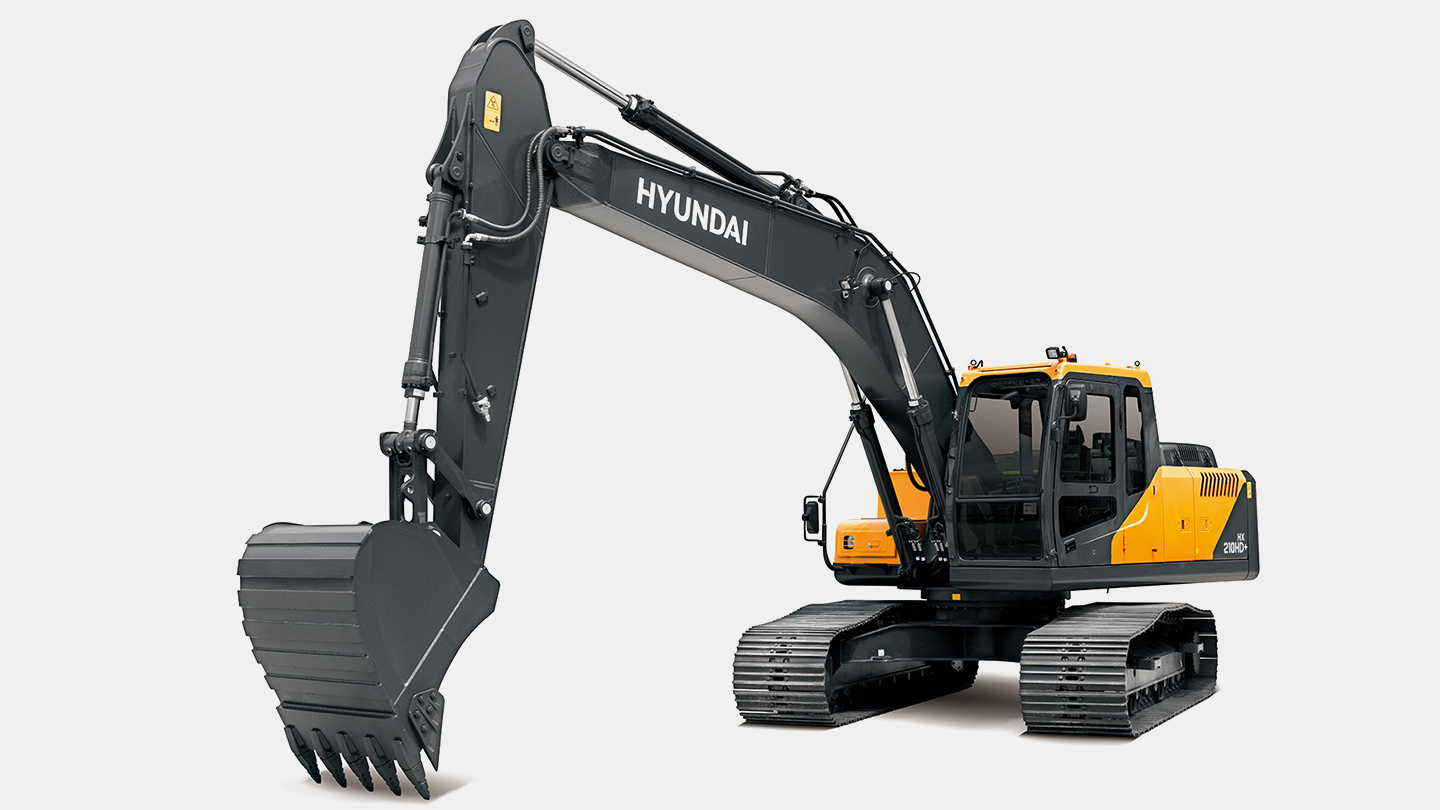

  Medium Excavators

  Operating Weight

  20.78  ton

  45812.07  lb

  Bucket Capacity

  0.92  m³

  1.2  yd³

• Engine

  Emission

  TIER 2

  Engine model

  Hyundai 6BTAA-5.9(HM5.9)

  Hyundai 6BTAA-5.9(HM5.9)

  Rated Power

  148  hp / 2,000 rpm

  110.26  kw / 2,000 rpm

  Max. Torque

  64  kgf·m / 1,300 rpm

  462.76  lbf.ft / 1,300 rpm

• Hydraulic System

  Main Pumps Rated Flow

  2*240  ℓ/min

  2*240  ℓ/min

  Implement Circuit

  350  kgf/cm²

  4978.19  psi

• Tank Capacity

  Fuel Tank

  360  ℓ

  95.18  gal

  Hydraulic Tank

  175  ℓ

  46.27  gal

  DEF/ ADBLUE Tank

  -

• Performance

  Swing Speed

  12.2  rpm

  12.2  rpm

  Travel Speed

  5.7  km/h

  3.54  mph

  Max. Traction Force

  21,100  kgf

  9570.8  lbf

  Max. Gradeability

  35  deg

  35  deg

  Bucket Digging Force (ISO)

  15,530  kgf

  7044.29  lbf

  Arm Digging Force (ISO)

  10,900  kgf

  4944.16  lbf

• Dimensions

  Overall Length

  9,550  mm

  31'4"  ft.in

  Overall Width

  2,800  mm

  9'2"  ft.in

  Overall Height

  3,050  mm

  10'0"  ft.in

  Tail Swing Radius

  2,845  mm

  9'4"  ft.in

  Tumbler Distance

  3,270  mm

  10'9"  ft.in

  Ground Clearance

  472  mm

  1'7"  ft.in

• Operating Range

  Boom Length

  5,700  mm

  18'8"  ft.in

  Arm Length

  2,900  mm

  9'6"  ft.in

  Max. Digging Reach

  9,945  mm

  32'8"  ft.in

  Max. Digging Depth

  6,500  mm

  21'4"  ft.in

  Max. Digging Height

  9,750  mm

  31'12"  ft.in

  Max. Dumping Height

  6,990  mm

  22'11"  ft.in

  Min. Swing Radius

  3,425  mm

  11'3"  ft.in
