Excavators

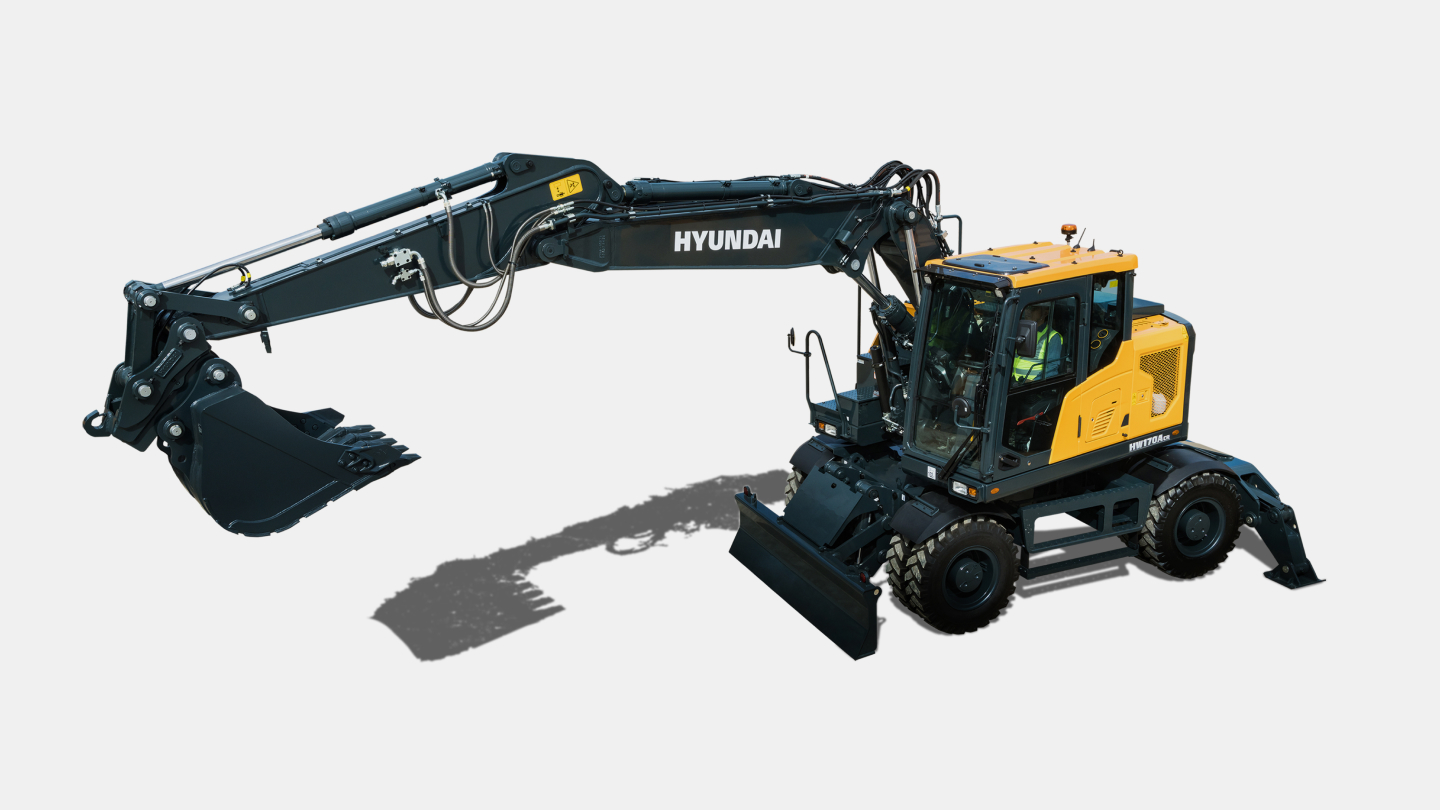

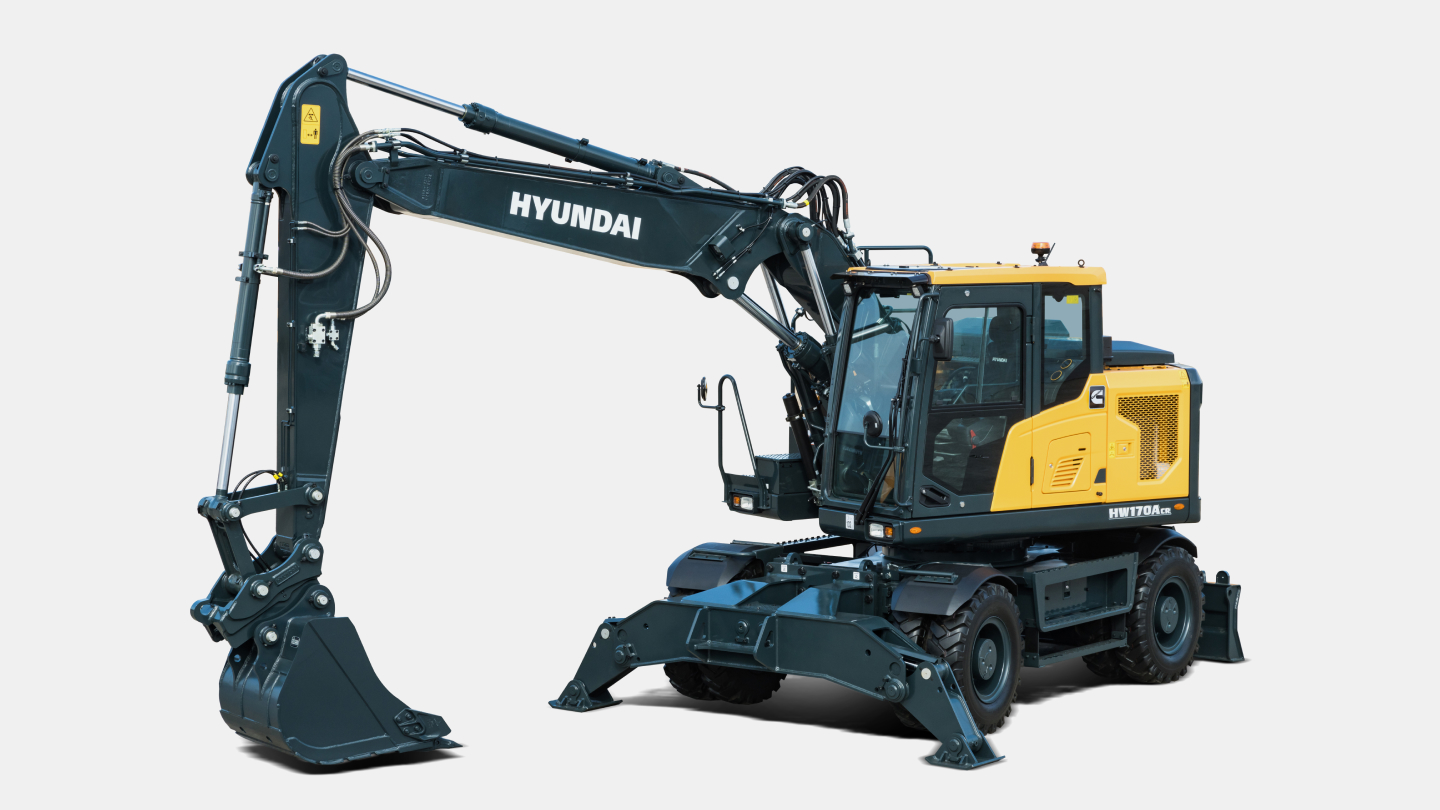

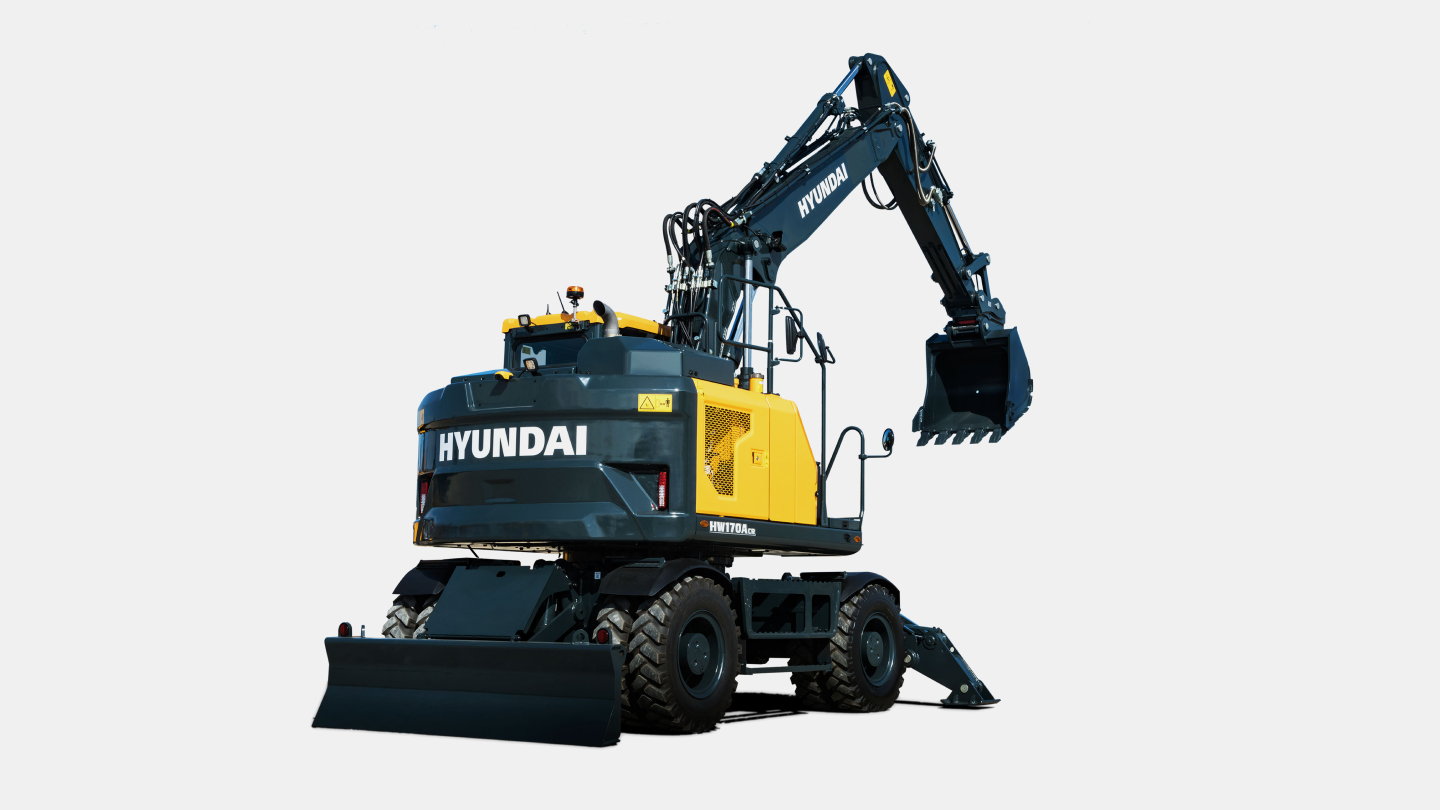

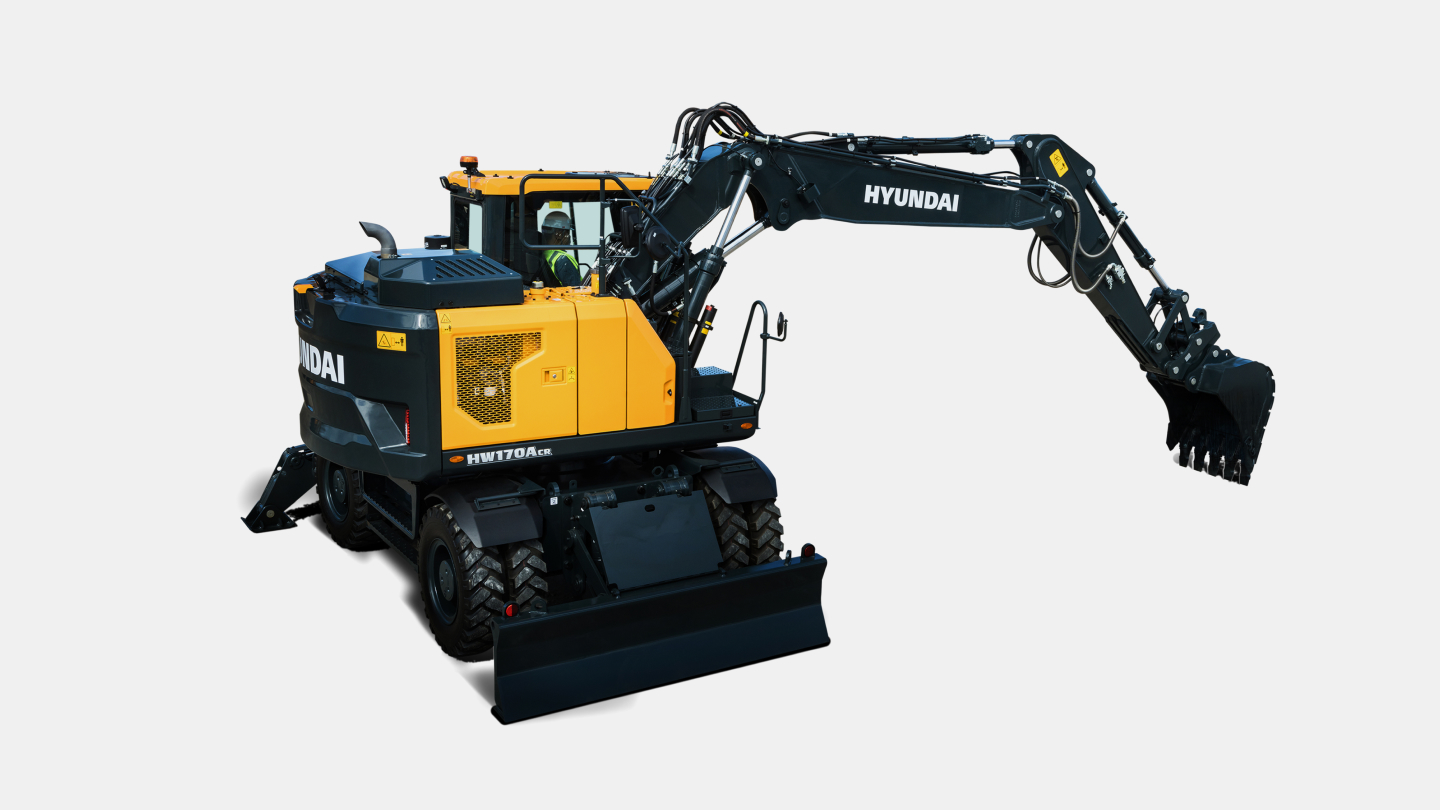

HW170A CR
-
Type
Wheel Excavators
-
Operating Weight
18.82 ton
-
Emission
STAGE V
-
Rated Power
173 hp / 2,200 rpm
- Catalog
3D View
This 3D image is for illustrative purposes only and may not represent the actual product.
Specifications
-
General
Type
Wheel Excavators
Operating Weight
18.82 ton
Bucket Capacity
0.70 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / B4.5
Rated Power
173 hp / 2,200 rpm
Max. Torque
79.53 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
260 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
200 ℓ
Hydraulic Tank
103 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
9.3 rpm
Travel Speed
35 km/h
Max. Traction Force
10,720 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
11,706 kgf
Arm Digging Force (ISO)
7,178 kgf
-
Dimensions
Overall Length
7,860 mm
Overall Width
2,530 mm
Overall Height
3,275 mm
Tail Swing Radius
1,830 mm
Ground Clearance
340 mm
-
Operating Range
Boom Length
5,000 mm
Arm Length
2,450 mm
Max. Digging Reach
8,950 mm
Max. Digging Depth
5,440 mm
Max. Digging Height
9,785 mm
Max. Dumping Height
7,060 mm
Min. Swing Radius
3,040 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
