Excavators

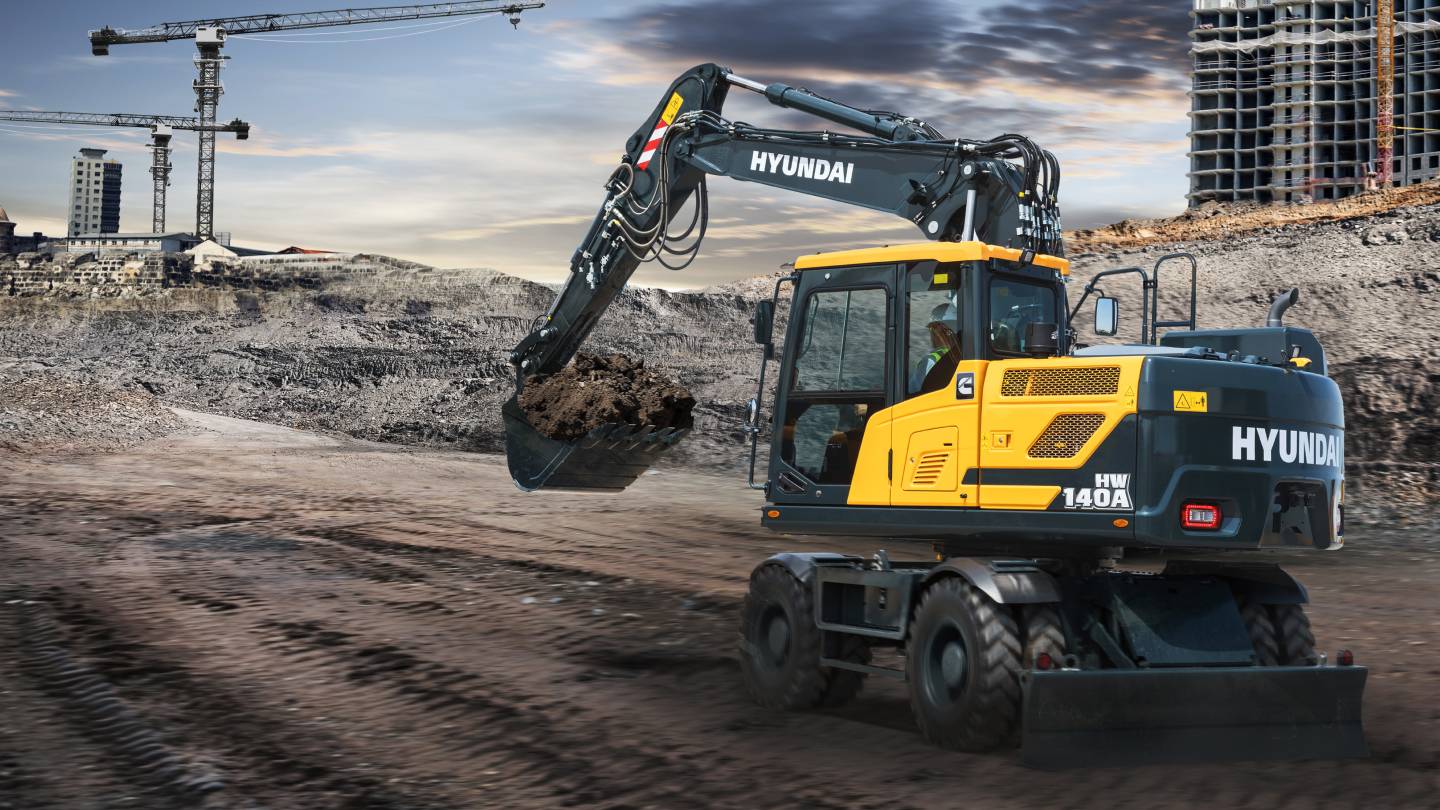

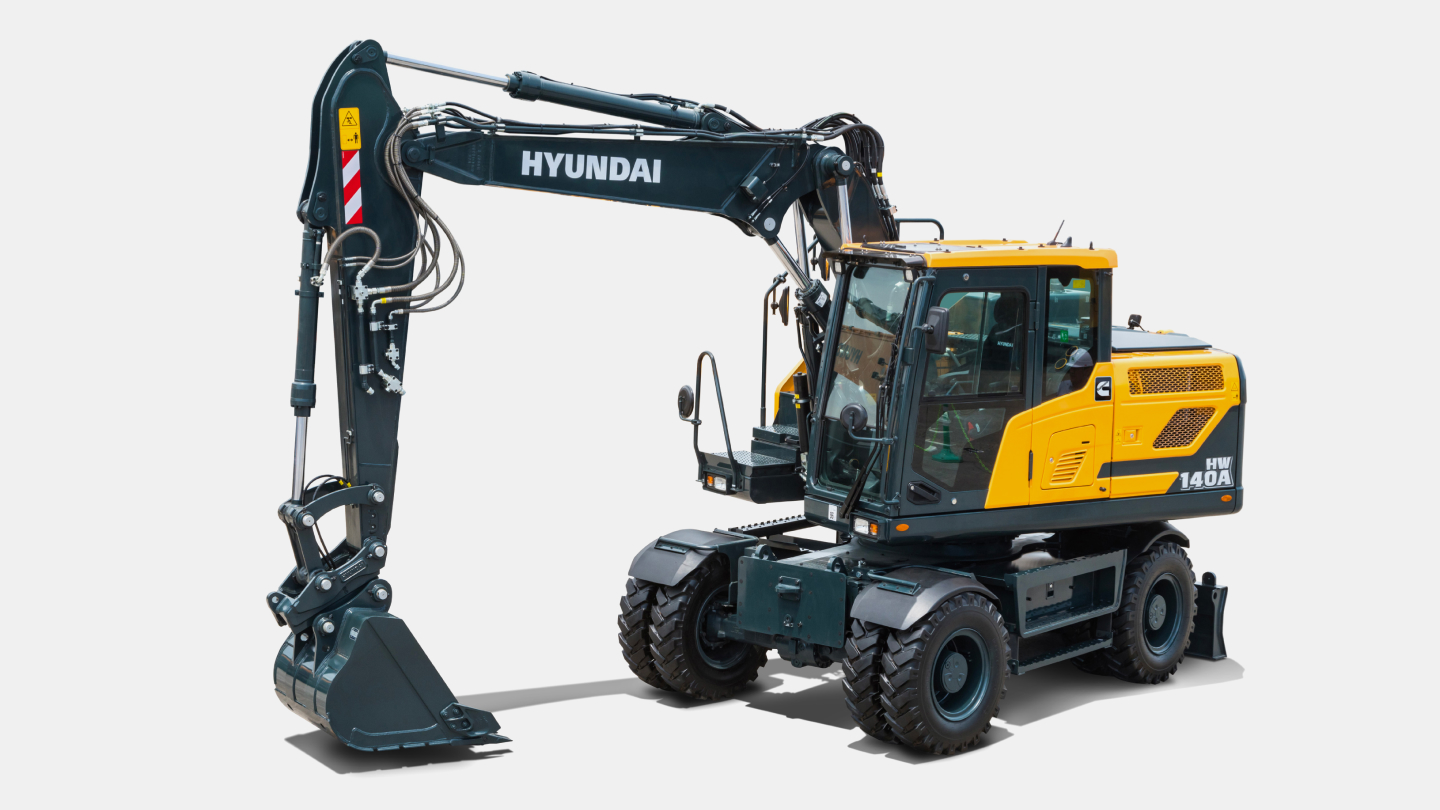

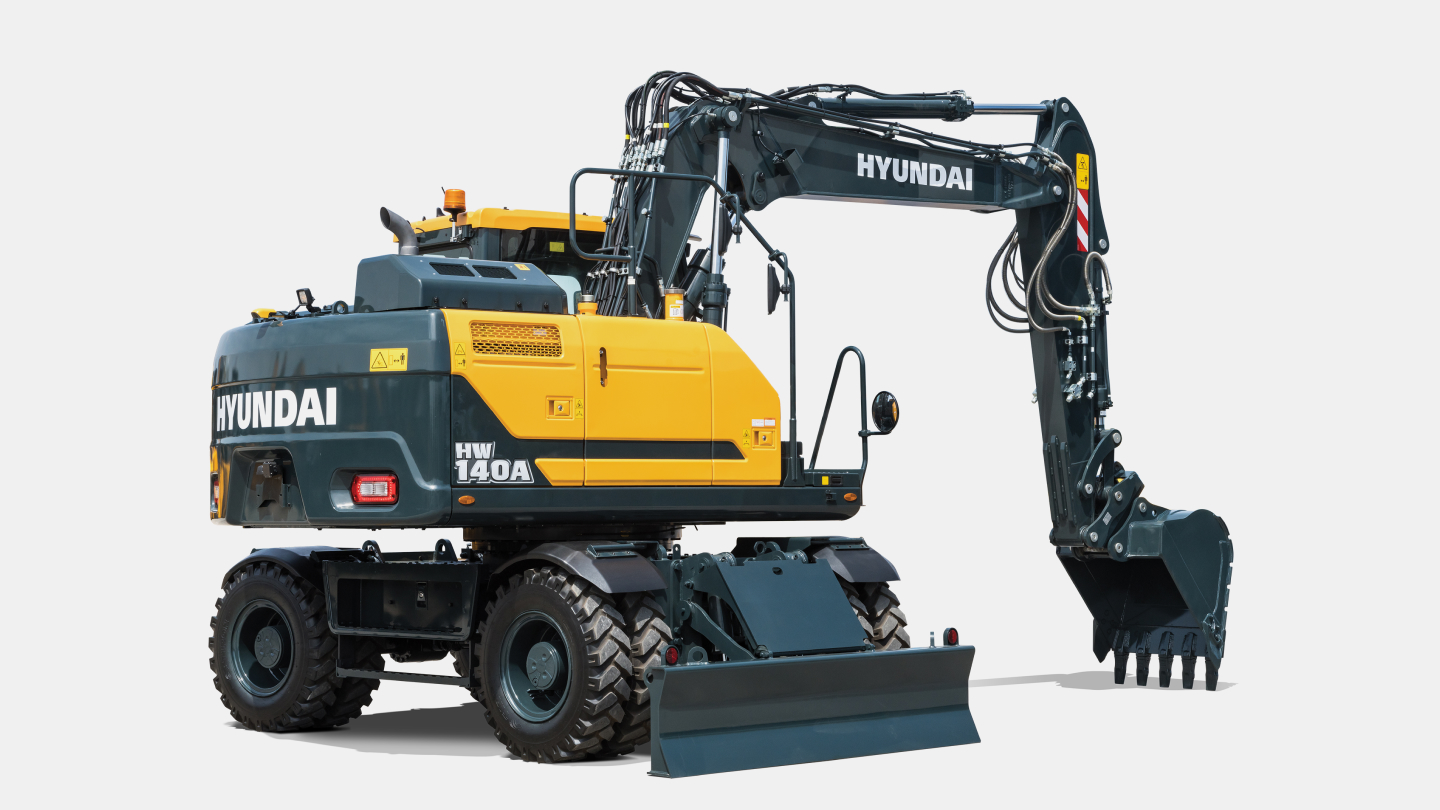

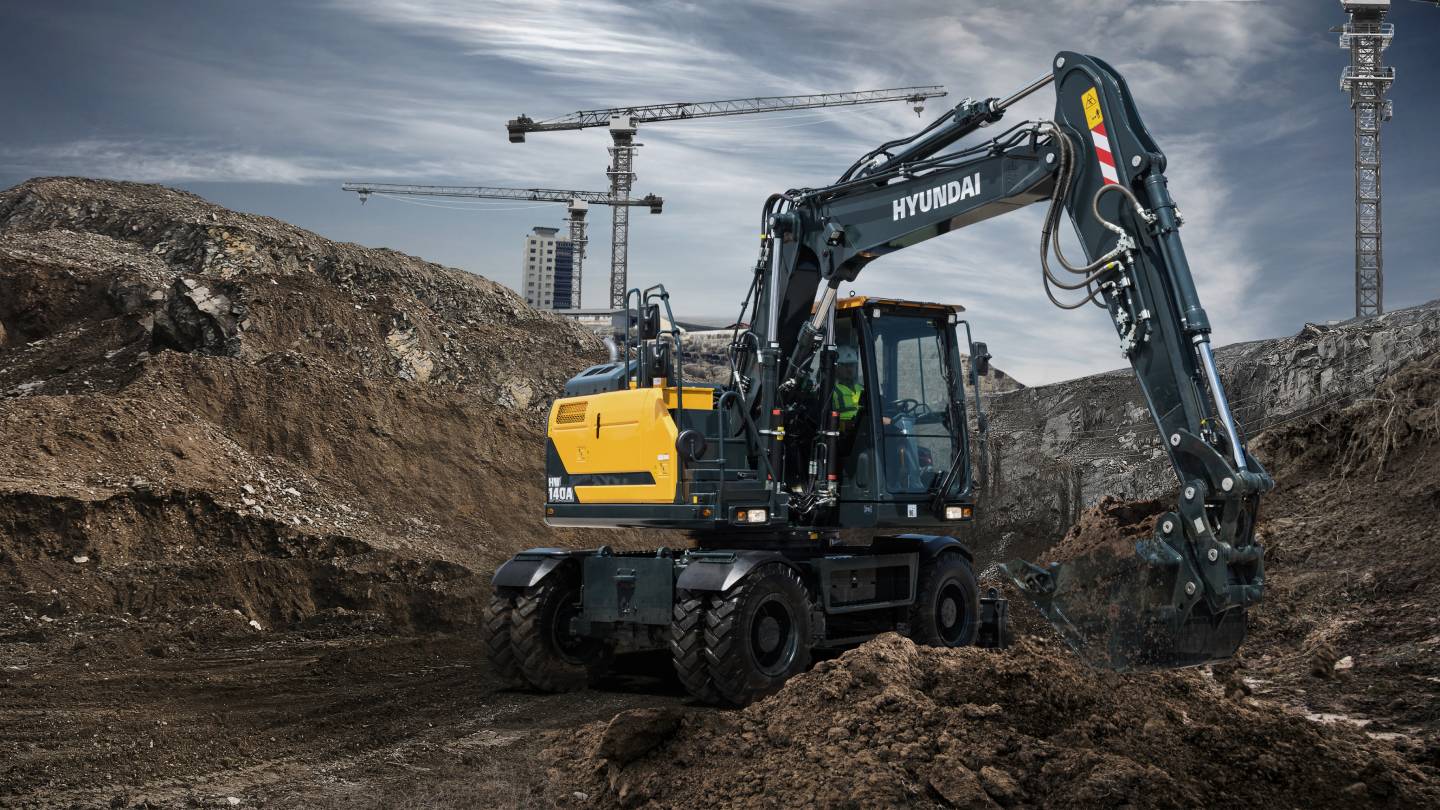

HW140A
-
Type
Wheel Excavators
-
Operating Weight
14.9 ton
-
Emission
STAGE V
-
Rated Power
173 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
14.9 ton
Bucket Capacity
0.58 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / B4.5
Rated Power
173 hp / 2,200 rpm
-
Hydraulic System
Main Pumps Rated Flow
230 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
250 ℓ
Hydraulic Tank
122 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
9.5 rpm
Travel Speed
35 km/h
Max. Traction Force
8,163 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
11,450 kgf
Arm Digging Force (ISO)
7,380 kgf
-
Dimensions
Overall Length
7,660 mm
Overall Width
2,530 mm
Overall Height
3,475 mm
Tail Swing Radius
2,170 mm
Ground Clearance
390 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,450 mm
Max. Digging Reach
8,310 mm
Max. Digging Depth
5,110 mm
Max. Digging Height
8,850 mm
Max. Dumping Height
6,400 mm
Min. Swing Radius
2,680 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
