Excavators

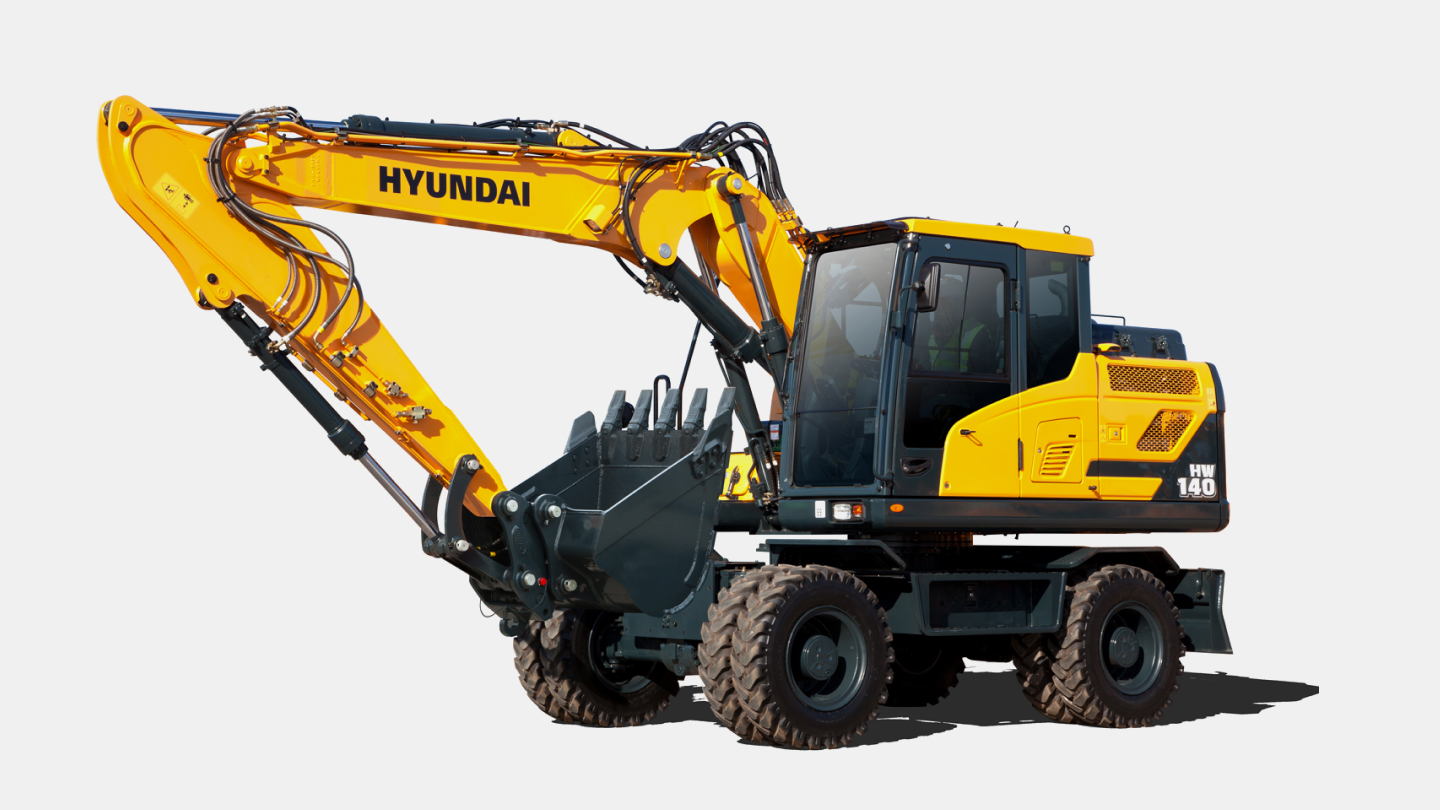

HW140
-
Type
Wheel Excavators
-
Operating Weight
13.88 ton
-
Emission
TIER 4
-
Rated Power
157 hp / 2,150 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
13.88 ton
Bucket Capacity
0.58 m³
-
Engine
Emission
TIER 4
Engine model
CUMMINS QSB 6.7
Rated Power
157 hp / 2,150 rpm
Max. Torque
68.5 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x172 ℓ/min
Implement Circuit
350 kgf/cm²[380]kgf/c㎡
-
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
120 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
11.6 rpm
Travel Speed
39 km/h
Max. Traction Force
7,800 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
11,290 kgf
Arm Digging Force (ISO)
8,580 kgf
-
Dimensions
Overall Length
7,820 mm
Overall Width
2,495 mm
Overall Height
3,390 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,100 mm
Max. Digging Reach
7,920 mm
Max. Digging Depth
4,850 mm
Max. Digging Height
8,470 mm
Max. Dumping Height
6,040 mm
Min. Swing Radius
2,670 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
