Excavators

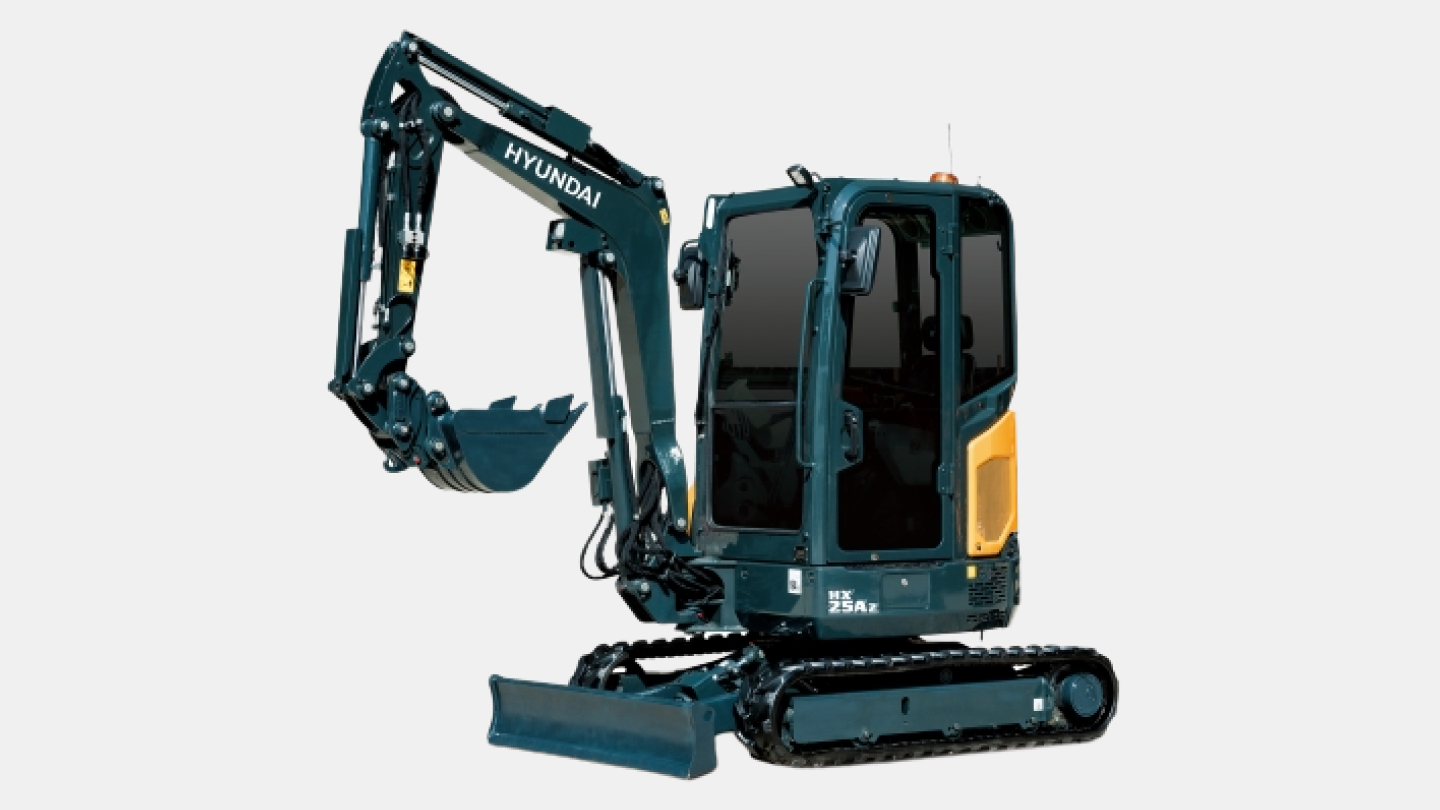

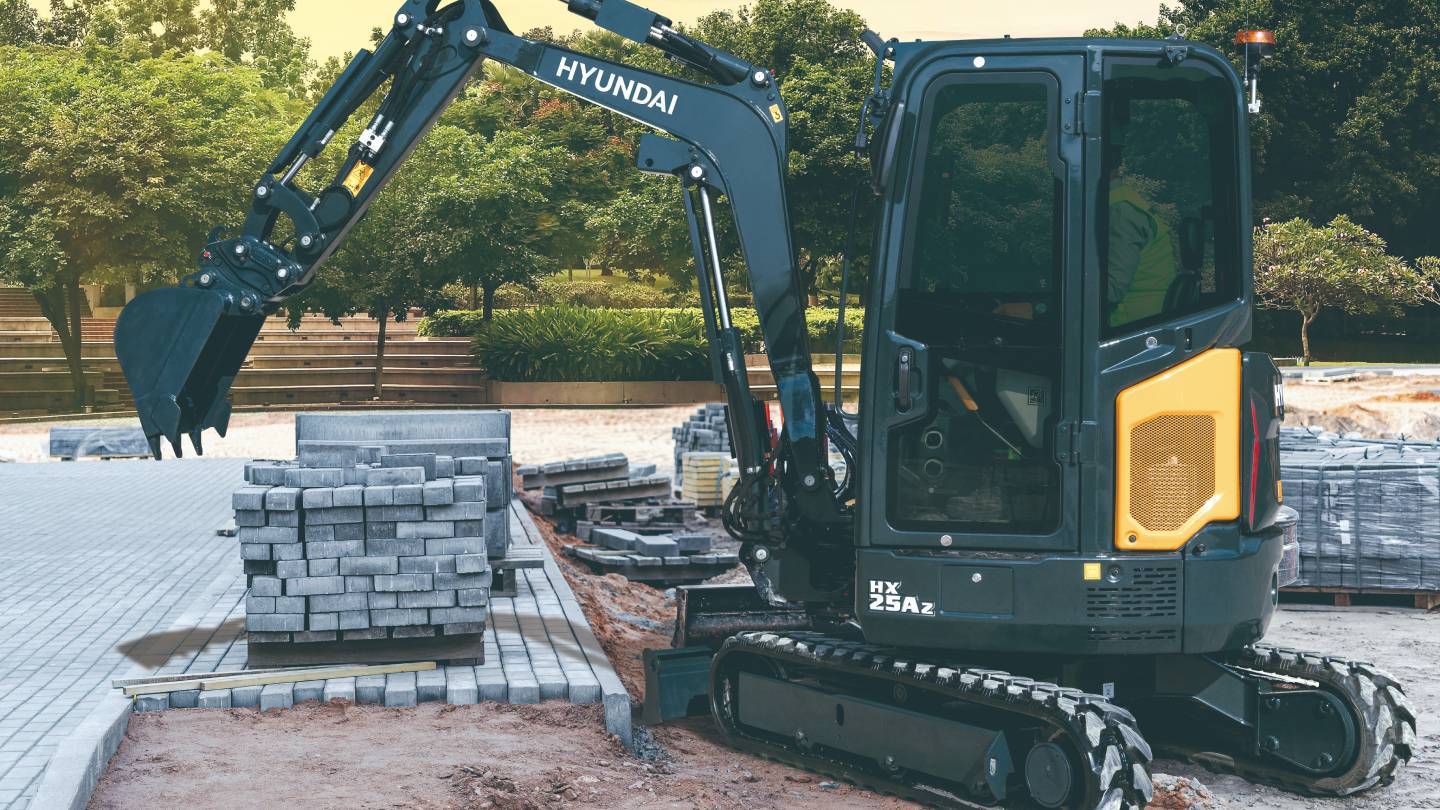

HX25AZ
-
Type
Compact Excavators
-
Operating Weight
2.555 ton
-
Emission
STAGE V
-
Rated Power
25.2 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
2.555 ton
Bucket Capacity
0.07 m³
-
Engine
Emission
STAGE V
Engine model
D1305
Rated Power
25.2 hp / 2,400 rpm
Max. Torque
8.3 kgf·m / 0 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 28.2 + 20.0 ℓ/min
-
Tank Capacity
Fuel Tank
30 ℓ
Hydraulic Tank
27 ℓ
-
Performance
Swing Speed
9.16 rpm
Travel Speed
4.35 km/h
Max. Traction Force
2,266 kgf
Bucket Digging Force (ISO)
2,079 kgf
Arm Digging Force (ISO)
1,451 kgf
-
Dimensions
Overall Length
4,150 mm
Overall Width
1,534 mm
Overall Height
2,452 mm
Tumbler Distance
1,550 mm
Ground Clearance
328 mm
-
Operating Range
Boom Length
2,030 mm
Arm Length
1,120 mm
Max. Digging Reach
4,560 mm
Max. Digging Depth
2,515 mm
Max. Digging Height
4,175 mm
Max. Dumping Height
2,870 mm
Min. Swing Radius
2,050 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
