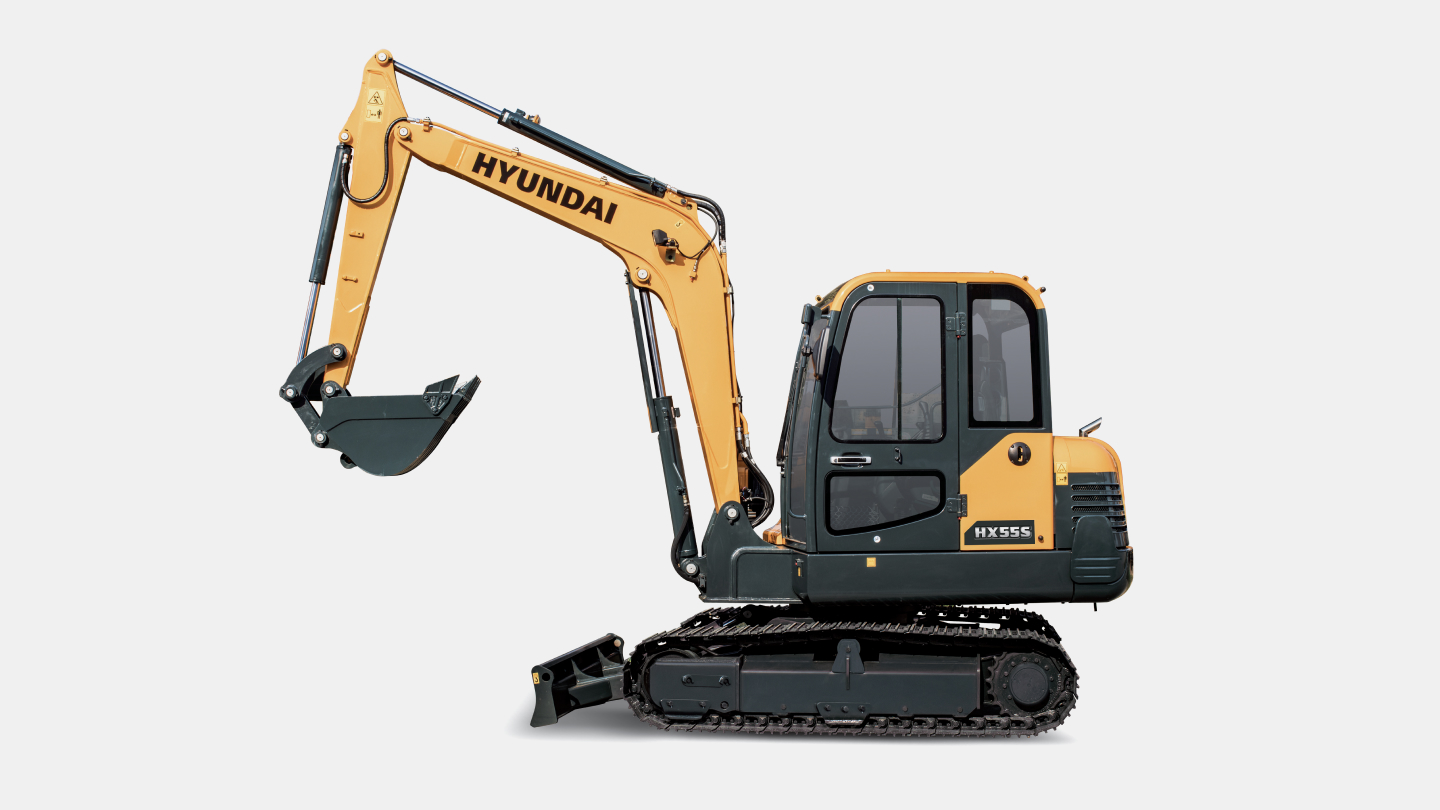

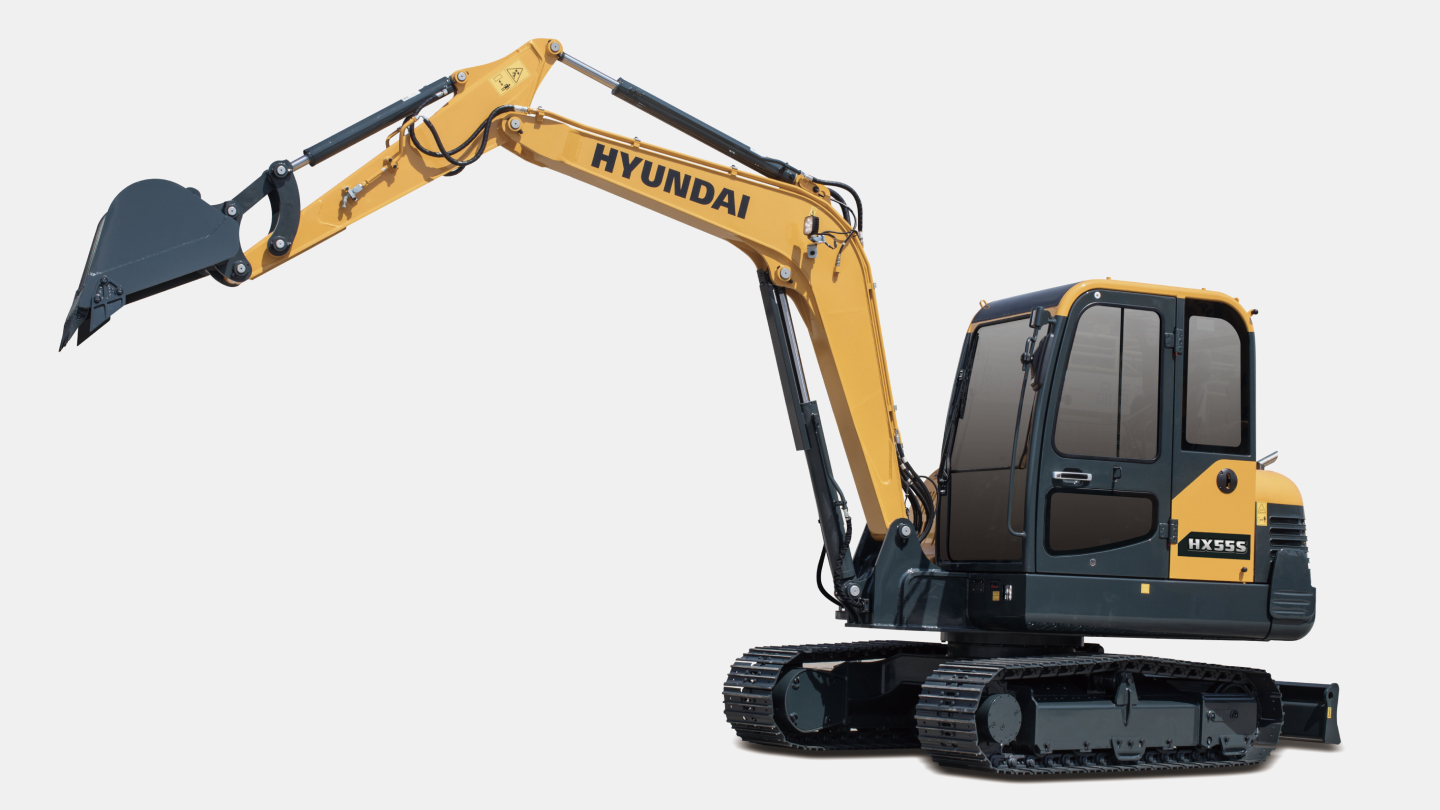

Excavators
Type
Compact Excavators
Operating Weight
5.56  ton
Emission
TIER 2
Rated Power
48.5  hp / 2,200 rpm
General
Type
Compact Excavators
Operating Weight
5.56  ton
Bucket Capacity
0.18  m³
Engine
Emission
TIER 2
Engine model
YANMAR 4TNV94L
Rated Power
48.5  hp / 2,200 rpm
Max. Torque
20.5  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
138  ℓ/min
Implement Circuit
240  kgf/cm²
Tank Capacity
Fuel Tank
118.5  ℓ
Hydraulic Tank
70  ℓ
Performance
Swing Speed
10.9  rpm
Travel Speed
4.6  km/h
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
4,670  kgf
Arm Digging Force (ISO)
2,753  kgf
Dimensions
Overall Length
5,900  mm
Overall Width
1,920  mm
Overall Height
2,550  mm
Tail Swing Radius
1,650  mm
Tumbler Distance
1,990  mm
Ground Clearance
380  mm
Operating Range
Boom Length
3,000  mm
Arm Length
1,600  mm
Max. Digging Reach
6,110  mm
Max. Digging Depth
3,730  mm
Max. Digging Height
5,740  mm
Max. Dumping Height
4,040  mm
Min. Swing Radius
2,350  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
