Excavators

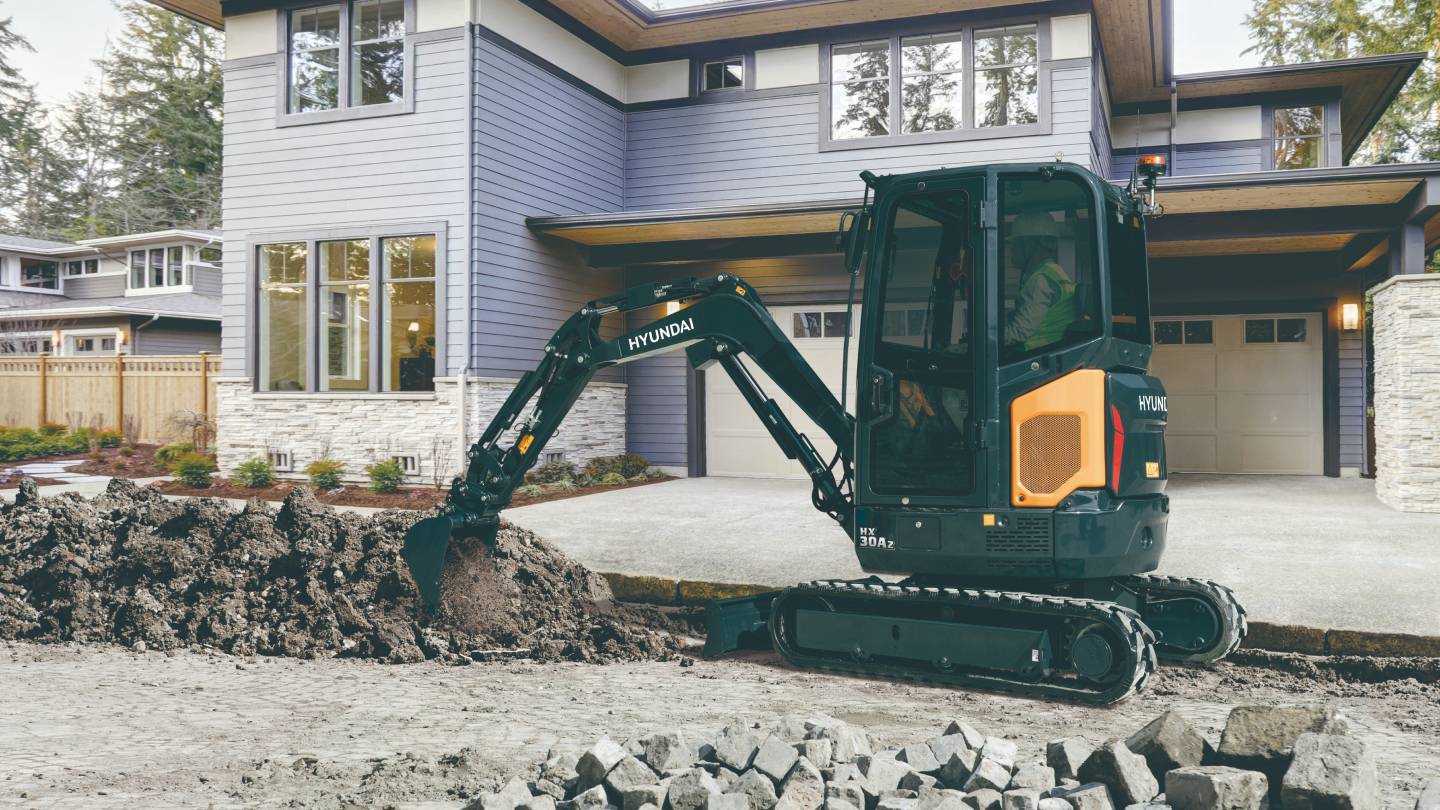

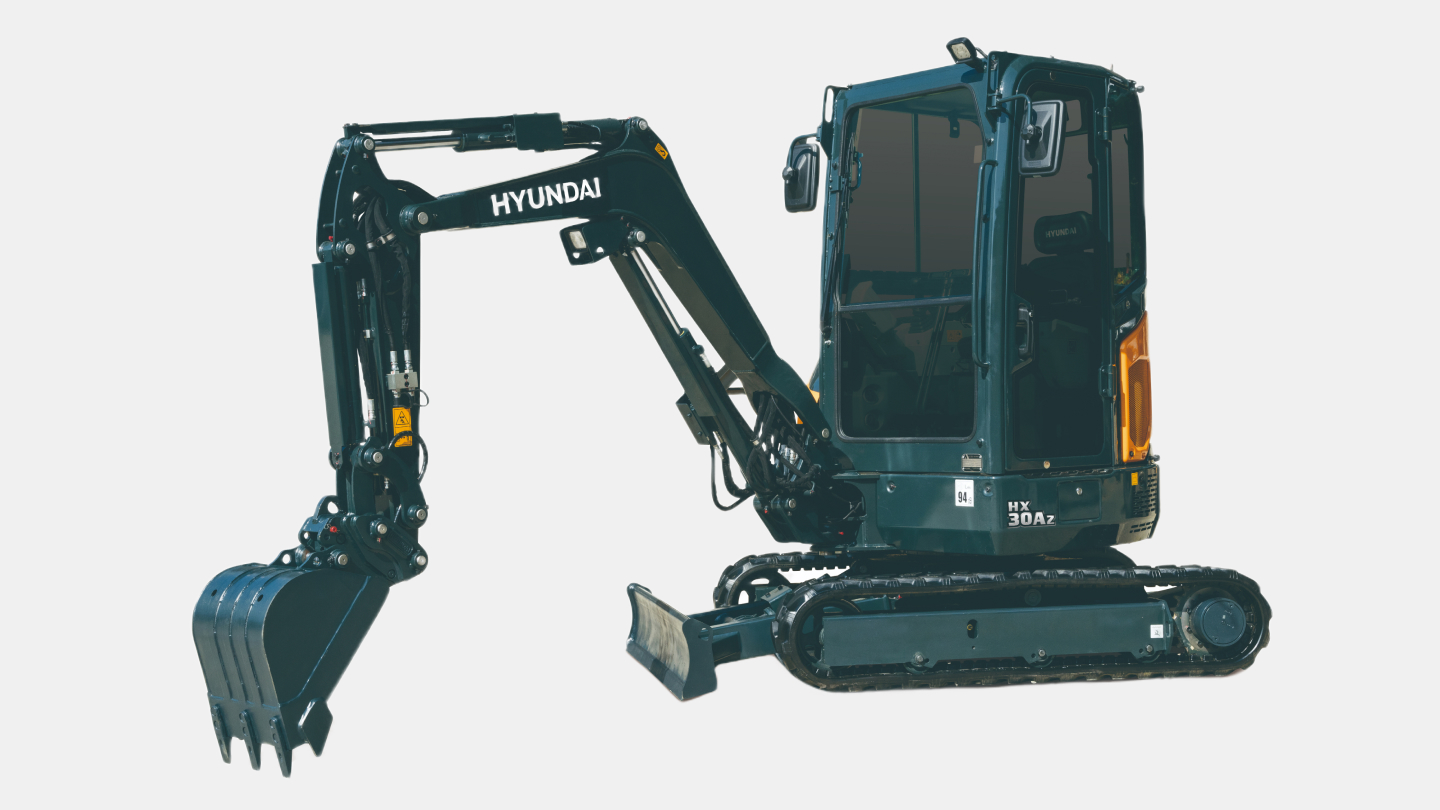

HX30AZ
-
Type
Compact Excavators
-
Operating Weight
2.760 ton
-
Emission
STAGE V
-
Rated Power
25.2 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
2.760 ton
Bucket Capacity
0.07 m³
-
Engine
Emission
STAGE V
Engine model
D1305
Rated Power
25.2 hp / 2,400 rpm
Max. Torque
8.3 kgf·m / 0 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 28.2 + 20.0 ℓ/min
-
Tank Capacity
Fuel Tank
30 ℓ
Hydraulic Tank
27 ℓ
-
Performance
Swing Speed
9.16 rpm
Travel Speed
4.35 km/h
Max. Traction Force
2,266 kgf
Bucket Digging Force (ISO)
2,093 kgf
Arm Digging Force (ISO)
1,313 kgf
-
Dimensions
Overall Length
4,170 mm
Overall Width
1,550 mm
Overall Height
2,452 mm
Tumbler Distance
1,550 mm
Ground Clearance
328 mm
-
Operating Range
Boom Length
2,030 mm
Arm Length
1,300 mm
Max. Digging Reach
4,725 mm
Max. Digging Depth
2,695 mm
Max. Digging Height
4,290 mm
Max. Dumping Height
2,975 mm
Min. Swing Radius
2,100 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
