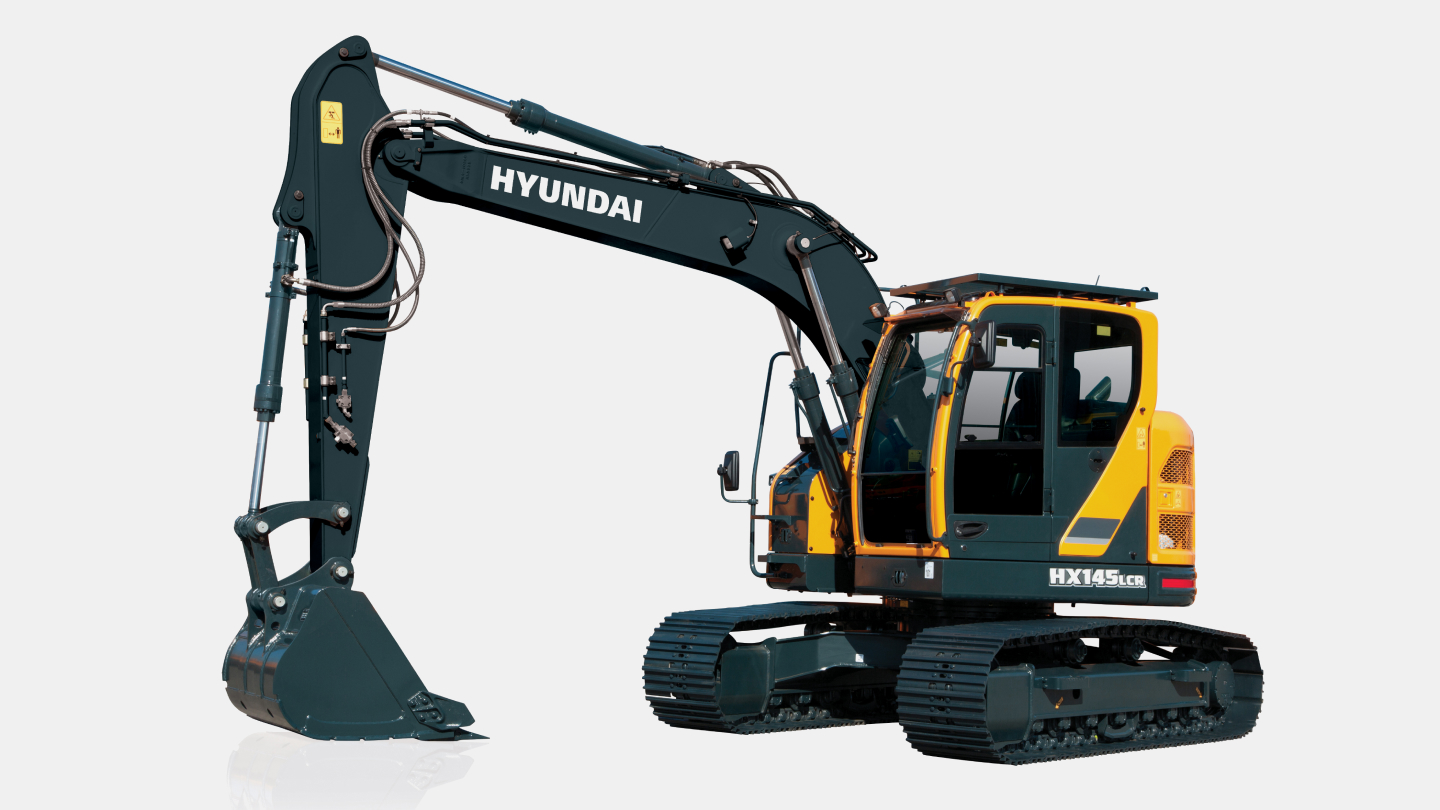

Excavators
Type
Compact Excavators
Operating Weight
14.9  ton
Emission
TIER 3
Rated Power
130  hp / 2,000 rpm
General
Type
Compact Excavators
Operating Weight
14.9  ton
Bucket Capacity
0.52  m³
Engine
Emission
TIER 3
Engine model
CUMMINS QSB4.5
Rated Power
130  hp / 2,000 rpm
Max. Torque
63  kgf·m / 1,500 rpm
Hydraulic System
Main Pumps Rated Flow
2x120  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
265  ℓ
Hydraulic Tank
96  ℓ
Performance
Swing Speed
11.4  rpm
Travel Speed
5.4  km/h
Max. Traction Force
12,672  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
10,370  kgf[11,260]kgf
Arm Digging Force (ISO)
6,640  kgf[7,210]kgf
Dimensions
Overall Length
7,250  mm
Overall Width
2,600  mm
Overall Height
2,935  mm
Tail Swing Radius
1,500  mm
Tumbler Distance
2,910  mm
Ground Clearance
440  mm
Operating Range
Boom Length
4,600  mm
Arm Length
2,500  mm
Max. Digging Reach
8,310  mm
Max. Digging Depth
5,440  mm
Max. Digging Height
9,370  mm
Max. Dumping Height
6,875  mm
Min. Swing Radius
2,050  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
