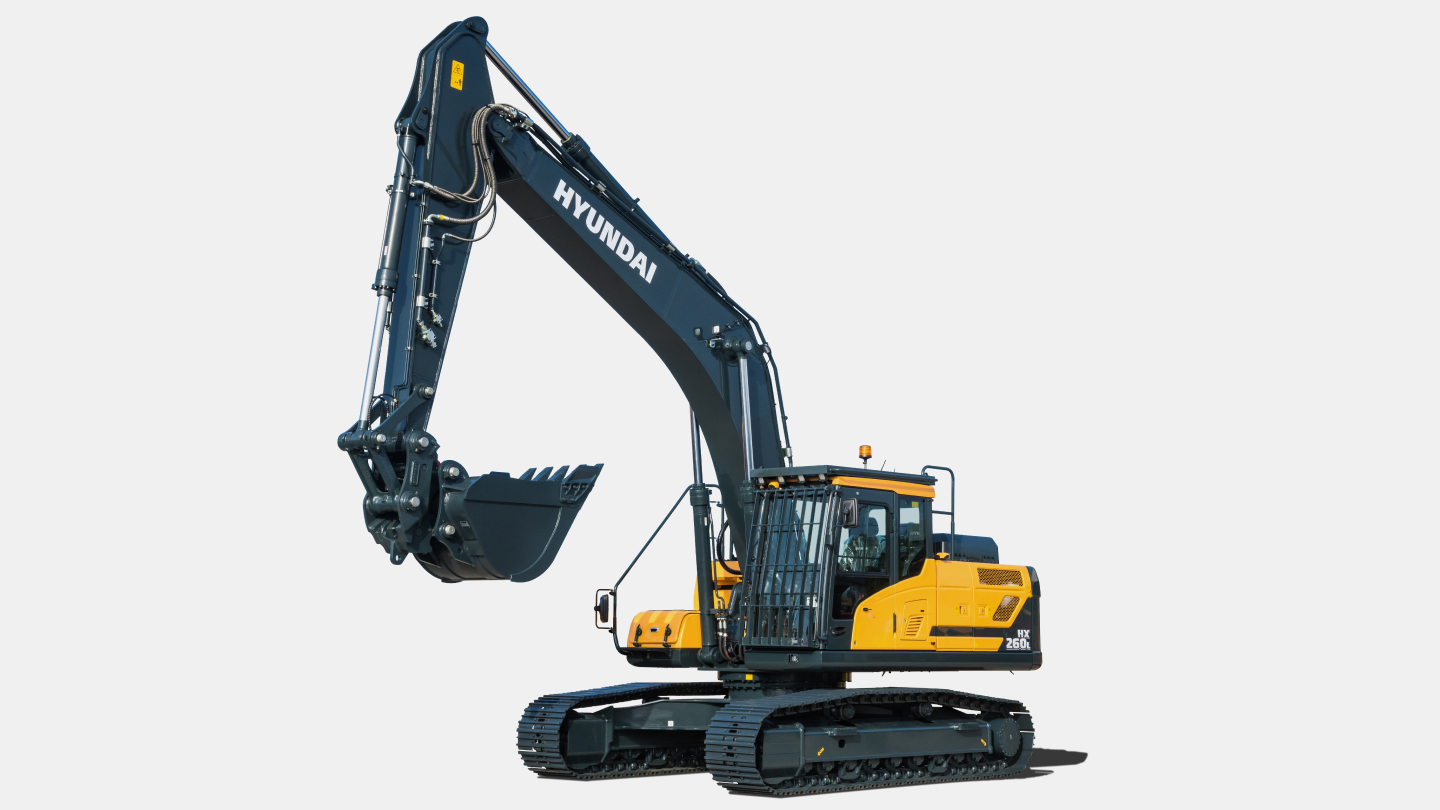

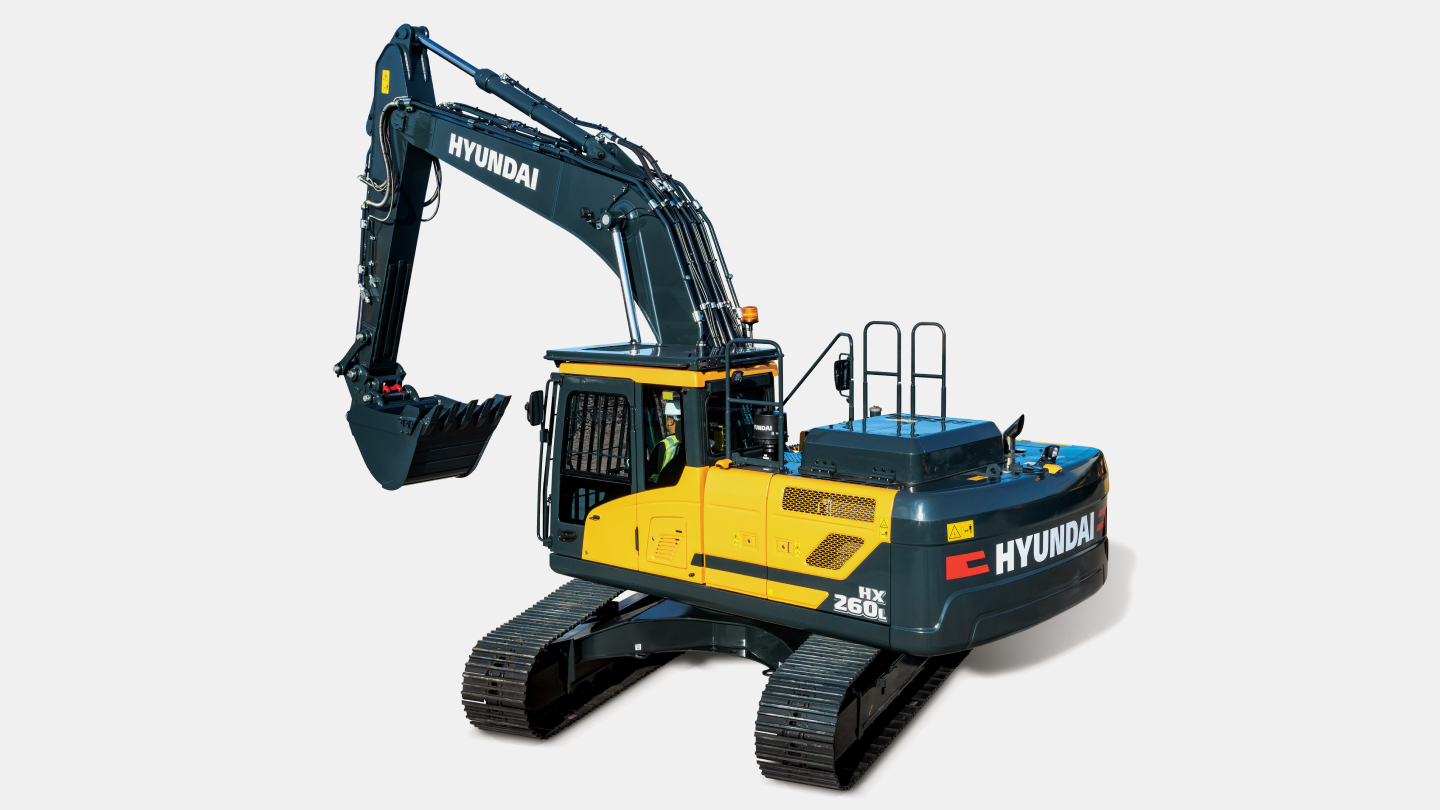

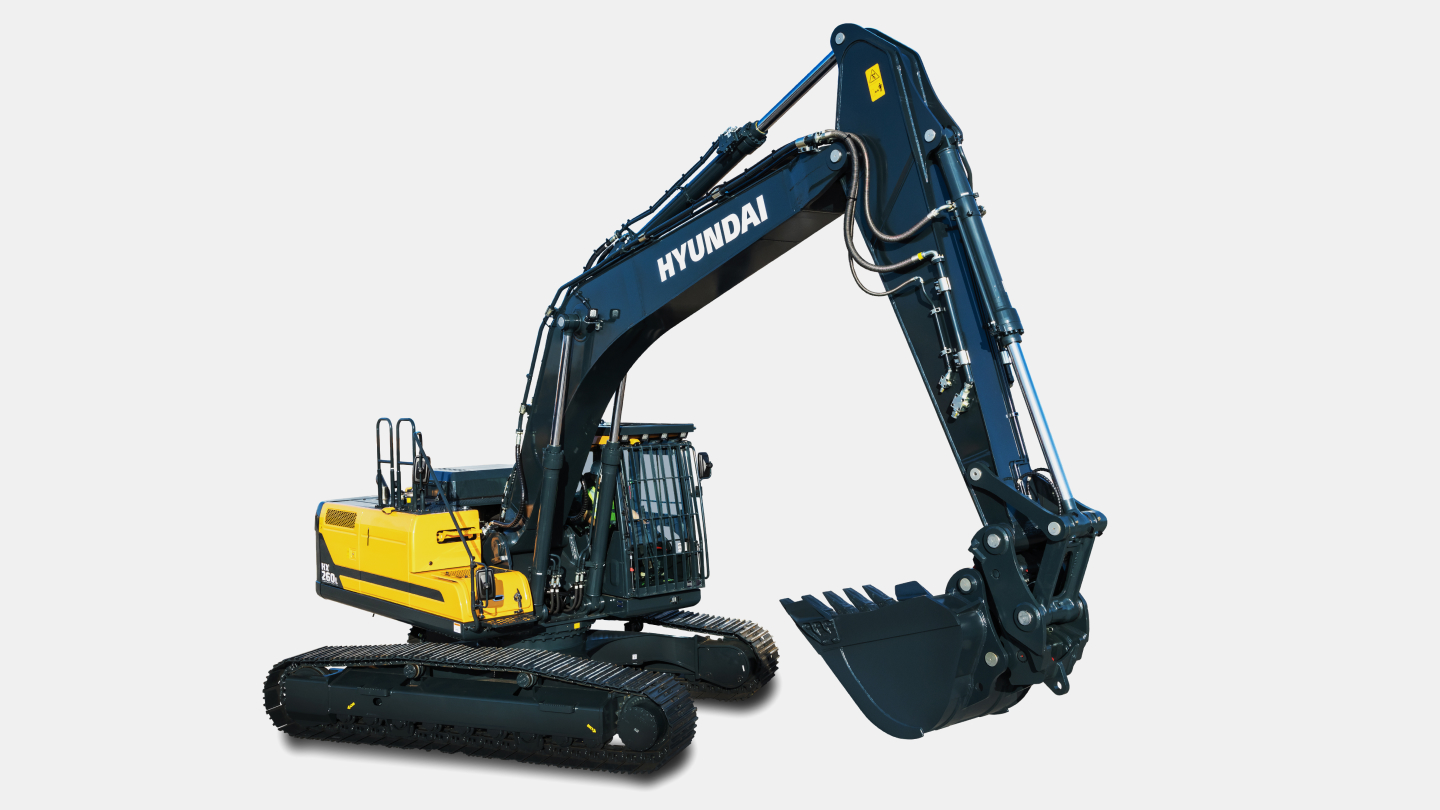

Excavators
Type
Medium Excavators
Operating Weight
26  ton
Emission
TIER 3
Rated Power
190  hp / 2,200 rpm
General
Type
Medium Excavators
Operating Weight
26  ton
Bucket Capacity
1.08  m³
Engine
Emission
TIER 3
Engine model
HYUNDAI / HE6.7
Rated Power
190  hp / 2,200 rpm
Max. Torque
929  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
2×247  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
450  ℓ
Hydraulic Tank
160  ℓ
Performance
Swing Speed
10.9  rpm
Travel Speed
5.6  km/h
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
18,200  kgf
Arm Digging Force (ISO)
12,000  kgf
Dimensions
Overall Length
10,010  mm
Overall Width
3,380  mm
Overall Height
3,230  mm
Tail Swing Radius
3,085  mm
Tumbler Distance
3,830  mm
Ground Clearance
1,110  mm
Operating Range
Boom Length
1,110  mm
Arm Length
3,050  mm
Max. Digging Reach
10,360  mm
Max. Digging Depth
10,360  mm
Max. Digging Height
10,260  mm
Max. Dumping Height
7,150  mm
Min. Swing Radius
3,450  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
