Excavators

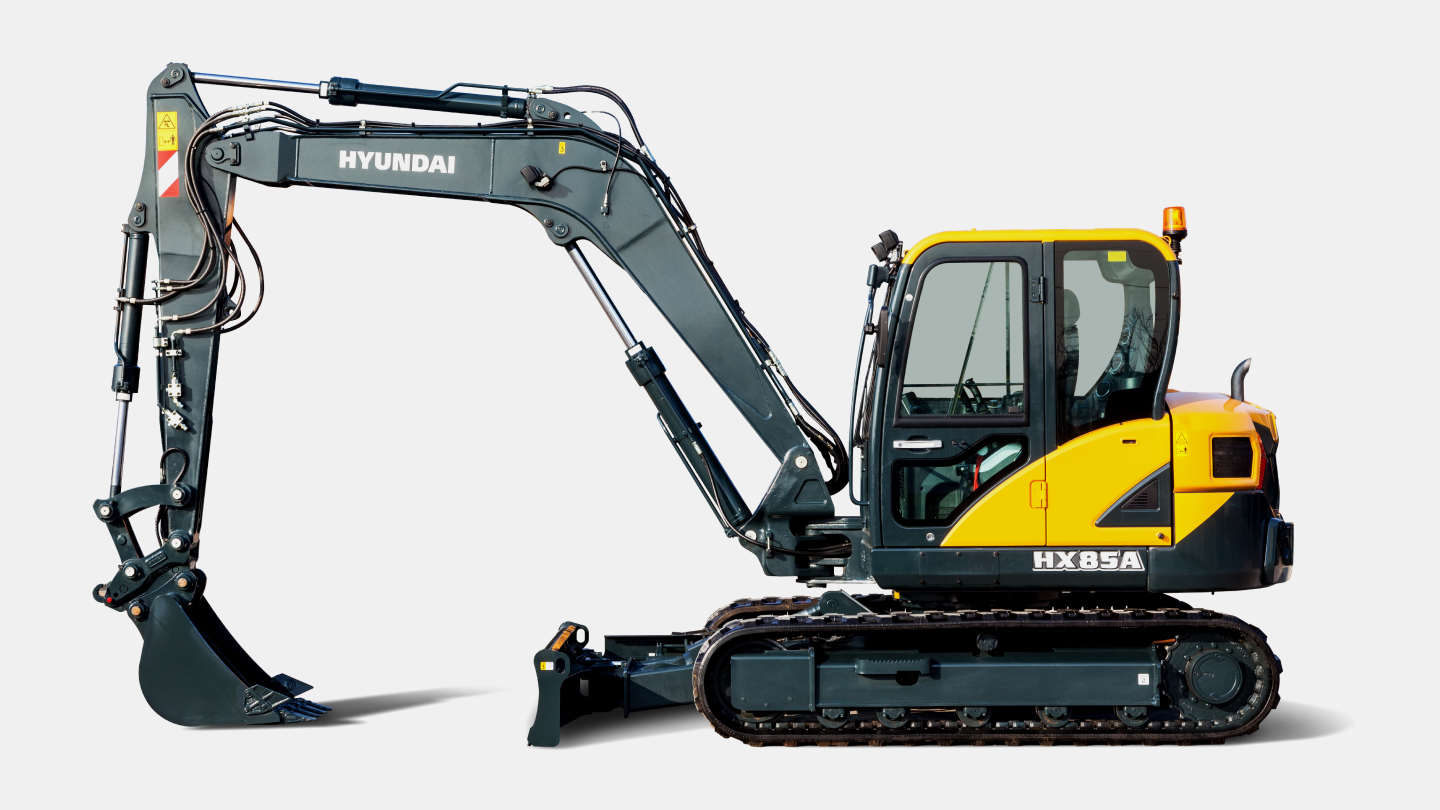

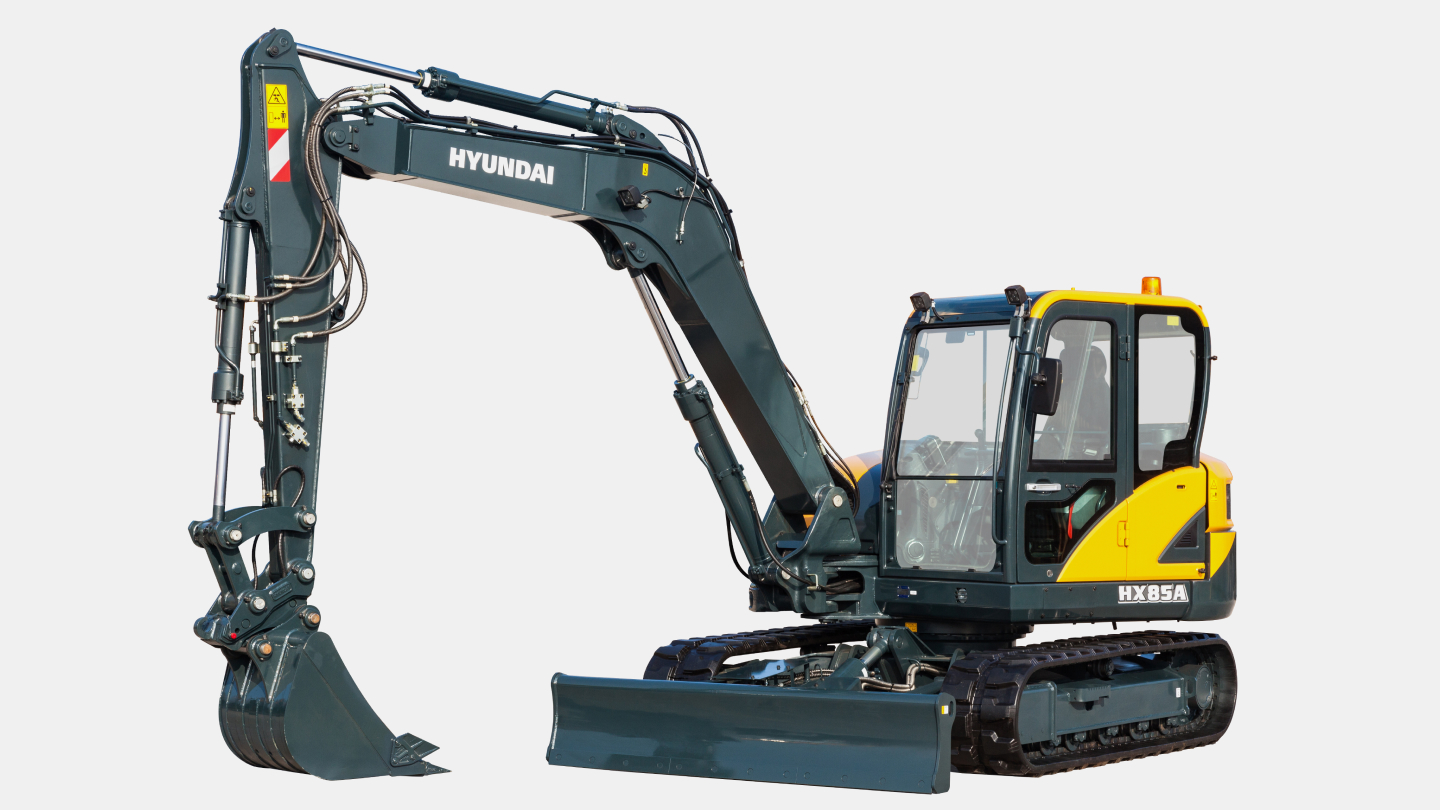

HX85A
-
Type
Compact Excavators
-
Operating Weight
8.95 ton
-
Emission
STAGE V
-
Rated Power
66.9 hp / 2,400 rpm
- English Catalog French Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
8.95 ton
Bucket Capacity
0.25 m³
-
Engine
Emission
STAGE V
Engine model
YANMAR 4TNV98C
Rated Power
66.9 hp / 2,400 rpm
Max. Torque
24 kgf·m / 1,560 rpm
-
Hydraulic System
Main Pumps Rated Flow
144 ℓ/min
Implement Circuit
280 kgf/cm²
-
Tank Capacity
Fuel Tank
115 ℓ
Hydraulic Tank
56 ℓ
-
Performance
Swing Speed
9 rpm
Travel Speed
4.6 km/h
Max. Traction Force
6,400 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
6,268 kgf
Arm Digging Force (ISO)
4,222 kgf
-
Dimensions
Overall Length
6,585 mm
Overall Width
2,300 mm
Overall Height
2,560 mm
Tail Swing Radius
1,645 mm
Tumbler Distance
2,270 mm
Ground Clearance
360 mm
-
Operating Range
Boom Length
3,550 mm
Arm Length
1,750 mm
Max. Digging Reach
7,090 mm
Max. Digging Depth
4,240 mm
Max. Digging Height
7,035 mm
Max. Dumping Height
5,000 mm
Min. Swing Radius
2,560 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
