Excavators

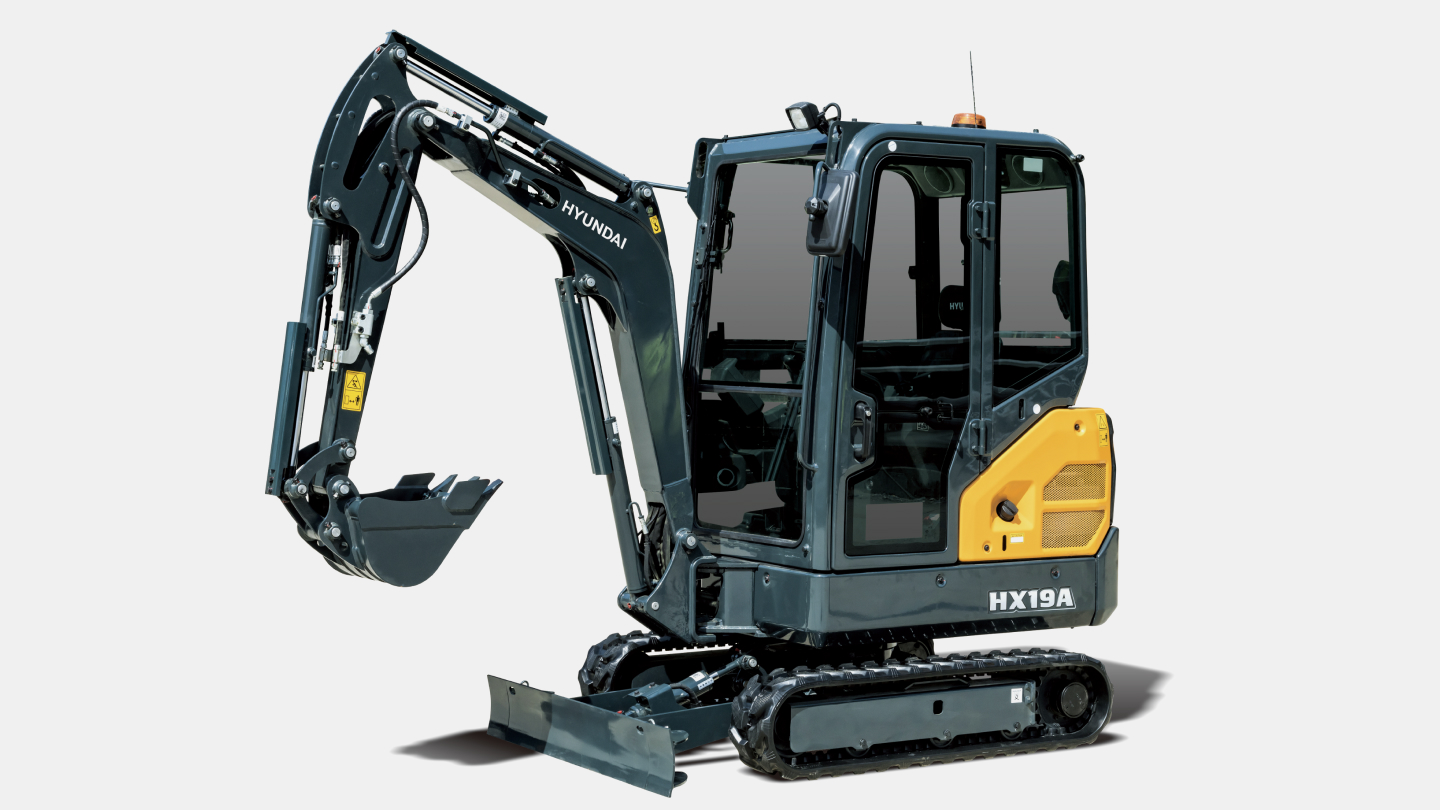

HX19A
-
Type
Compact Excavators
-
Operating Weight
1.885 ton
-
Emission
STAGE V
-
Rated Power
16.7 hp / 2,400 rpm
- English Catalog French Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
1.885 ton
Bucket Capacity
0.04 m³
-
Engine
Emission
STAGE V
Engine model
D902
Rated Power
16.7 hp / 2,400 rpm
Max. Torque
5.5677 kgf·m / 5.5677 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 x 17.3(4.5) + 10.4(2.7) ℓ/min
-
Tank Capacity
-
Performance
Swing Speed
9.2 rpm
Travel Speed
3.7 km/h
Max. Traction Force
1,420 kgf
Bucket Digging Force (ISO)
1,664 kgf
Arm Digging Force (ISO)
933 kgf
-
Dimensions
Overall Length
3,837 mm
Overall Width
994~1290 mm
Overall Height
2,275 mm
Ground Clearance
150 mm
-
Operating Range
Boom Length
1.75 mm
Arm Length
1.03 mm
Max. Digging Reach
3,940 mm
Max. Digging Depth
2,340 mm
Max. Digging Height
3,470 mm
Max. Dumping Height
2,440 mm
Min. Swing Radius
1,725 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
