HD Hyundai Construction Equipment's mobile website is optimized for portrait (vertical) view.
Excavators

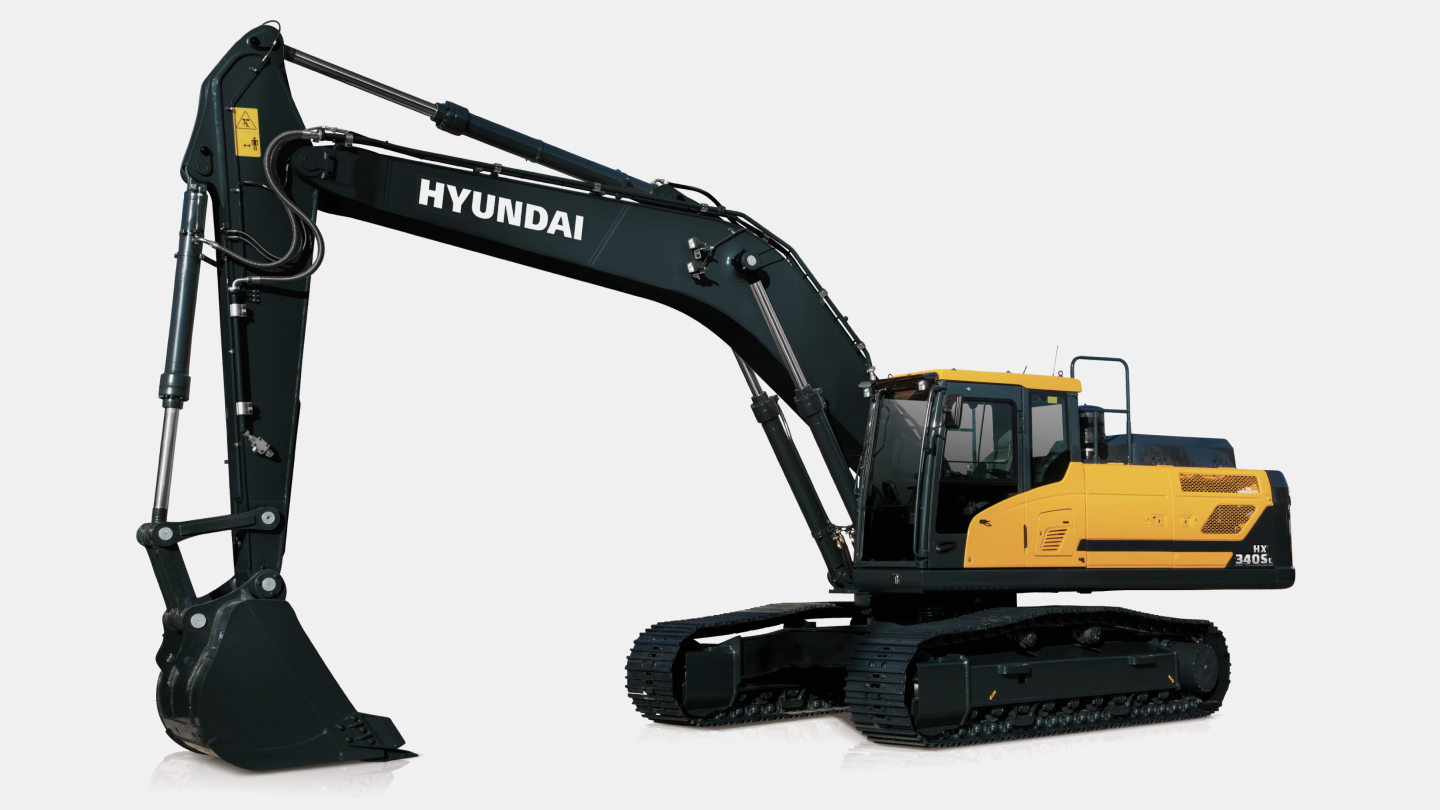

HX350AL (TURKEY)
-
Type
Large Excavators
-
Operating Weight
33.750 ton
-
Emission
STAGE V
-
Rated Power
310 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
33.750 ton
Bucket Capacity
2.1 m³1.44~2.10m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS L9
Rated Power
310 hp / 2,100 rpm
Max. Torque
156 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2X297.5 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
210 ℓ
DEF/ ADBLUE Tank
70 ℓ
-
Performance
Swing Speed
10.2 rpm
Travel Speed
6.4 km/h
Max. Traction Force
27,404 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
24,110 kgf
Arm Digging Force (ISO)
16,150 kgf
-
Dimensions
Overall Length
11,220 mm
Overall Width
3,280 mm
Overall Height
3,360 mm
Tail Swing Radius
3,570 mm
Tumbler Distance
4,030 mm
Ground Clearance
500 mm
-
Operating Range
Boom Length
6,450 mm
Arm Length
3,200 mm
Max. Digging Reach
11,150 mm
Max. Digging Depth
7,360 mm
Max. Digging Height
10,360 mm
Max. Dumping Height
7,260 mm
Min. Swing Radius
4,360 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
