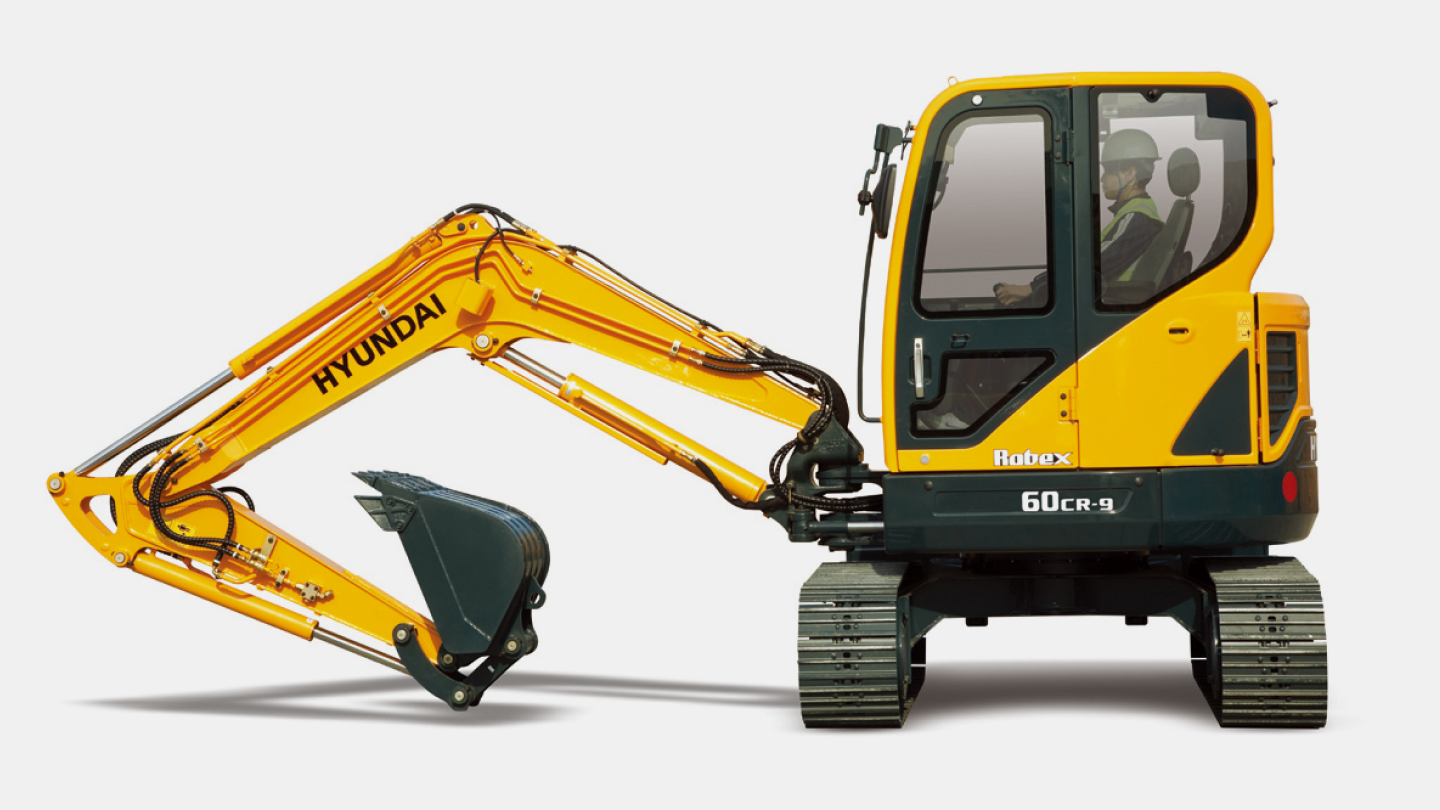

R60CR-9

  • Type

    Compact Excavators

  • Operating Weight

    5.9  ton

  • Emission

    N/A

  • Rated Power

    57  hp / 2,400 rpm

  • English Catalog French Catalog

Specifications

  • General

    Type

    Compact Excavators

    Operating Weight

    5.9  ton

    Bucket Capacity

    0.18  m³

  • Engine

    Emission

    N/A

    Engine model

    YANMAR 4TNV98

    Rated Power

    57  hp / 2,400 rpm

    Max. Torque

    20.5  kgf·m / 1,550 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x57.8  ℓ/min

    Implement Circuit

    220  kgf/cm²

  • Tank Capacity

    Fuel Tank

    82  ℓ

    Hydraulic Tank

    70  ℓ

  • Performance

    Swing Speed

    9.3  rpm

    Travel Speed

    4  km/h

    Max. Traction Force

    5,300  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    4,170  kgf

    Arm Digging Force (ISO)

    2,700  kgf

  • Dimensions

    Overall Length

    5,600  mm

    Overall Width

    2,000  mm

    Overall Height

    2,550  mm

    Tail Swing Radius

    1,080  mm

    Tumbler Distance

    1,990  mm

    Ground Clearance

    380  mm

  • Operating Range

    Boom Length

    2,900  mm

    Arm Length

    1,480  mm

    Max. Digging Reach

    6,150  mm

    Max. Digging Depth

    3,570  mm

    Max. Digging Height

    5,680  mm

    Max. Dumping Height

    3,930  mm

    Min. Swing Radius

    2,420  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
