Excavators

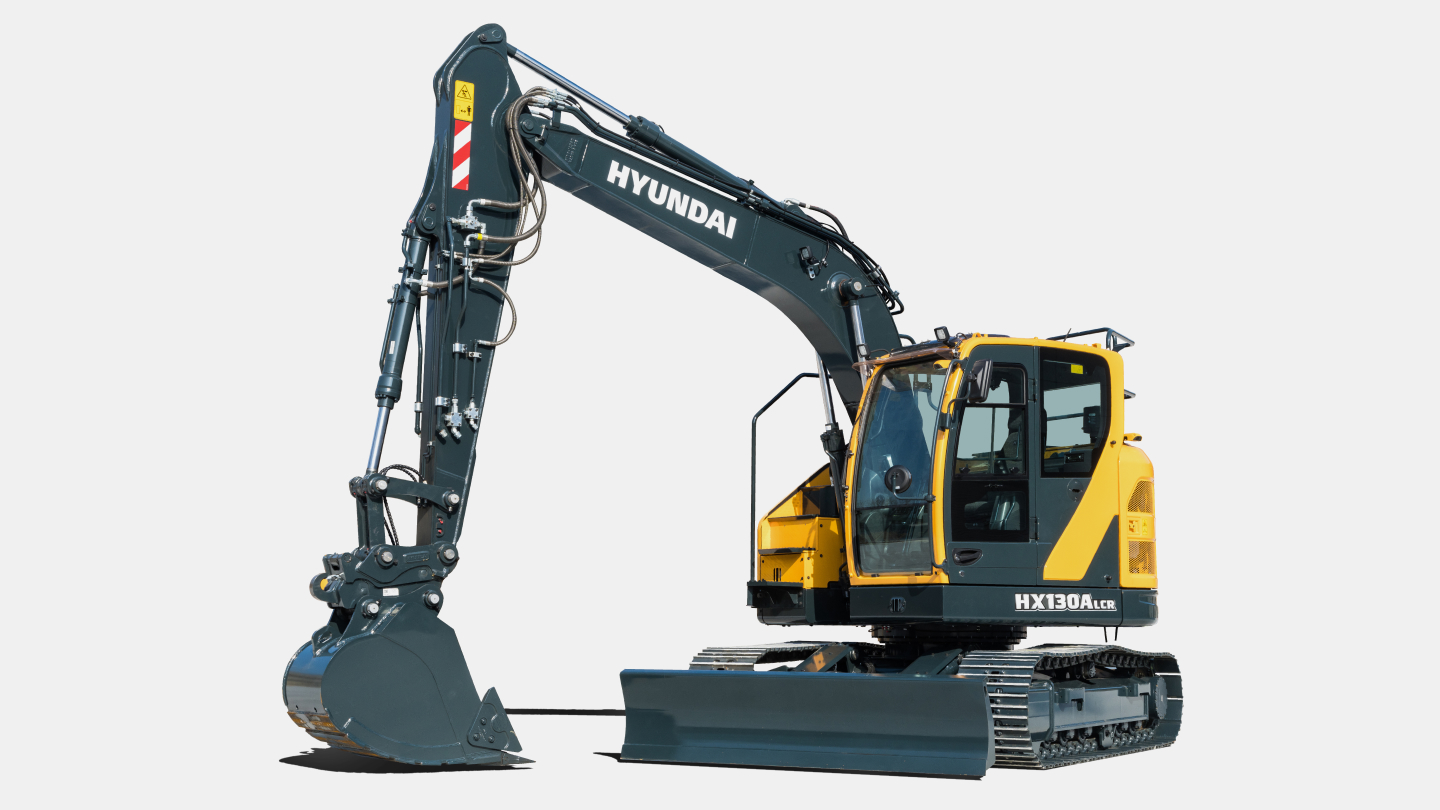

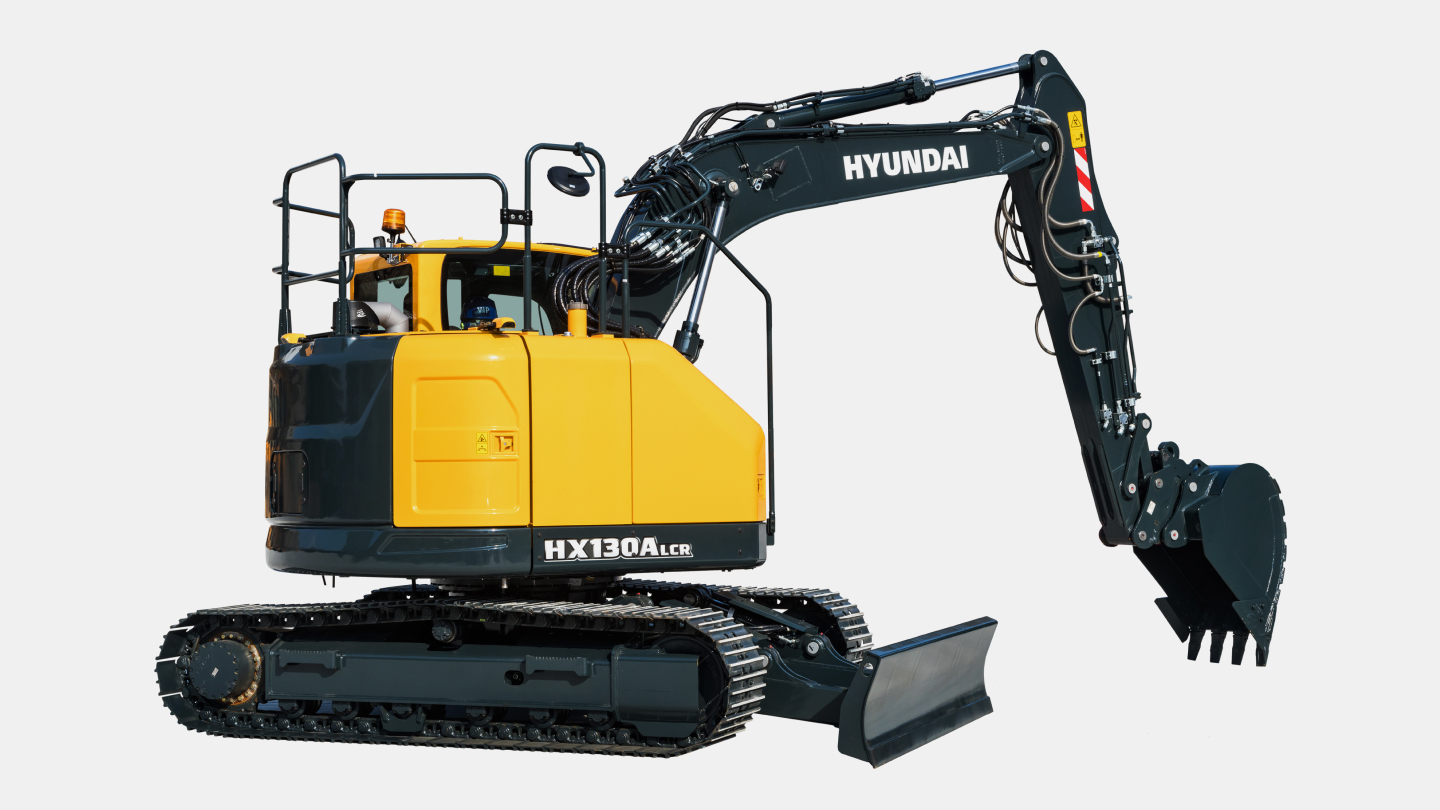

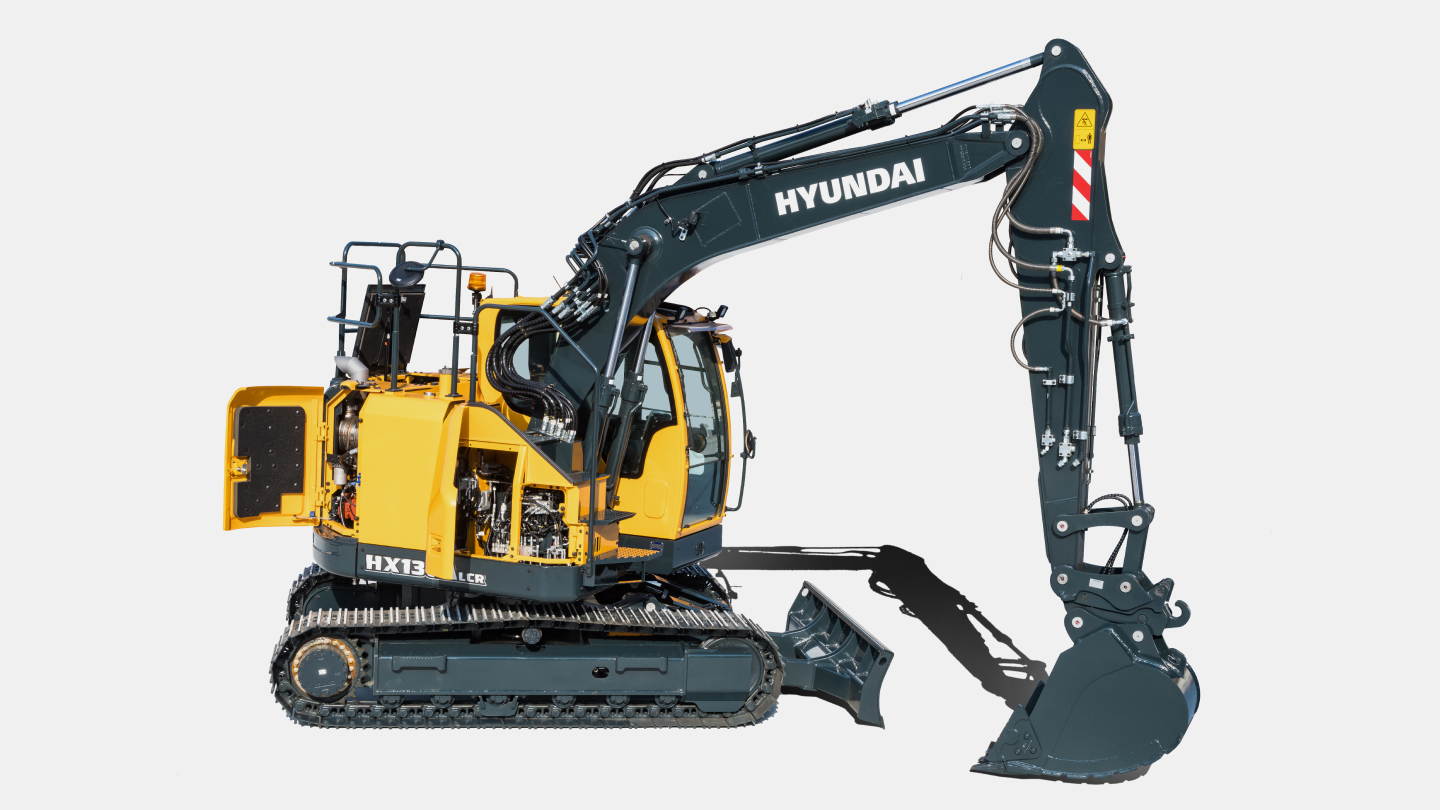

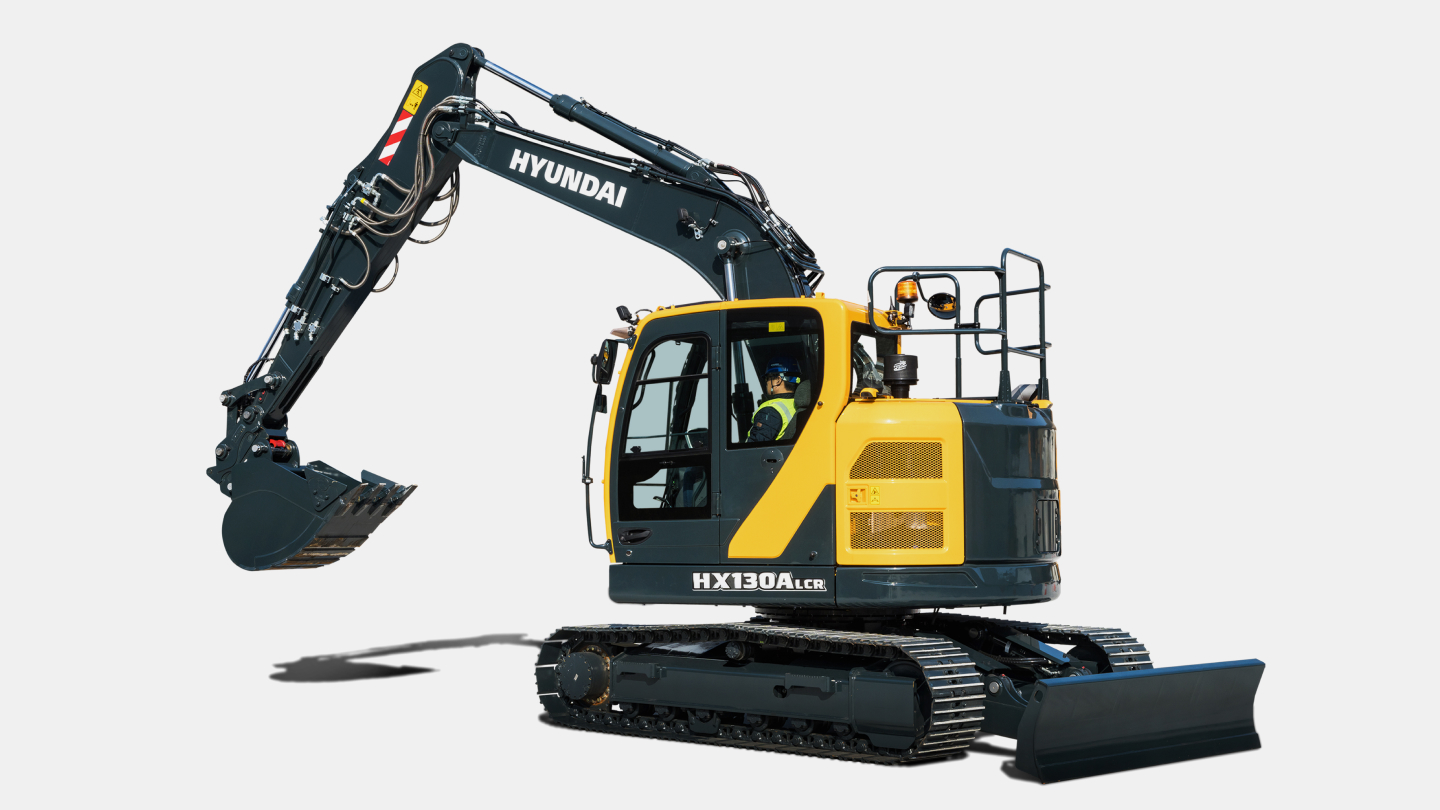

HX130A LCR
-
Type
Medium Excavators
-
Operating Weight
13.44 ton
-
Emission
STAGE V
-
Rated Power
74 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
13.44 ton
Bucket Capacity
0.61 m³0.50~0.61m³
-
Engine
Emission
STAGE V
Engine model
Cummins F3.8
Rated Power
74 hp / 2,200 rpm
Max. Torque
40.8 kgf·m / 1,300 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 × 123.5 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
240 ℓ
Hydraulic Tank
96 ℓ
-
Performance
Swing Speed
12.4 rpm
Travel Speed
5.2 km/h
Max. Traction Force
11,948 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
9,990 kgf[10899]kgf
Arm Digging Force (ISO)
5,877 kgf[6411]kgf
-
Dimensions
Overall Length
6,850 mm
Overall Width
2,590 mm
Overall Height
2,760 mm
Tail Swing Radius
1,520 mm
Tumbler Distance
2,780 mm
Ground Clearance
435 mm
-
Operating Range
Boom Length
4,300 mm
Arm Length
2,260 mm
Max. Digging Reach
7,745 mm
Max. Digging Depth
5,090 mm
Max. Digging Height
8,165 mm
Max. Dumping Height
5,710 mm
Min. Swing Radius
2,340 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
