Excavators

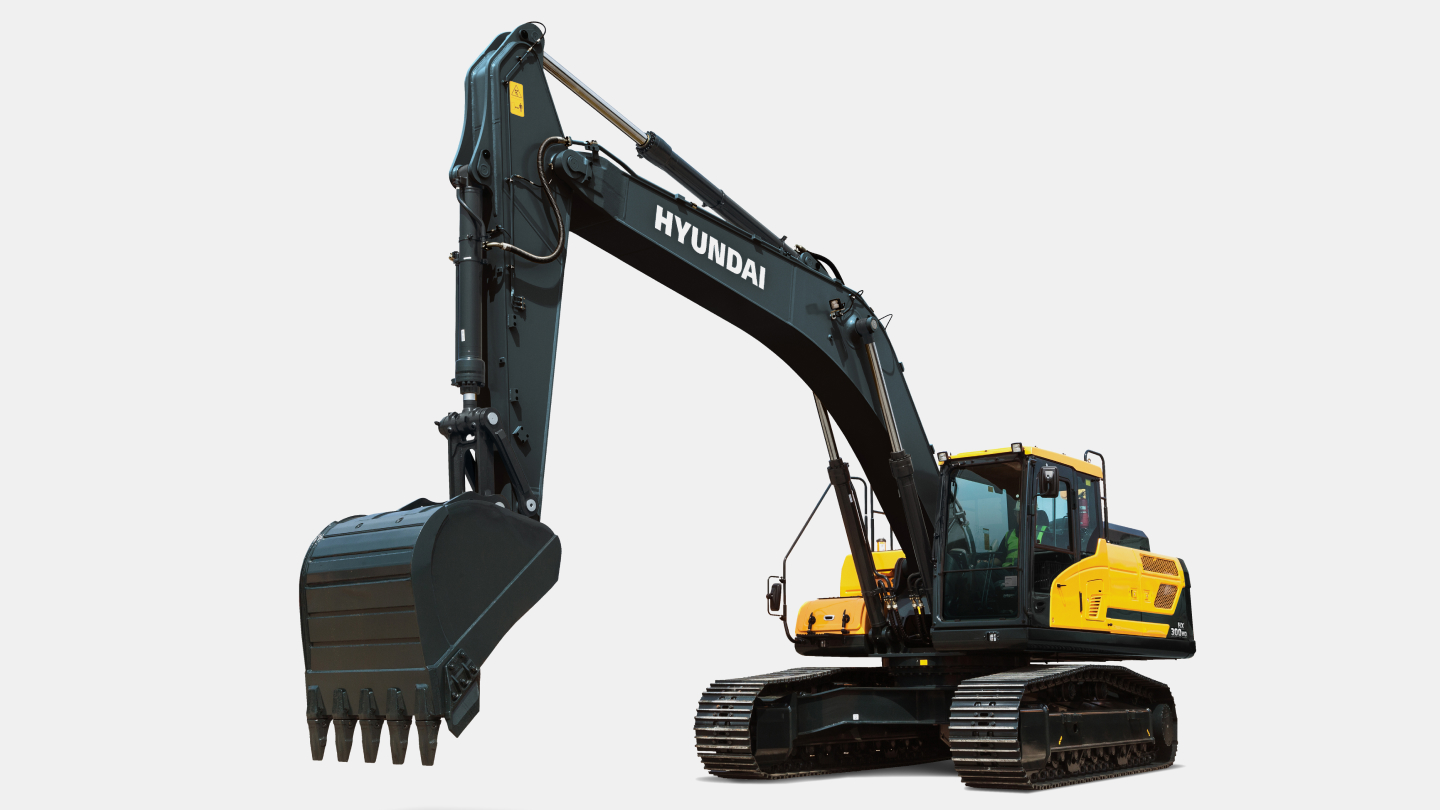

HX300HD(CIS)
-
Type
Large Excavators
-
Operating Weight
30.2 ton
-
Emission
N/A
-
Rated Power
182 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
30.2 ton
Bucket Capacity
1.50 m³
-
Engine
Emission
N/A
Engine model
HYUNDAI HM8.3
Rated Power
182 hp / 2,200 rpm
Max. Torque
117 kgf·m / 1,300 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x285 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
500 ℓ
Hydraulic Tank
190 ℓ
-
Performance
Swing Speed
12.2 rpm
Travel Speed
6.1 km/h
Max. Traction Force
27,400 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
21,380 kgf
Arm Digging Force (ISO)
15,160 kgf
-
Dimensions
Overall Length
10,740 mm
Overall Width
3,200 mm
Overall Height
3,320 mm
Tail Swing Radius
3,345 mm
Tumbler Distance
4,030 mm
Ground Clearance
500 mm
-
Operating Range
Boom Length
6,250 mm
Arm Length
3,050 mm
Max. Digging Reach
10,810 mm
Max. Digging Depth
7,330 mm
Max. Digging Height
10,200 mm
Max. Dumping Height
7,150 mm
Min. Swing Radius
4,270 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
