Excavators

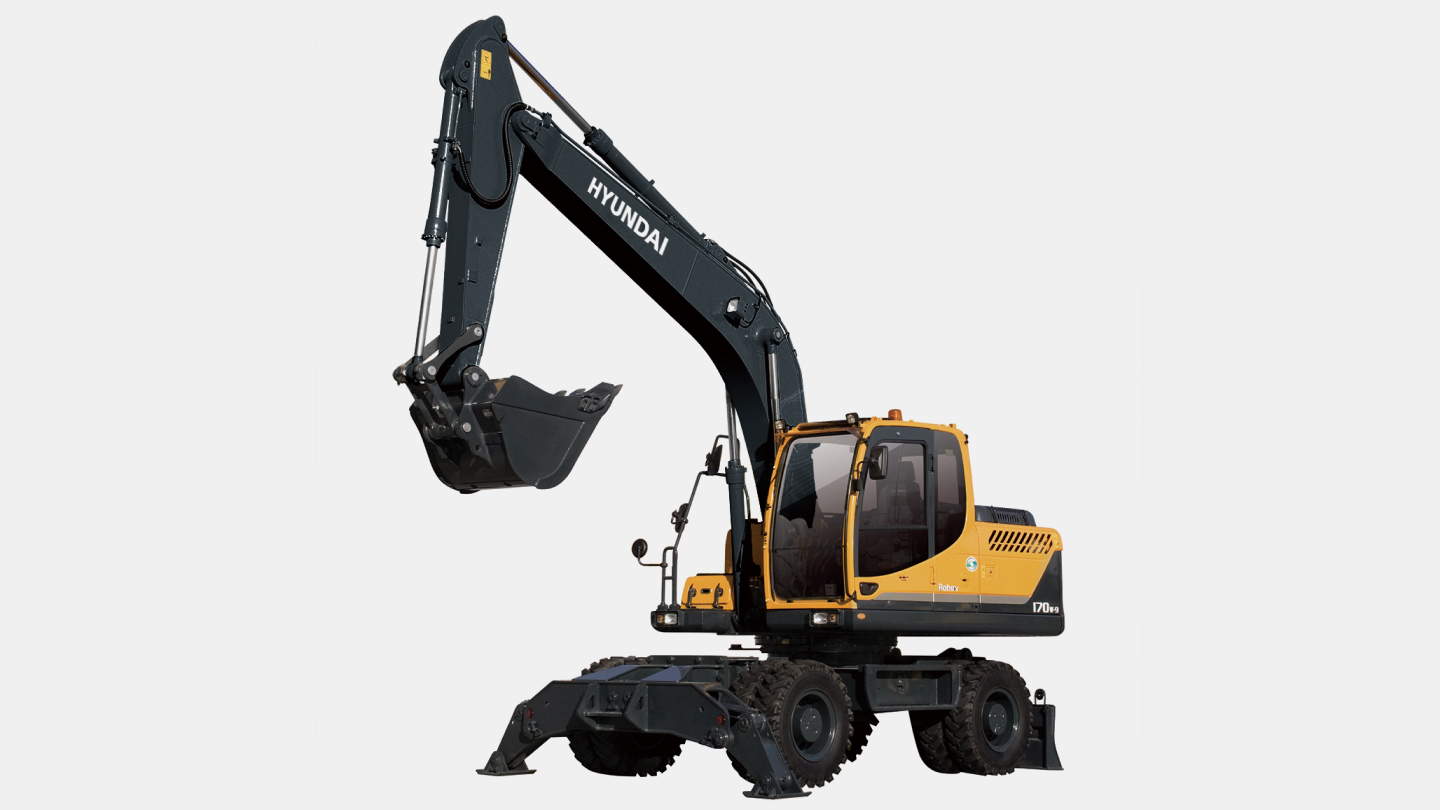

R170W-9
-
Type
Wheel Excavators
-
Operating Weight
17.3 ton
-
Emission
TIER 3
-
Rated Power
163 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
17.3 ton
Bucket Capacity
0.76 m³
-
Engine
Emission
TIER 3
Engine model
HYUNDAI HE6.7
Rated Power
163 hp / 2,100 rpm
Max. Torque
75 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x168 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
160 ℓ
-
Performance
Swing Speed
11 rpm
Travel Speed
36 km/h
Max. Traction Force
11,000 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
13,680 kgf
Arm Digging Force (ISO)
10,080 kgf
-
Dimensions
Overall Length
8,650 mm
Overall Width
2,500 mm
Overall Height
3,610 mm
-
Operating Range
Boom Length
5,100 mm
Arm Length
2,200 mm
Max. Digging Reach
8,690 mm
Max. Digging Depth
5,420 mm
Max. Digging Height
8,990 mm
Max. Dumping Height
6,350 mm
Min. Swing Radius
3,180 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
