Excavators

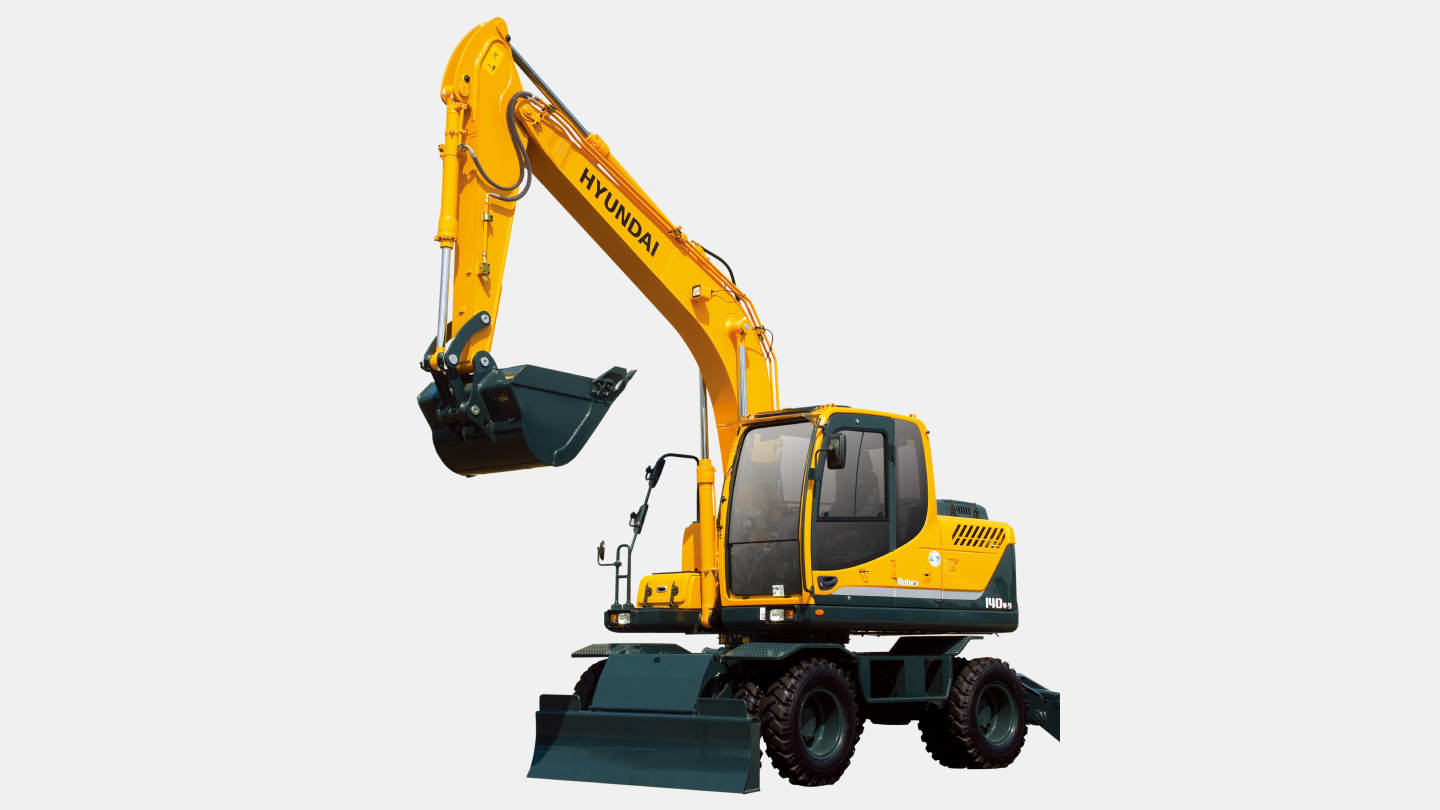

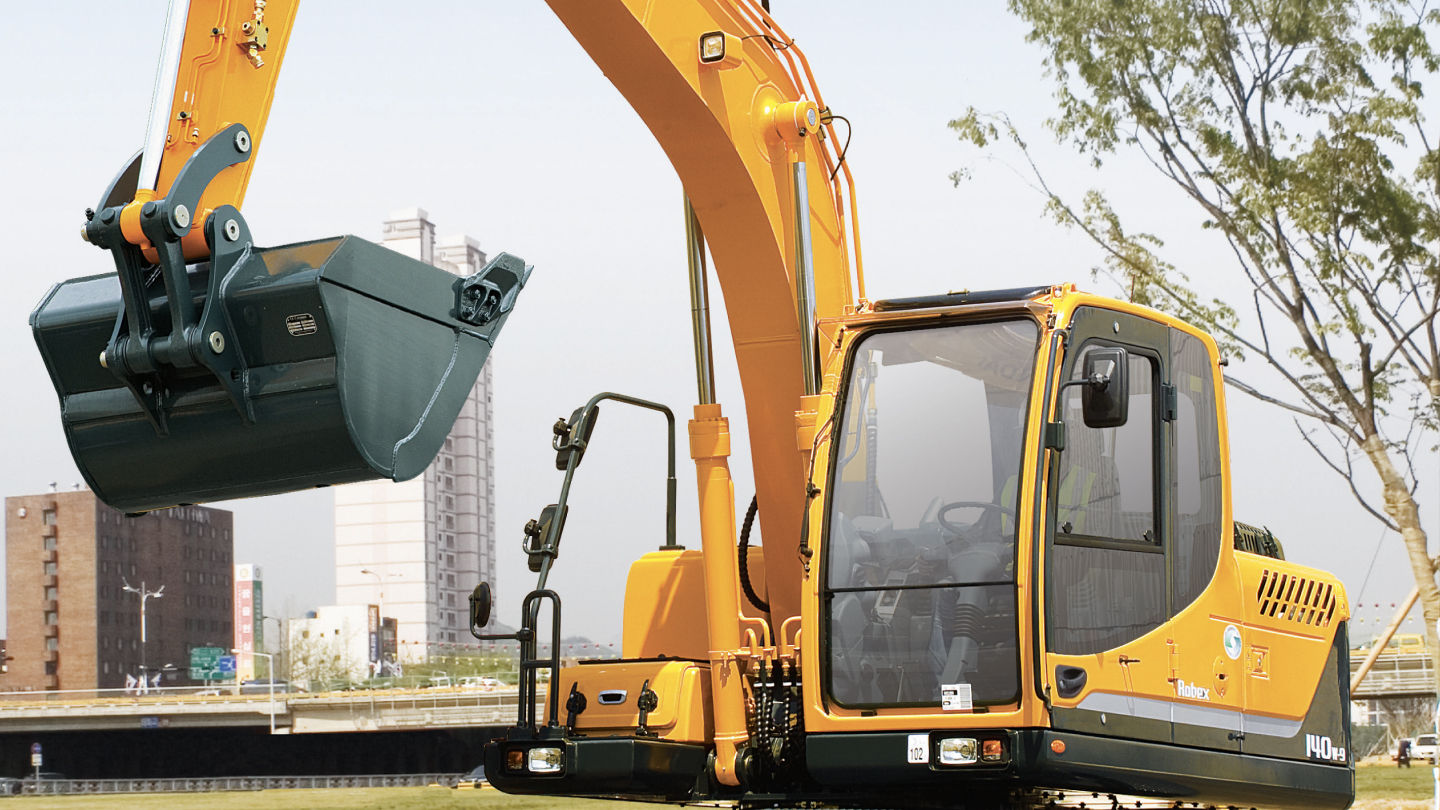

R140W-9
-
Type
Wheel Excavators
-
Operating Weight
13.7 ton
-
Emission
TIER 3
-
Rated Power
146 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
13.7 ton
Bucket Capacity
0.58 m³
-

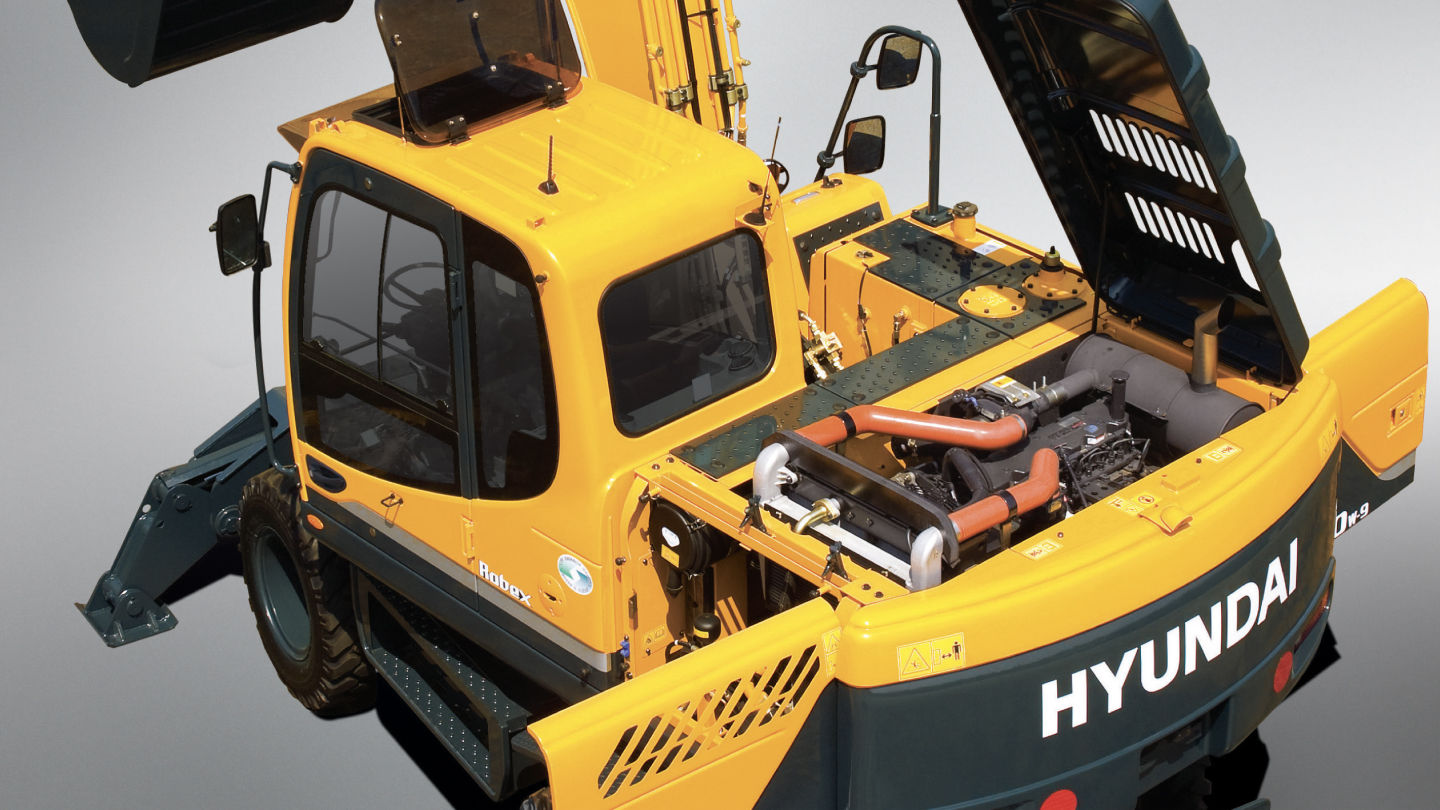

Engine
Emission
TIER 3
Engine model
HYUNDAI HE6.7
Rated Power
146 hp / 2,100 rpm
Max. Torque
59.7 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x172 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
124 ℓ
-
Performance
Swing Speed
11.6 rpm
Travel Speed
37 km/h
Max. Traction Force
8,500 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
11,290 kgf
Arm Digging Force (ISO)
8,580 kgf
-
Dimensions
Overall Length
7,820 mm
Overall Width
2,500 mm
Overall Height
3,500 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,100 mm
Max. Digging Reach
7,920 mm
Max. Digging Depth
4,850 mm
Max. Digging Height
8,470 mm
Max. Dumping Height
6,040 mm
Min. Swing Radius
2,670 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
