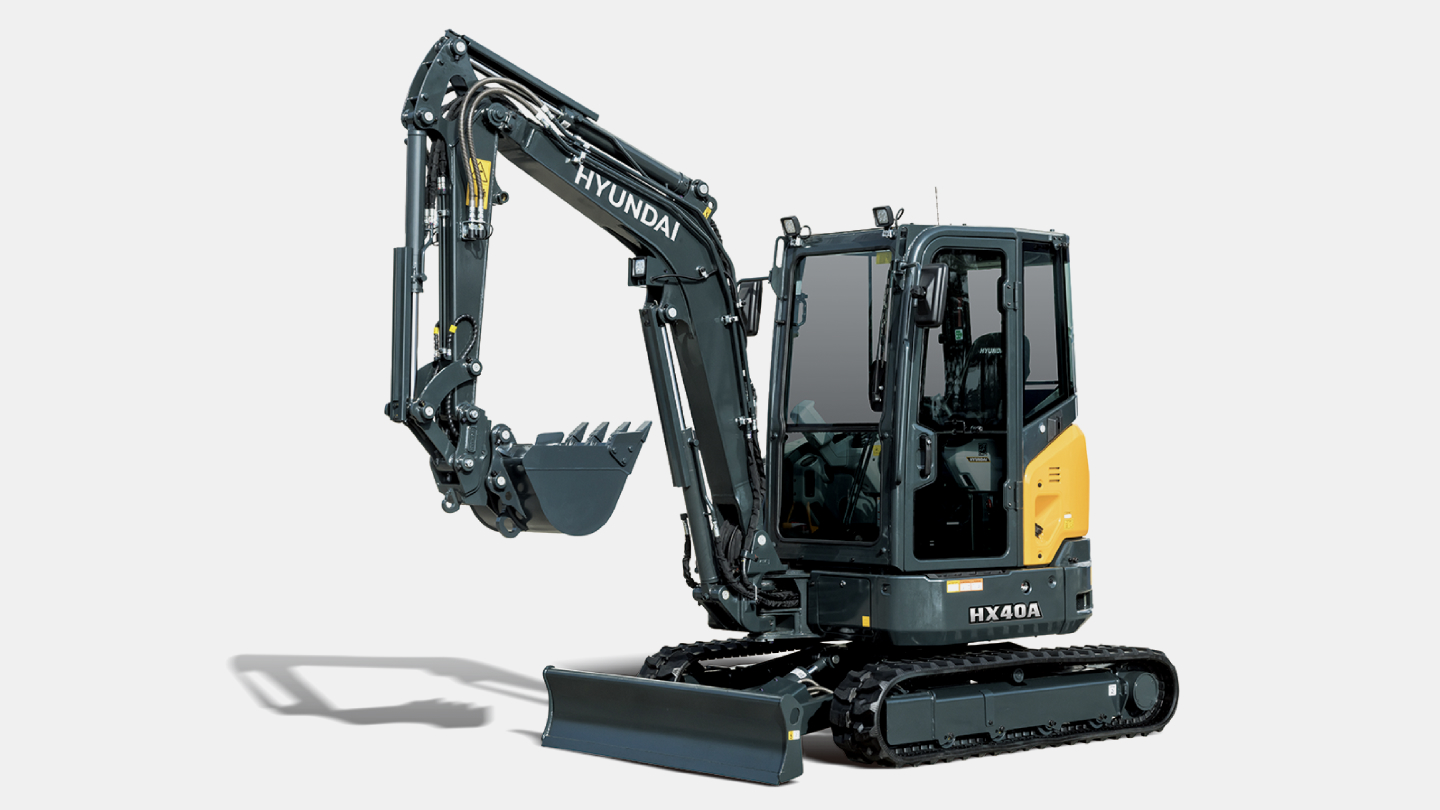

HX40A

  • Type

    Compact Excavators

  • Operating Weight

    4.390  ton

  • Emission

    STAGE V

  • Rated Power

    39.0  hp / 2,200 rpm

  • English Catalog French Catalog

Specifications

  • General

    Type

    Compact Excavators

    Operating Weight

    4.390  ton

    Bucket Capacity

    0.11  m³

  • Engine

    Emission

    STAGE V

    Engine model

    4TNV88C

    Rated Power

    39.0  hp / 2,200 rpm

    Max. Torque

    14.7  kgf·m / . rpm

  • Hydraulic System

    Main Pumps Rated Flow

    99.0  ℓ/min

    Implement Circuit

    254  kgf/cm²

  • Tank Capacity

    Fuel Tank

    66.8  ℓ

    Hydraulic Tank

    44  ℓ

  • Performance

    Swing Speed

    9.9  rpm

    Travel Speed

    3.3  km/h

    Max. Traction Force

    3,013  kgf

    Bucket Digging Force (ISO)

    4,461  kgf

    Arm Digging Force (ISO)

    2,060  kgf

  • Dimensions

    Overall Length

    5,425  mm

    Overall Width

    1,740  mm

    Overall Height

    2,525  mm

    Ground Clearance

    185  mm

  • Operating Range

    Boom Length

    2,600  mm

    Arm Length

    1,600  mm

    Max. Digging Reach

    5,525  mm

    Max. Digging Depth

    3,420  mm

    Max. Digging Height

    5,360  mm

    Max. Dumping Height

    3,945  mm

    Min. Swing Radius

    1,300  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
