Excavators

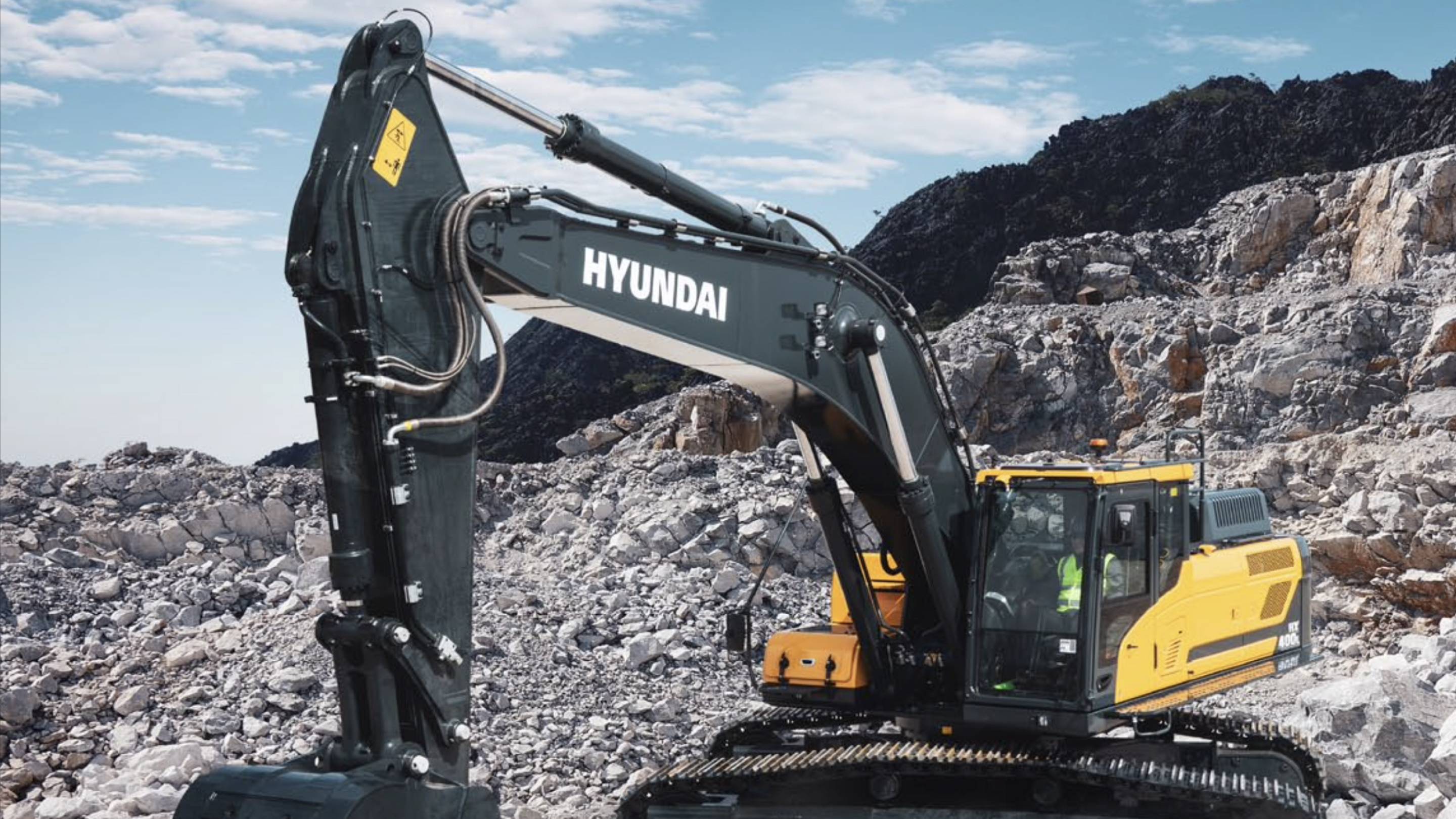

HX400L(T3)
-
Type
Large Excavators
-
Operating Weight
38.42 ton
-
Emission
TIER 3
-
Rated Power
280 hp / 2,000 rpm
- English Catalog French Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
38.42 ton
Bucket Capacity
2.5 m³1.46 ~ 2.50m³
-
Engine
Emission
TIER 3
Engine model
HYUNDAI / HE8.9
Rated Power
280 hp / 2,000 rpm
-
Hydraulic System
Main Pumps Rated Flow
2×315 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
210 ℓ
-
Performance
Swing Speed
9.6 rpm
Travel Speed
5.3 km/h
Max. Traction Force
31,613 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
25,530 kgf
Arm Digging Force (ISO)
19,310 kgf
-
Dimensions
Overall Length
11,410 mm
Overall Width
3,540 mm
Overall Height
3,560 mm
Tail Swing Radius
3,620 mm
Tumbler Distance
4,340 mm
Ground Clearance
555 mm
-
Operating Range
Boom Length
6,500 mm
Arm Length
3,200 mm
Max. Digging Reach
11,050 mm
Max. Digging Depth
7,360 mm
Max. Digging Height
10,680 mm
Max. Dumping Height
7,480 mm
Min. Swing Radius
4,310 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
