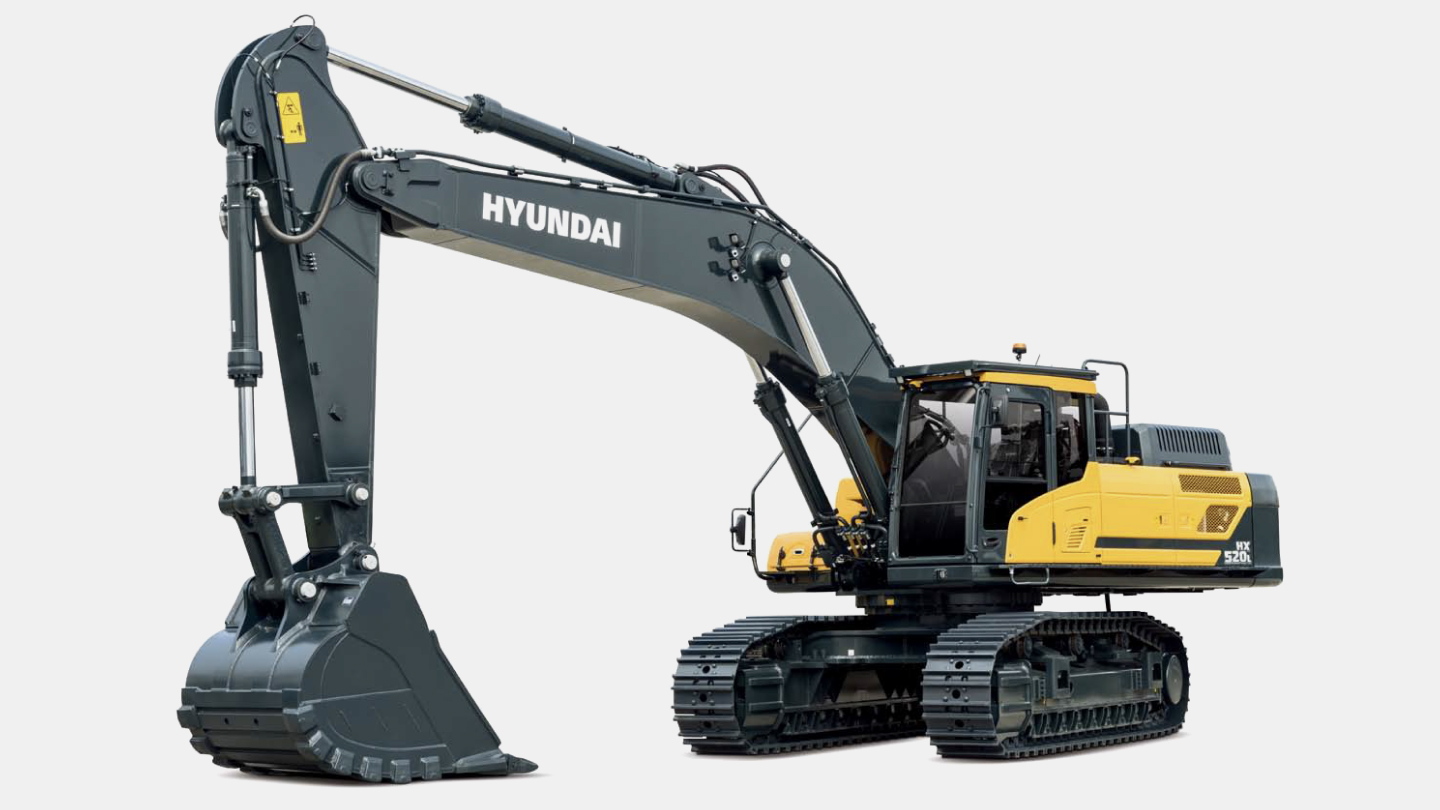

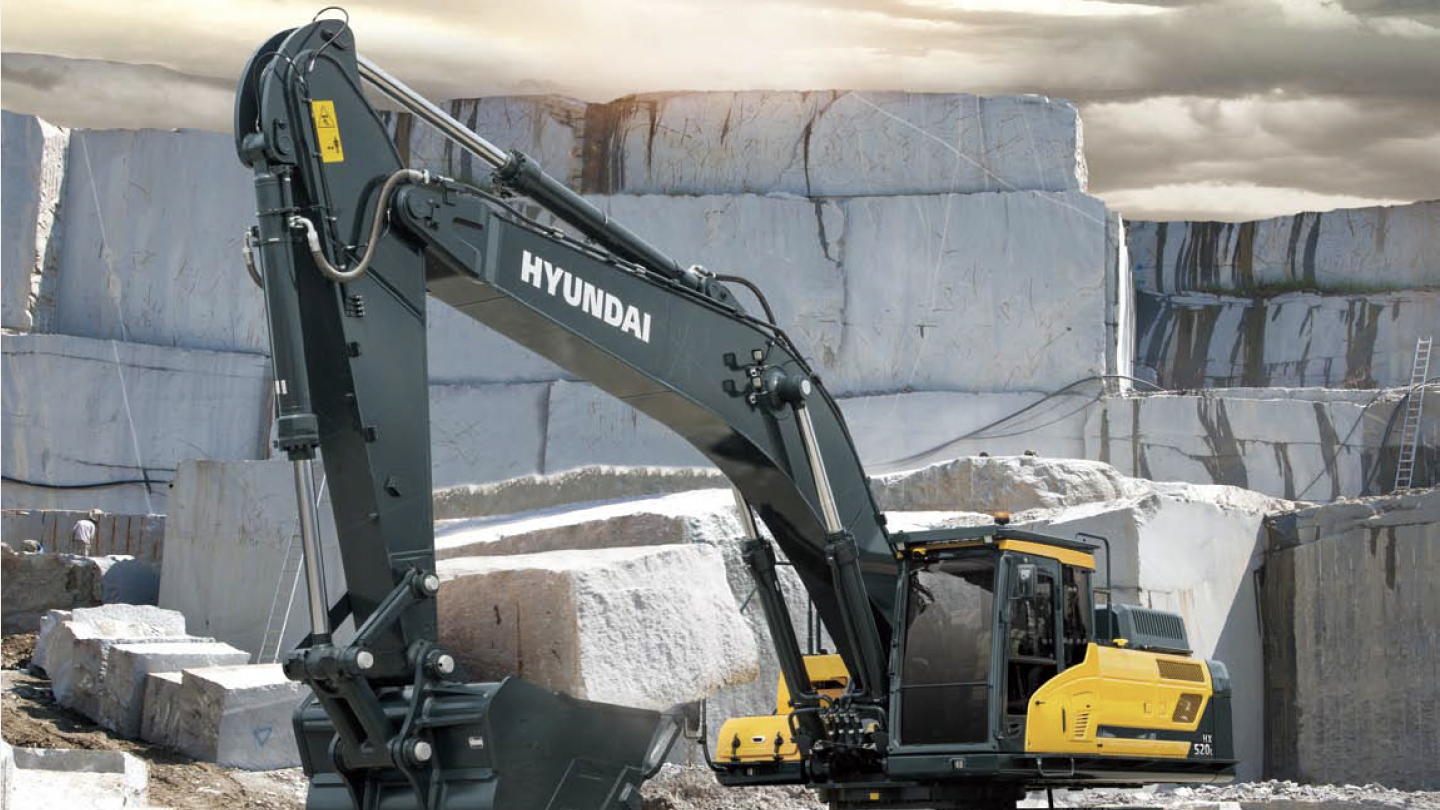

HX520L(T3)

  • Type

    Large Excavators

  • Operating Weight

    52.37  ton

  • Emission

    TIER 3

  • Rated Power

    335  hp / 2,100 rpm

  • Catalog

Specifications

  • General

    Type

    Large Excavators

    Operating Weight

    52.37  ton

    Bucket Capacity

    3.2  m³1.0~3.2m³

  • Engine

    Emission

    TIER 3

    Engine model

    CUMMINS / X12

    Rated Power

    335  hp / 2,100 rpm

    Max. Torque

    170.7  kgf·m / 1,400 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x394  ℓ/min

    Implement Circuit

    330  kgf/cm²

  • Tank Capacity

    Fuel Tank

    660  ℓ

    Hydraulic Tank

    275  ℓ

  • Performance

    Swing Speed

    8.5  rpm

    Travel Speed

    5.3  km/h

    Max. Traction Force

    39,674  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    28,500  kgf

    Arm Digging Force (ISO)

    20,900  kgf

  • Dimensions

    Overall Length

    12,160  mm

    Overall Width

    3,640  mm

    Overall Height

    3,420  mm

    Tail Swing Radius

    3,800  mm

    Tumbler Distance

    4,470  mm

    Ground Clearance

    1,445  mm

  • Operating Range

    Boom Length

    7,060  mm

    Arm Length

    3,380  mm

    Max. Digging Reach

    12,060  mm

    Max. Digging Depth

    7,650  mm

    Max. Digging Height

    11,140  mm

    Max. Dumping Height

    7,790  mm

    Min. Swing Radius

    4,870  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
