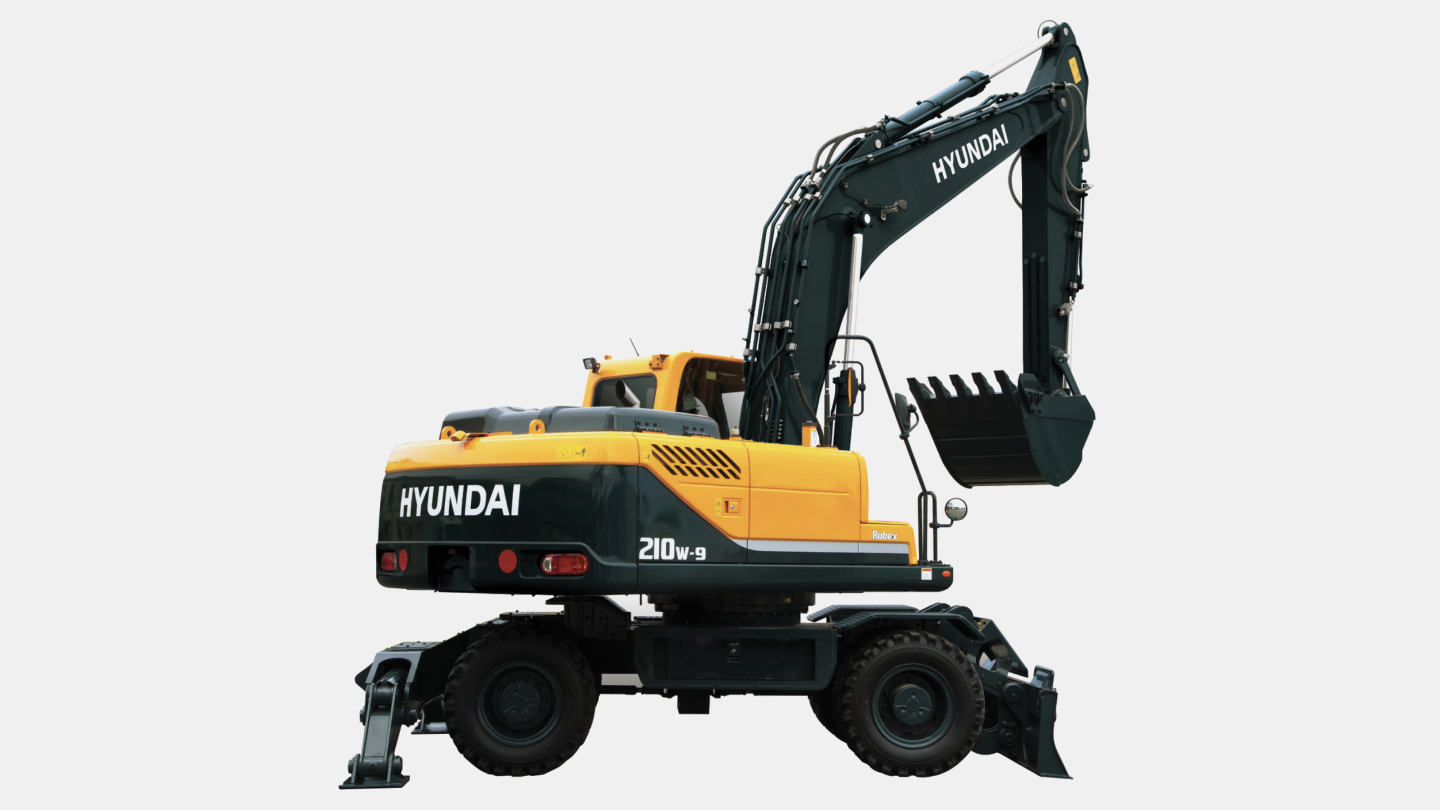

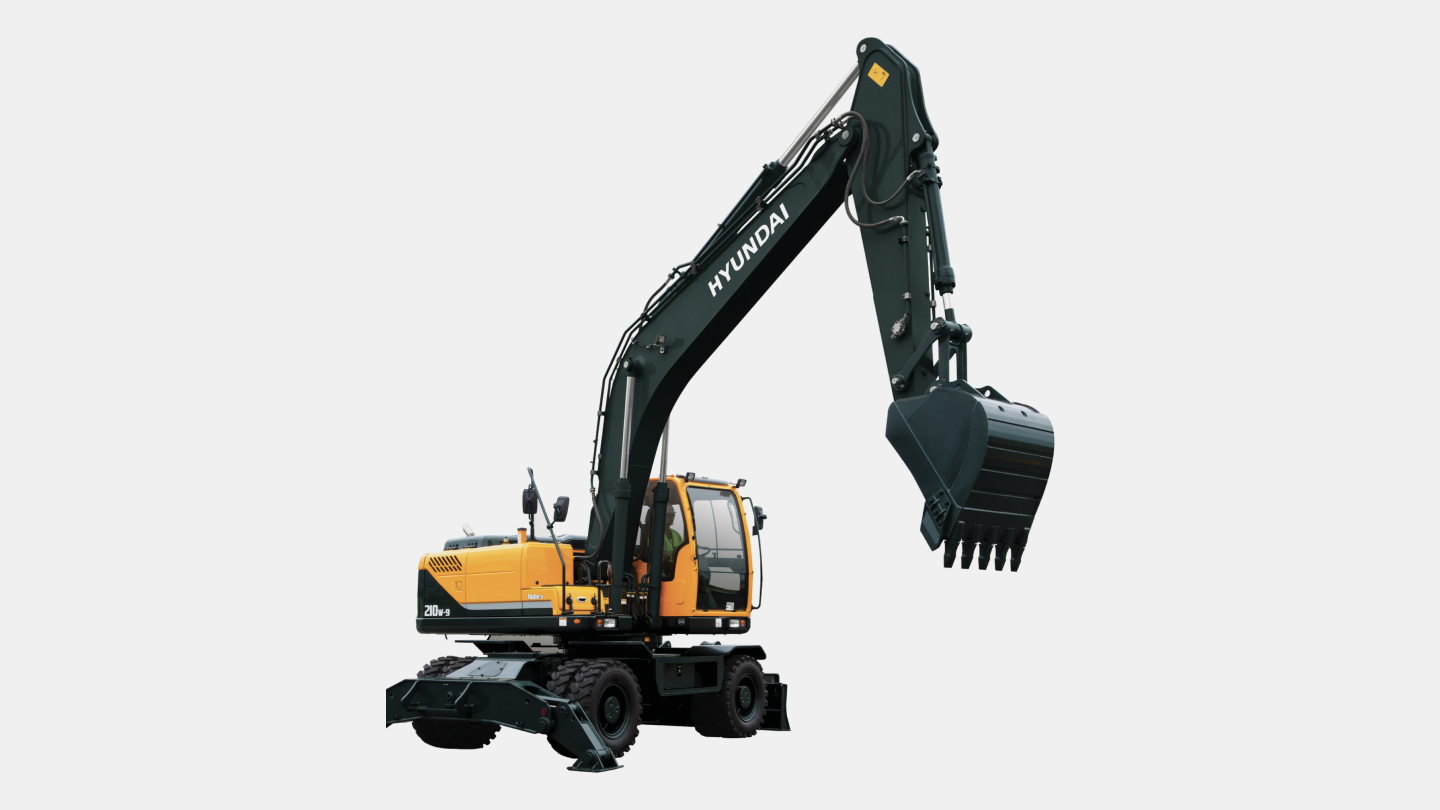

Excavators
Type
Wheel Excavators
Operating Weight
20.5  ton
Emission
TIER 3
Rated Power
176  hp / 1,900 rpm
General
Type
Wheel Excavators
Operating Weight
20.5  ton
Bucket Capacity
0.8  m³
Engine
Emission
TIER 3
Engine model
HYUNDAI HE6.7
Rated Power
176  hp / 1,900 rpm
Max. Torque
82  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
2x228  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
310  ℓ
Hydraulic Tank
165  ℓ
Performance
Swing Speed
10.3  rpm
Travel Speed
35  km/h
Max. Traction Force
11,900  kgf
Max. Gradeability
31.5  deg
Bucket Digging Force (ISO)
16,830  kgf
Arm Digging Force (ISO)
11,830  kgf
Dimensions
Overall Length
9,500  mm
Overall Width
3,782  mm
Overall Height
3,150  mm
Operating Range
Boom Length
5,650  mm
Arm Length
2,920  mm
Max. Digging Reach
9,960  mm
Max. Digging Depth
6,380  mm
Max. Digging Height
10,000  mm
Max. Dumping Height
7,160  mm
Min. Swing Radius
3,580  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
