Excavators

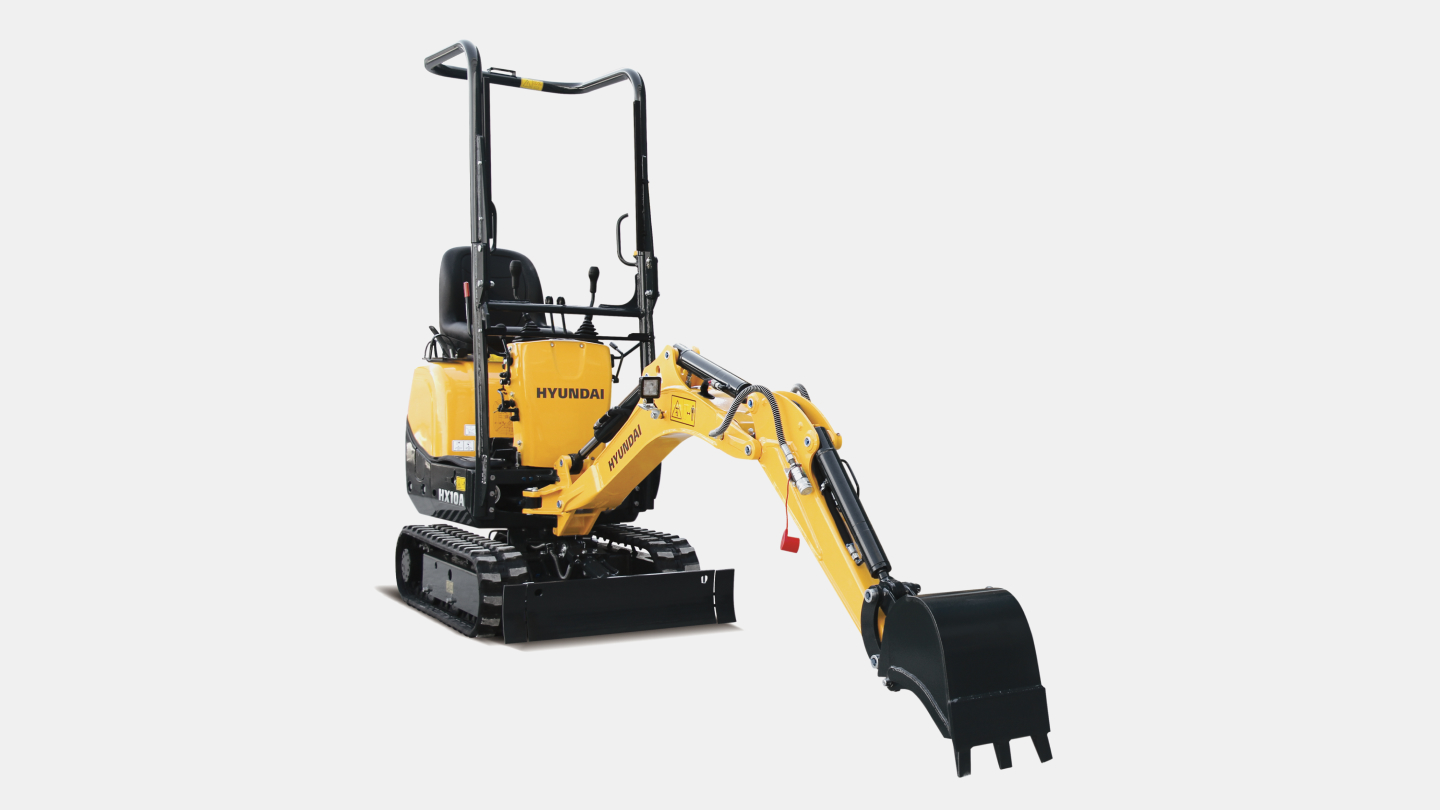

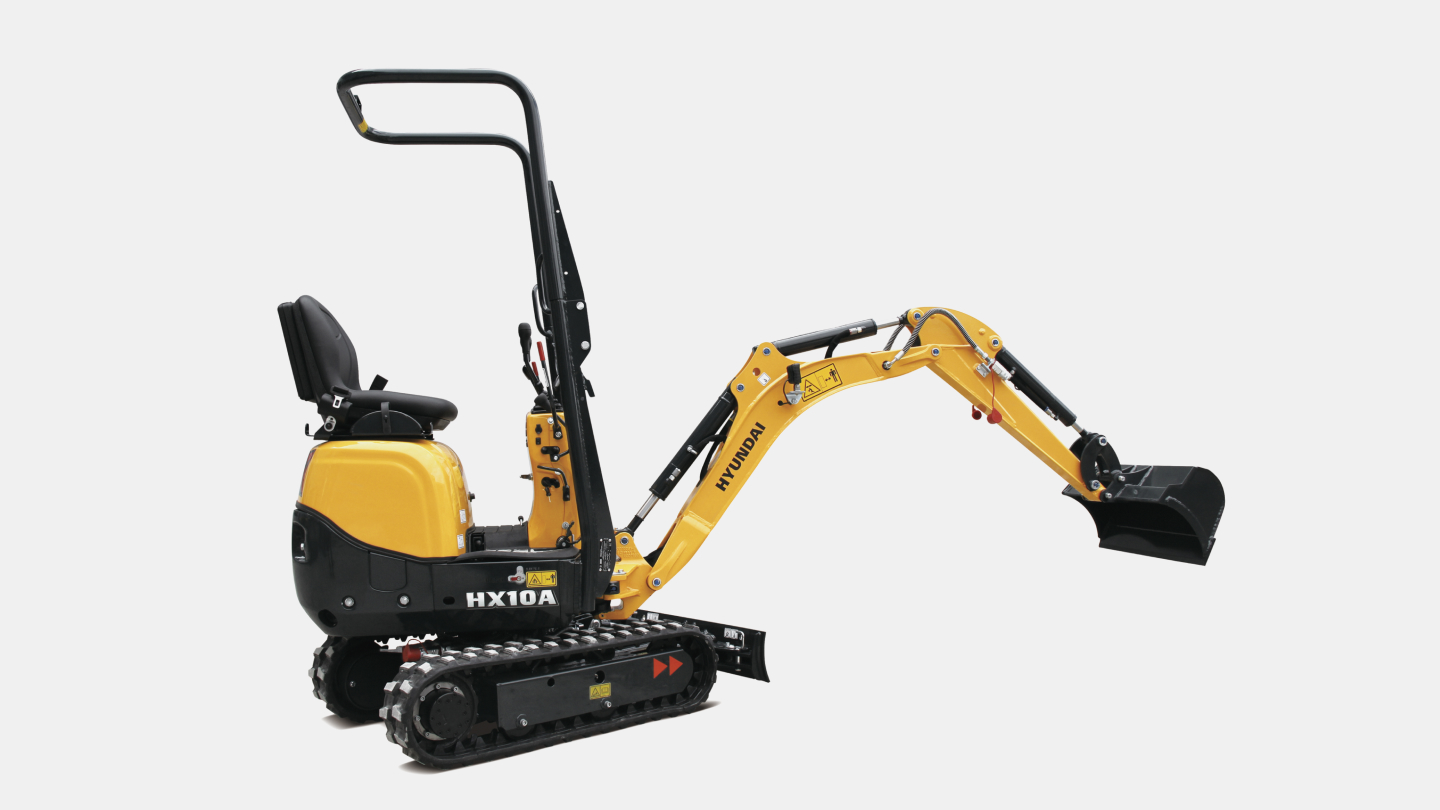

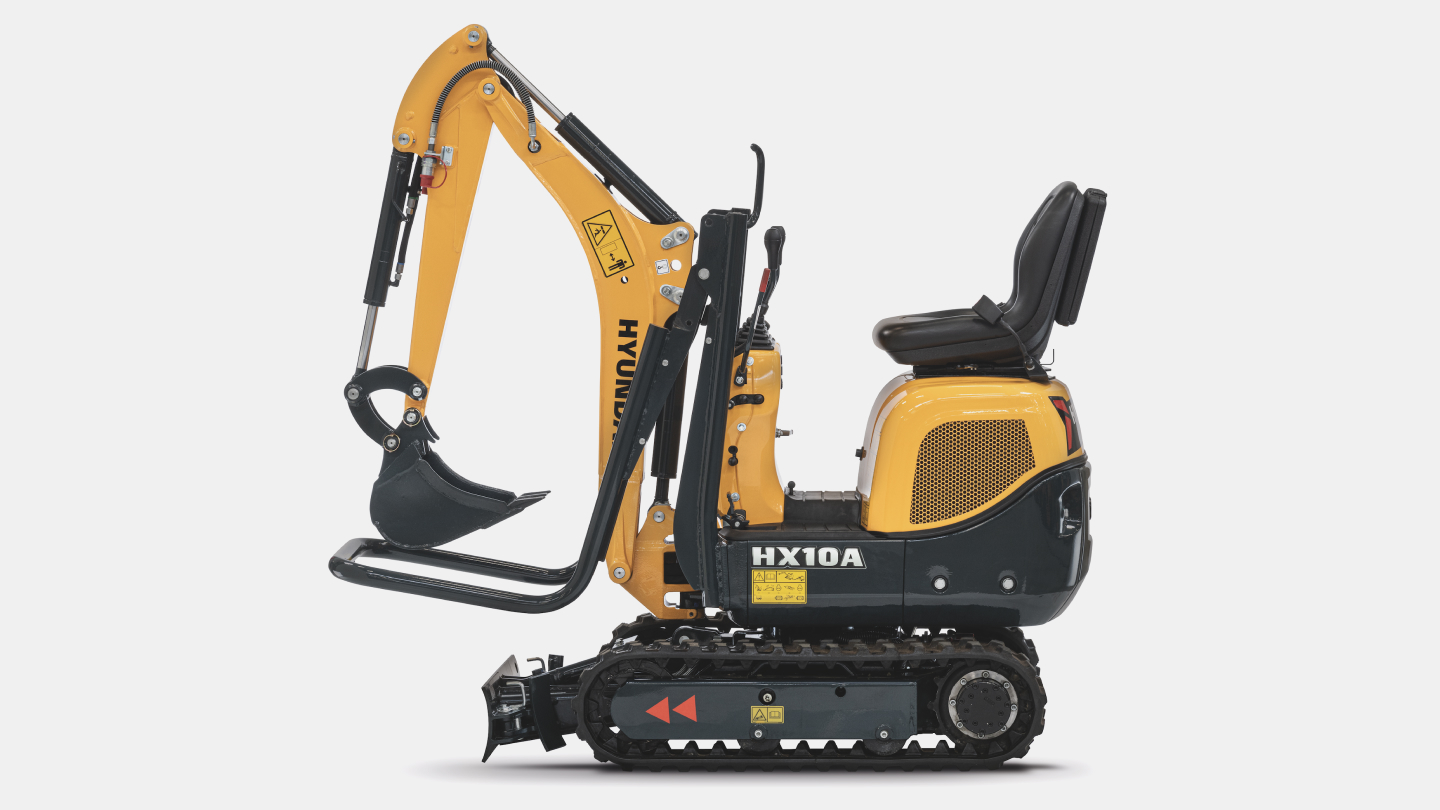

HX10A
-
Type
Compact Excavators
-
Operating Weight
1.087 ton
-
Emission
STAGE V
-
Rated Power
13.3 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
1.087 ton
Bucket Capacity
0.015 m³
-
Engine
Emission
STAGE V
Engine model
YANMAR 3TNV70
Rated Power
13.3 hp / 2,100 rpm
Max. Torque
5.3 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x10.7 ℓ/min
-
Tank Capacity
Fuel Tank
7 ℓ
Hydraulic Tank
13.8 ℓ
-
Performance
Swing Speed
8 rpm
Travel Speed
1.82 km/h
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
908 kgf
Arm Digging Force (ISO)
460 kgf
-
Dimensions
Overall Length
2,653 mm
Overall Width
730 mm
Overall Height
2,261 mm
Tail Swing Radius
747 mm
-
Operating Range
Boom Length
1,320 mm
Arm Length
890 mm
Max. Digging Reach
3,092 mm
Max. Digging Depth
1,766 mm
Max. Digging Height
2,853 mm
Max. Dumping Height
2,006 mm
Min. Swing Radius
1,039 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
