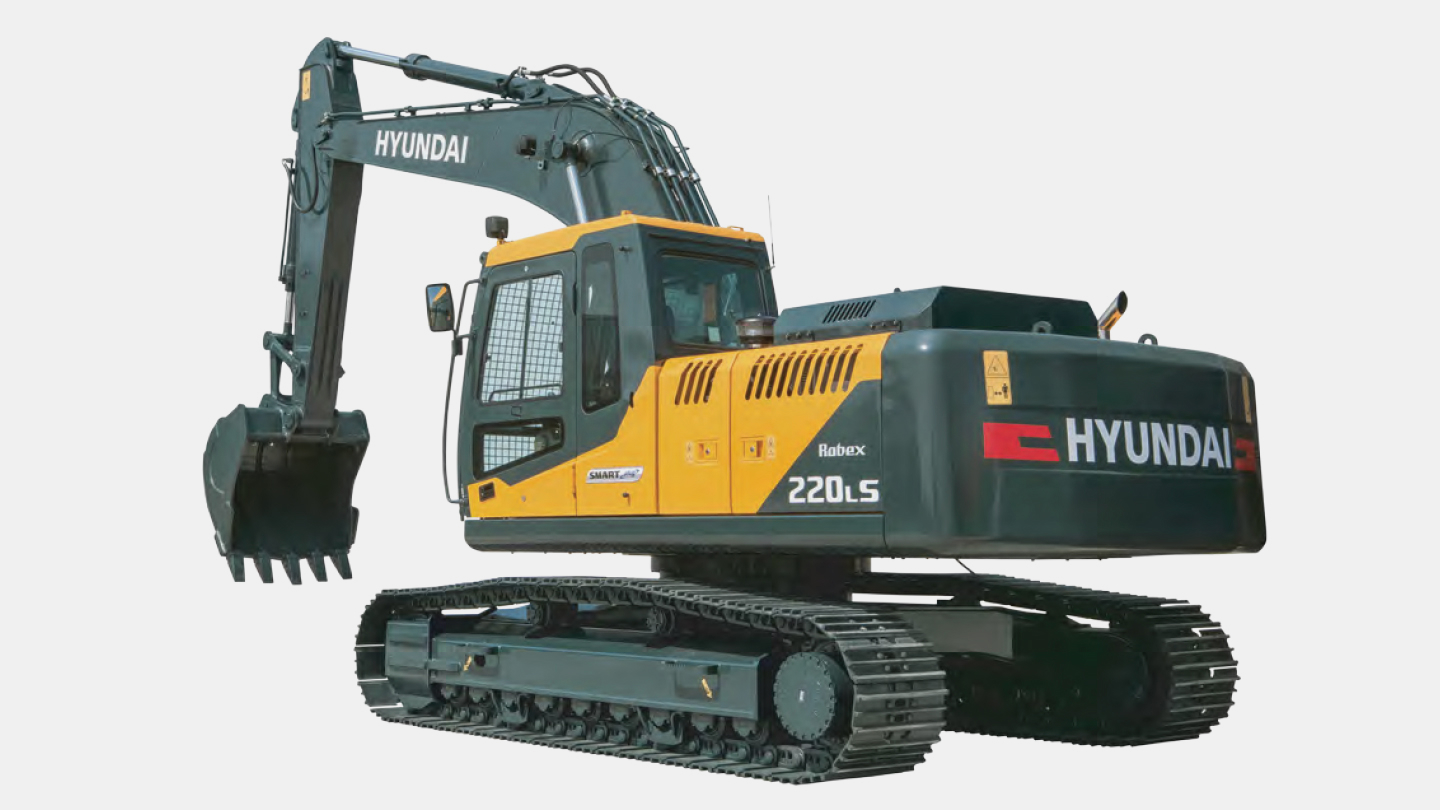

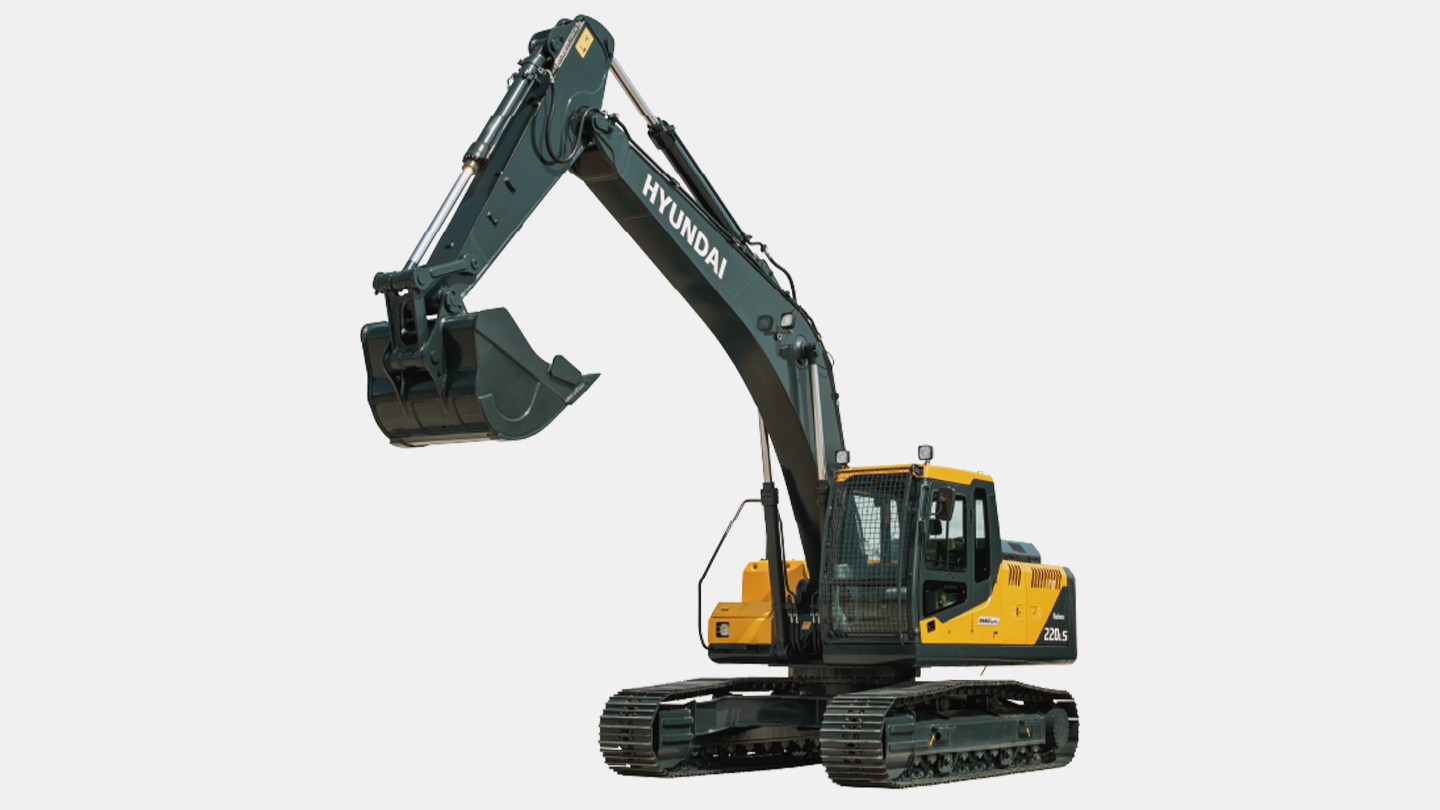

R220LS SMART PLUS

  • Type

    Medium Excavators

  • Operating Weight

    22  ton

  • Emission

    ~TIER 2

  • Rated Power

    148  hp / 2,000 rpm

  • Catalog

Specifications

  • General

    Type

    Medium Excavators

    Operating Weight

    22  ton

    Bucket Capacity

    1.05  m³

  • Engine

    Emission

    ~TIER 2

    Engine model

    CUMMINS6BTAA-5.9C

    Rated Power

    148  hp / 2,000 rpm

    Max. Torque

    63.7  kgf·m / 1,300 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x220  ℓ/min

    Implement Circuit

    330  kgf/cm²

  • Tank Capacity

    Fuel Tank

    340  ℓ

    Hydraulic Tank

    150  ℓ

    DEF/ ADBLUE Tank

    -

  • Performance

    Swing Speed

    11  rpm

    Travel Speed

    5.3  km/h

    Max. Traction Force

    21,100  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    15,729  kgf

    Arm Digging Force (ISO)

    12,571  kgf

  • Dimensions

    Overall Length

    9,570  mm

    Overall Width

    2,990  mm

    Overall Height

    2,920  mm

    Tail Swing Radius

    2,350  mm

    Tumbler Distance

    2,830  mm

    Ground Clearance

    1,060  mm

  • Operating Range

    Boom Length

    5,680  mm

    Arm Length

    2,400  mm

    Max. Digging Reach

    9,474  mm

    Max. Digging Depth

    6,079  mm

    Max. Digging Height

    9,433  mm

    Max. Dumping Height

    6,635  mm

    Min. Swing Radius

    3,573  mm
