Excavators

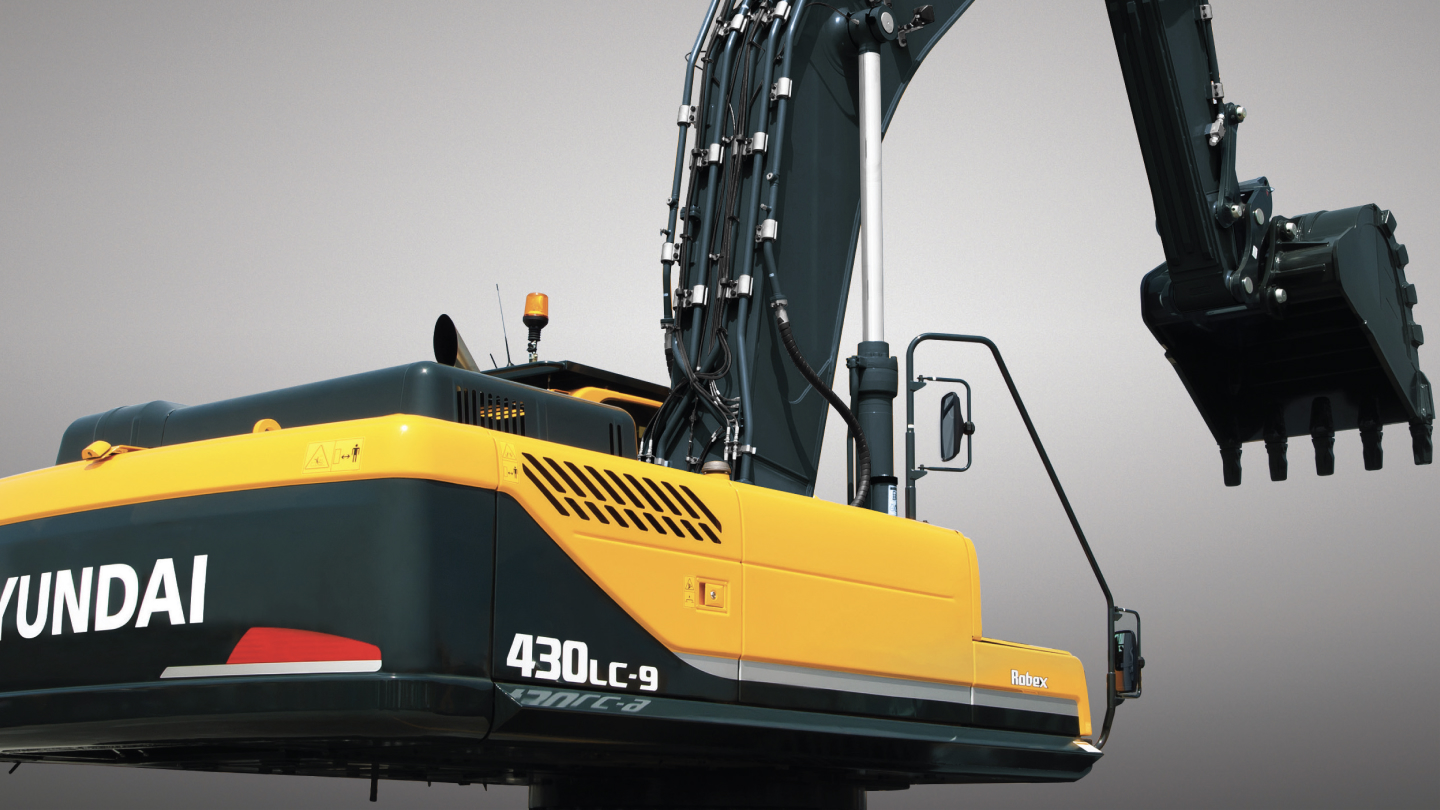

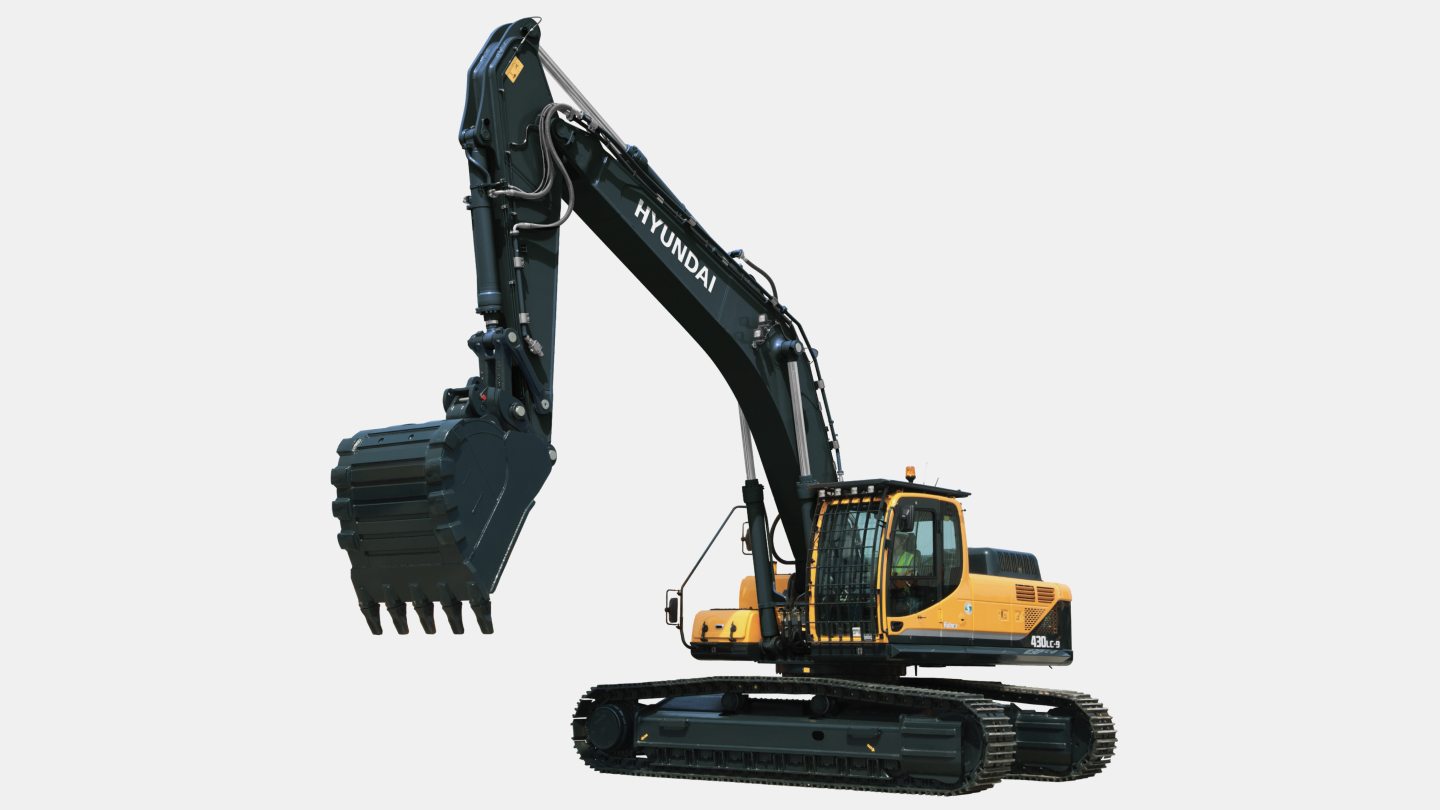

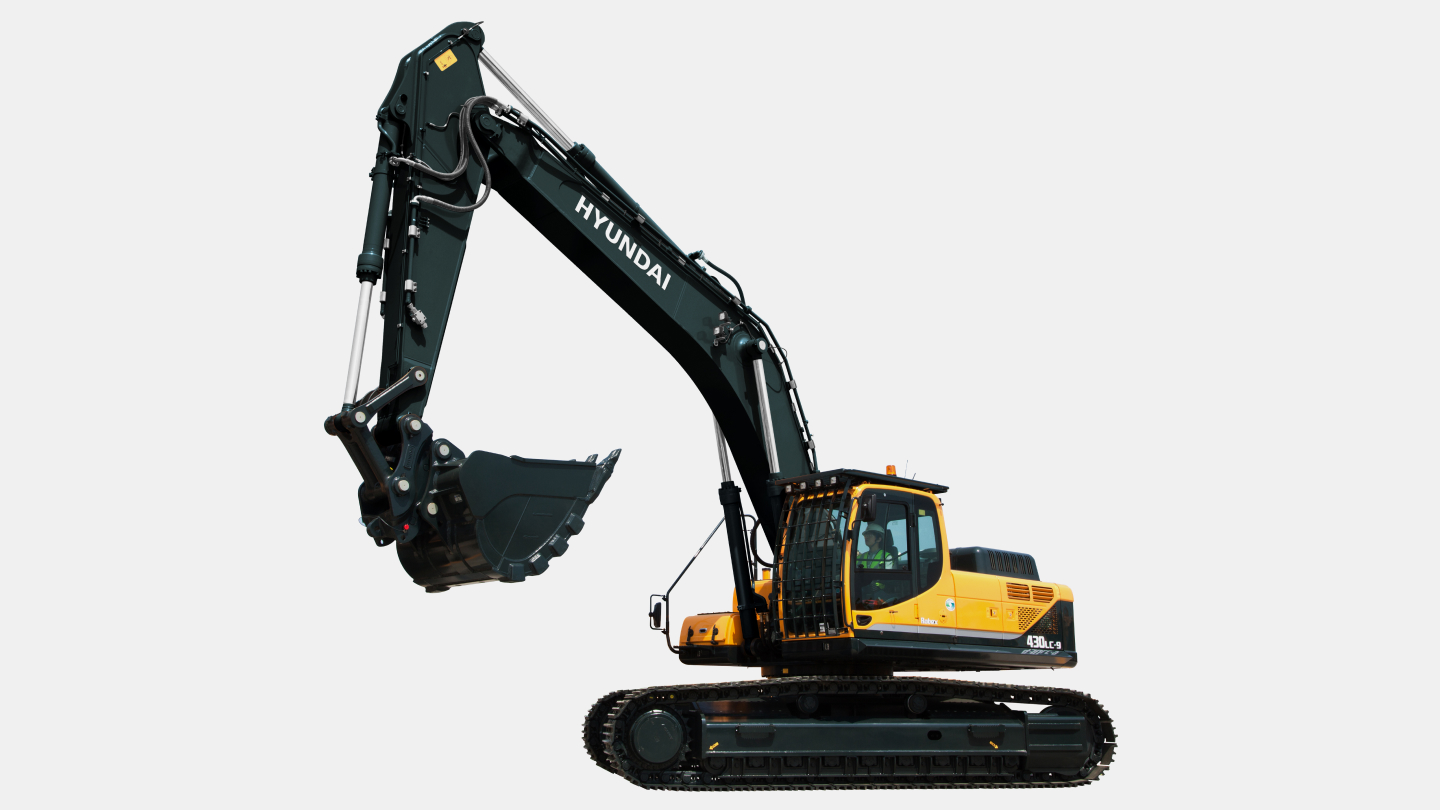

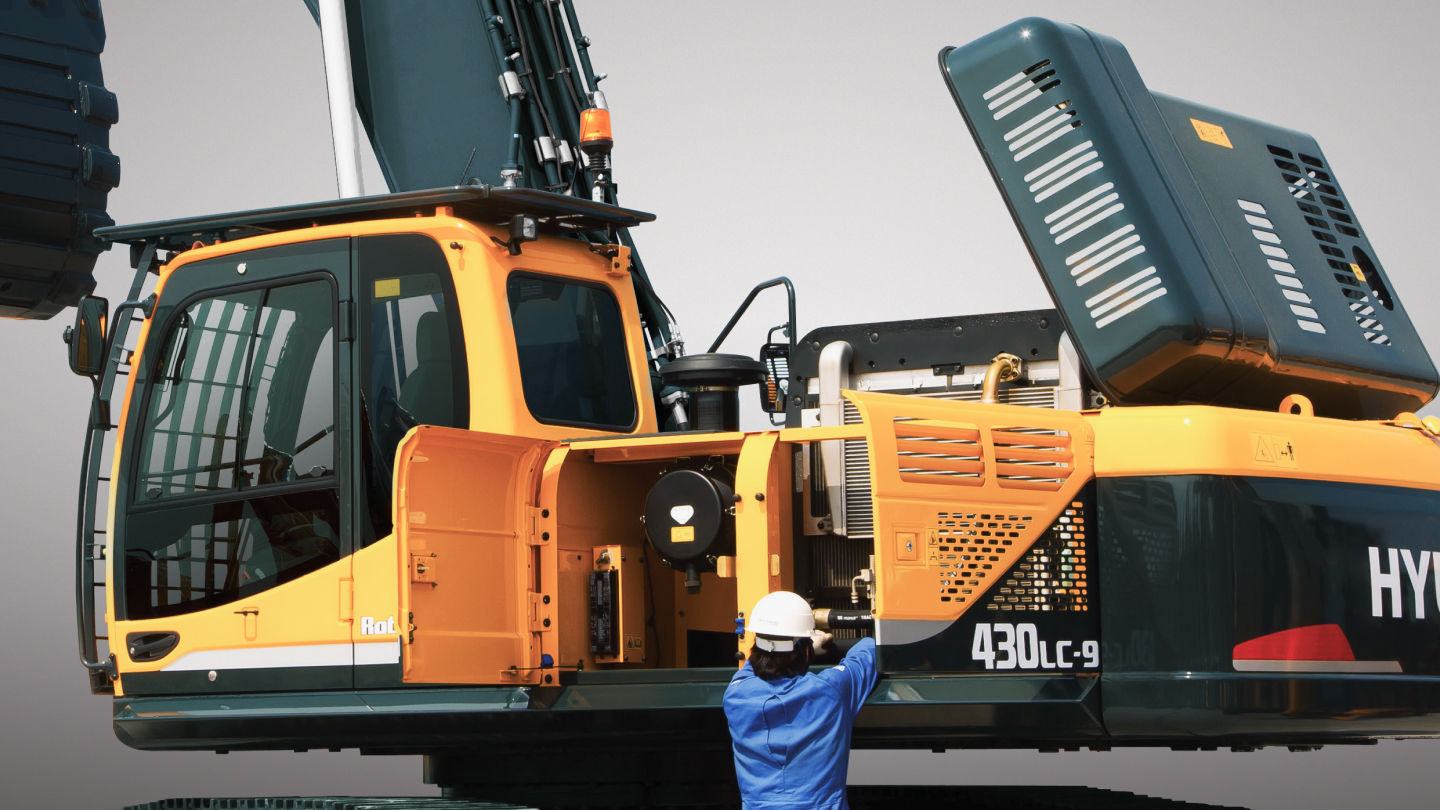

R430LC-9
-
Type
Large Excavators
-
Operating Weight
42.6 ton
-
Emission
TIER 3
-
Rated Power
296 hp / 1,850 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
42.6 ton
Bucket Capacity
1.9 m³
-
Engine
Emission
TIER 3
Engine model
HYUNDAI HE 8.9
Rated Power
296 hp / 1,850 rpm
Max. Torque
148 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x333 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
550 ℓ
Hydraulic Tank
210 ℓ
-
Performance
Swing Speed
9.6 rpm
Travel Speed
5.1 km/h
Max. Traction Force
34,000 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
25,430 kgf
Arm Digging Force (ISO)
17,520 kgf
-
Dimensions
Overall Length
11,270 mm
Overall Width
3,340 mm
Overall Height
3,500 mm
Tail Swing Radius
3,415 mm
Tumbler Distance
4,470 mm
Ground Clearance
555 mm
-
Operating Range
Boom Length
6,500 mm
Arm Length
3,200 mm
Max. Digging Reach
11,250 mm
Max. Digging Depth
7,470 mm
Max. Digging Height
10,630 mm
Max. Dumping Height
7,470 mm
Min. Swing Radius
4,450 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
