Excavators

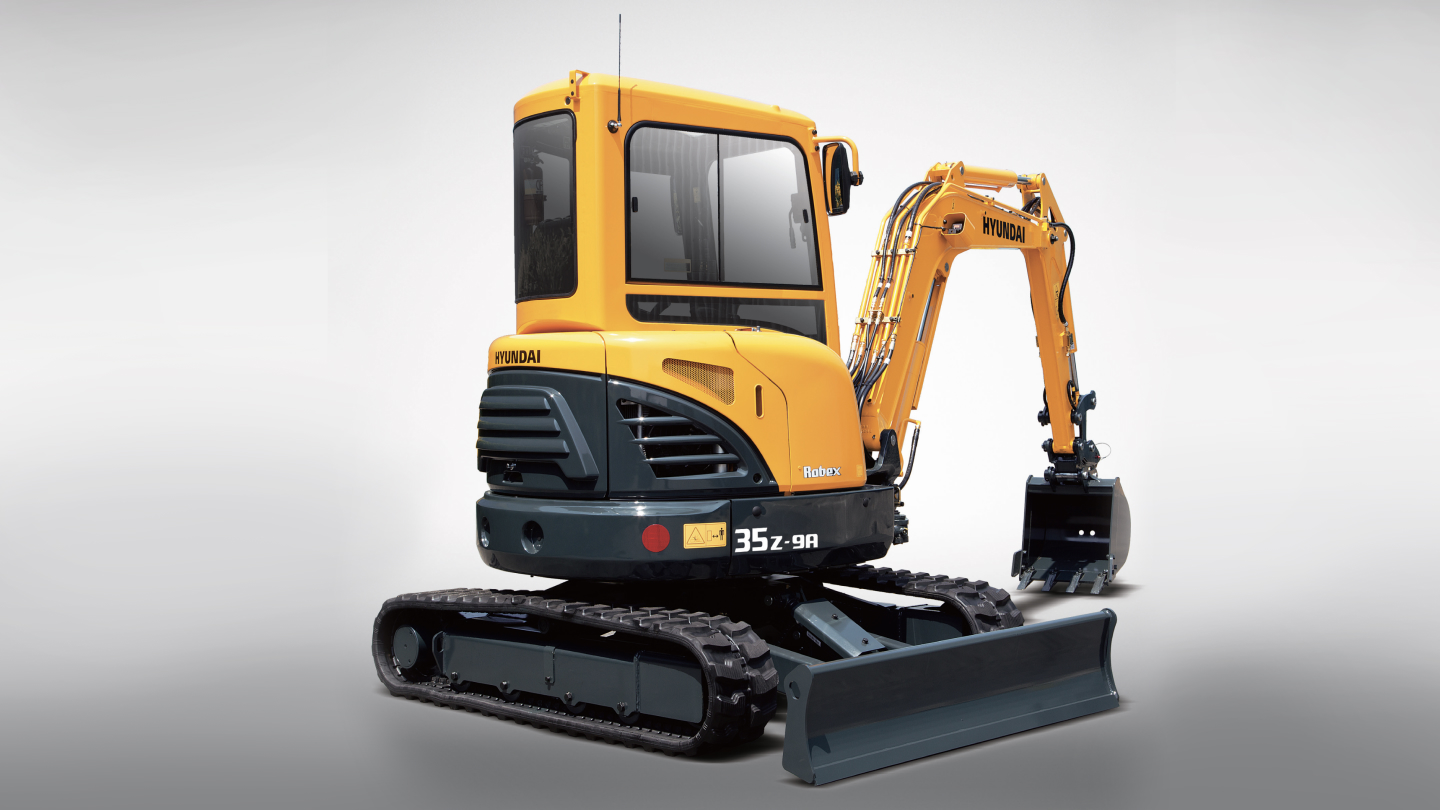

R35Z-9A
-
Type
Compact Excavators
-
Operating Weight
3.69 ton
-
Emission
TIER 4
-
Rated Power
24.4 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
3.69 ton
Bucket Capacity
0.11 m³
-
Engine
Emission
TIER 4
Engine model
YANMAR 3TNV88F
Rated Power
24.4 hp / 2,200 rpm
Max. Torque
9.1 kgf·m / 1,320 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x37.4+23.1+9.9 ℓ/min
Implement Circuit
230 kgf/cm²
-
Tank Capacity
Fuel Tank
40 ℓ
Hydraulic Tank
37 ℓ
-
Performance
Swing Speed
9.5 rpm
Travel Speed
4.2 km/h
Max. Traction Force
3,100 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
3,130 kgf
Arm Digging Force (ISO)
1,990 kgf
-
Dimensions
Overall Length
4,790 mm
Overall Width
1,740 mm
Overall Height
2,500 mm
Tail Swing Radius
870 mm
Tumbler Distance
1,700 mm
Ground Clearance
290 mm
-
Operating Range
Boom Length
2,500 mm
Arm Length
1,300 mm
Max. Digging Reach
5,315 mm
Max. Digging Depth
3,135 mm
Max. Digging Height
4,810 mm
Max. Dumping Height
3,425 mm
Min. Swing Radius
2,350 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
