Excavators

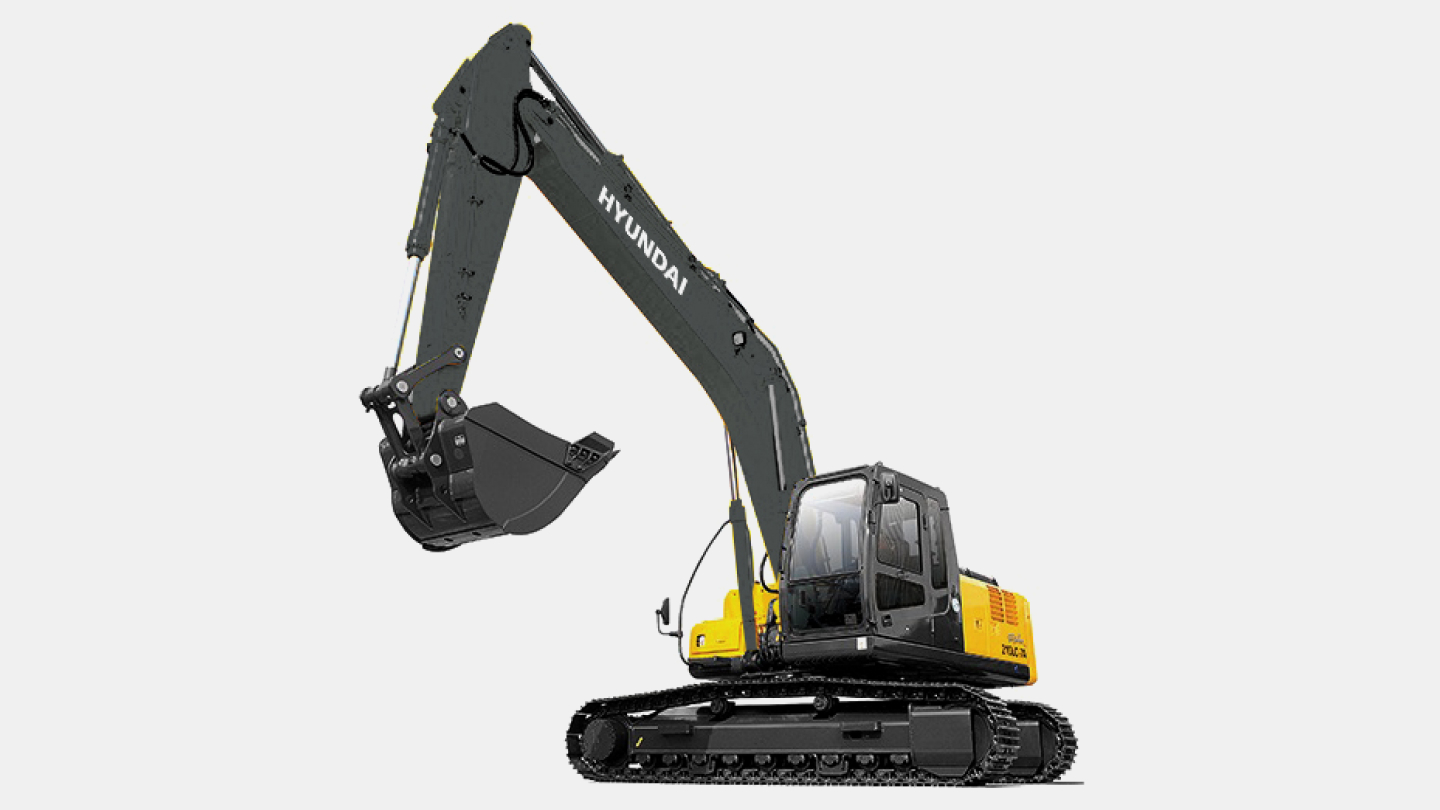

R210LC-7A
-
Type
Medium Excavators
-
Operating Weight
21.7 ton
-
Emission
TIER 3
-
Rated Power
151 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
21.7 ton
Bucket Capacity
0.92 m³
-
Engine
Emission
TIER 3
Engine model
Cummins QSB6.7
Rated Power
151 hp / 1,900 rpm
Max. Torque
63 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 X222 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
340 ℓ
Hydraulic Tank
180 ℓ
-
Performance
Swing Speed
12 rpm
Travel Speed
5.3 km/h
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
15,500 kgf
Arm Digging Force (ISO)
10,300 kgf
-
Dimensions
Overall Length
9,520 mm
Overall Width
2,990 mm
Overall Height
2,990 mm
Tail Swing Radius
2,830 mm
Tumbler Distance
3,650 mm
Ground Clearance
1,060 mm
-
Operating Range
Boom Length
5,680 mm
Arm Length
2,920 mm
Max. Digging Reach
9,940 mm
Max. Digging Depth
6,740 mm
Max. Digging Height
9,470 mm
Max. Dumping Height
6,670 mm
Min. Swing Radius
3,640 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
