Excavators

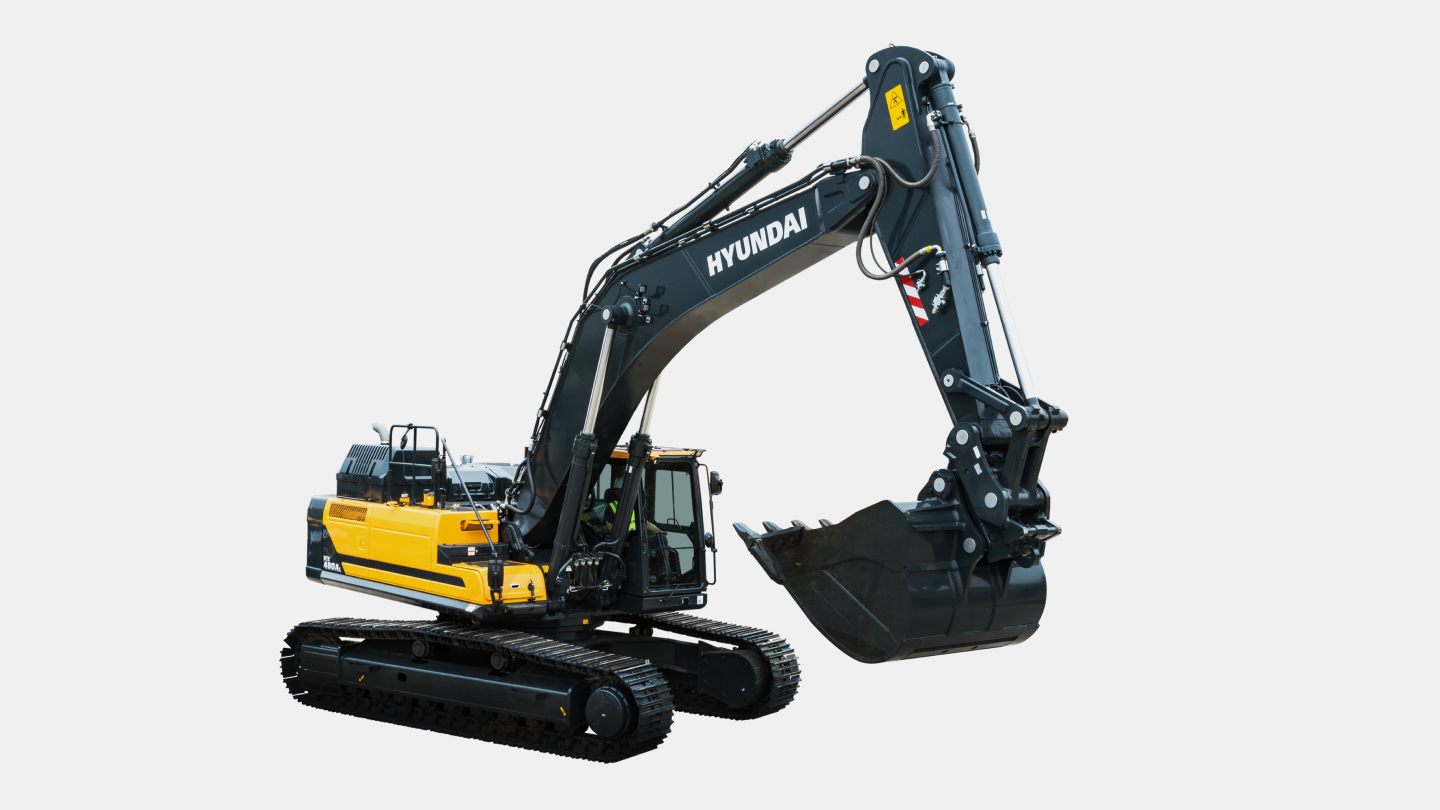

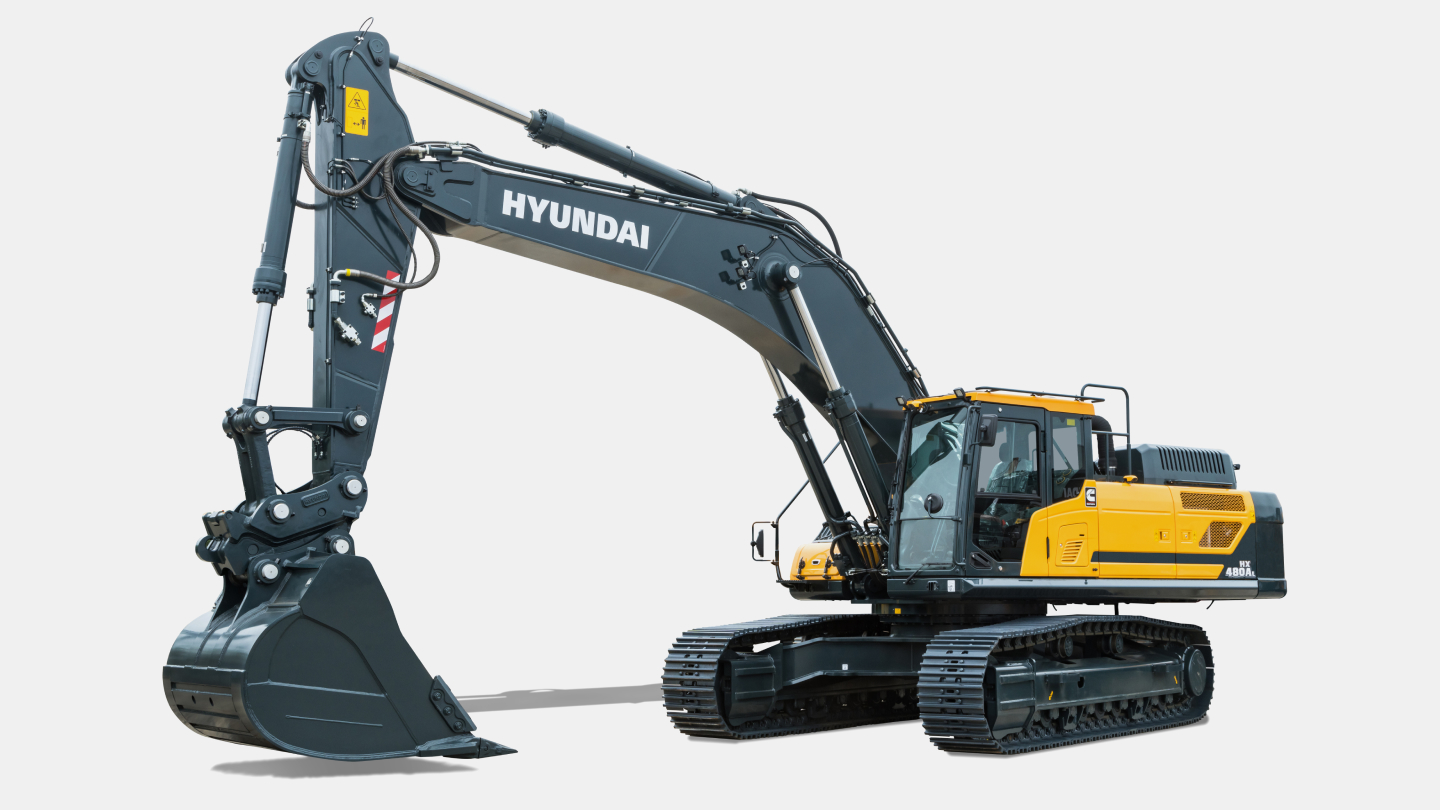

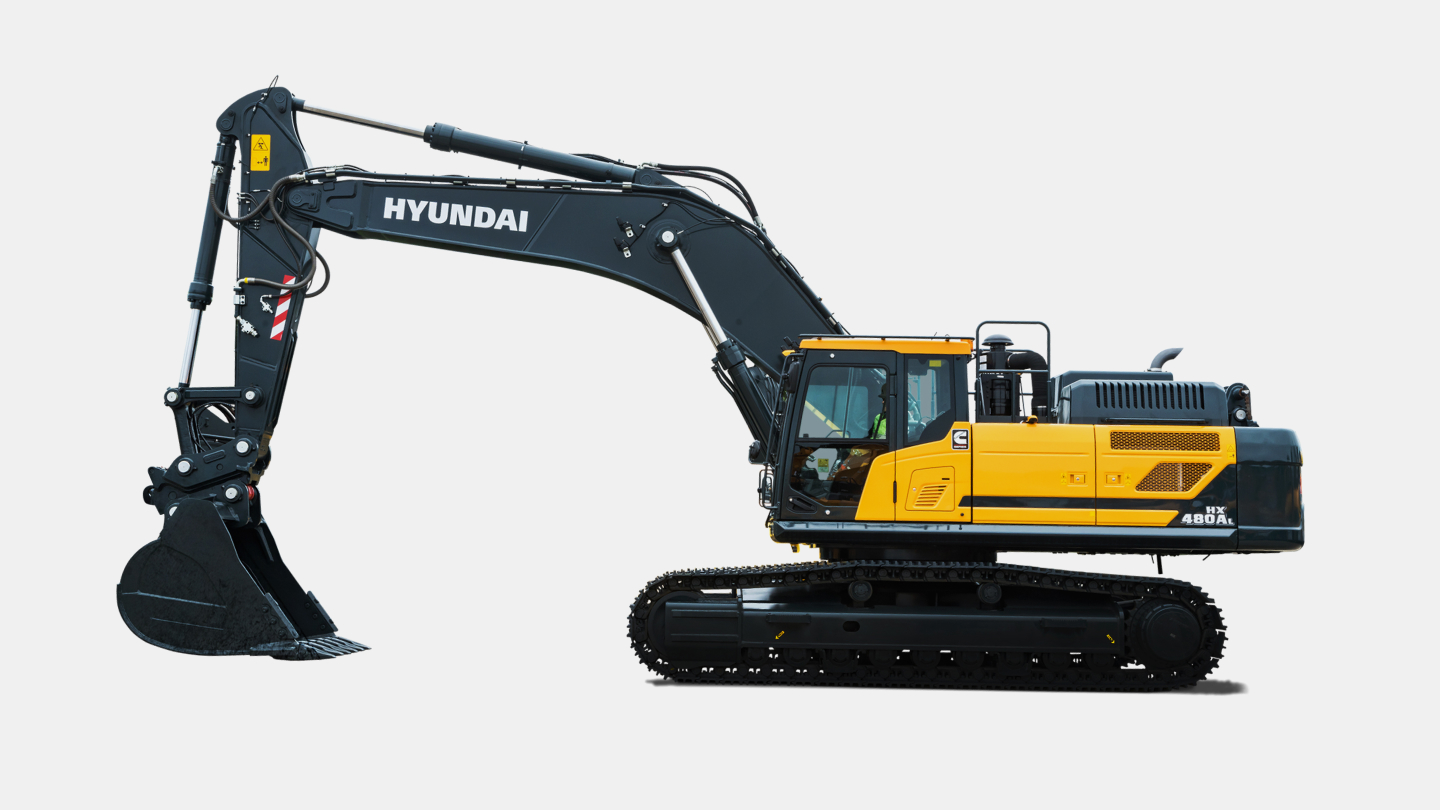

HX480A L
-
Type
Large Excavators
-
Operating Weight
50.69 ton
-
Emission
STAGE V
-
Rated Power
400 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
50.69 ton
Bucket Capacity
3.2 m³
-
Engine
Emission
STAGE V
Engine model
X12
Rated Power
400 hp / 2,100 rpm
-
Hydraulic System
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
275 ℓ
DEF/ ADBLUE Tank
70 ℓ
-
Performance
Swing Speed
9.0 rpm
Travel Speed
3.3 km/h
Max. Traction Force
39,674 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
25,300 kgf
Arm Digging Force (ISO)
20,200 kgf
-
Dimensions
Overall Length
12,040 mm
Overall Width
3,540 mm
Overall Height
3,790 mm
Tail Swing Radius
3,800 mm
Tumbler Distance
4,470 mm
Ground Clearance
560 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,040 mm
Max. Digging Depth
7,760 mm
Max. Digging Height
11,030 mm
Max. Dumping Height
7,640 mm
Min. Swing Radius
4,770 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
