Excavators

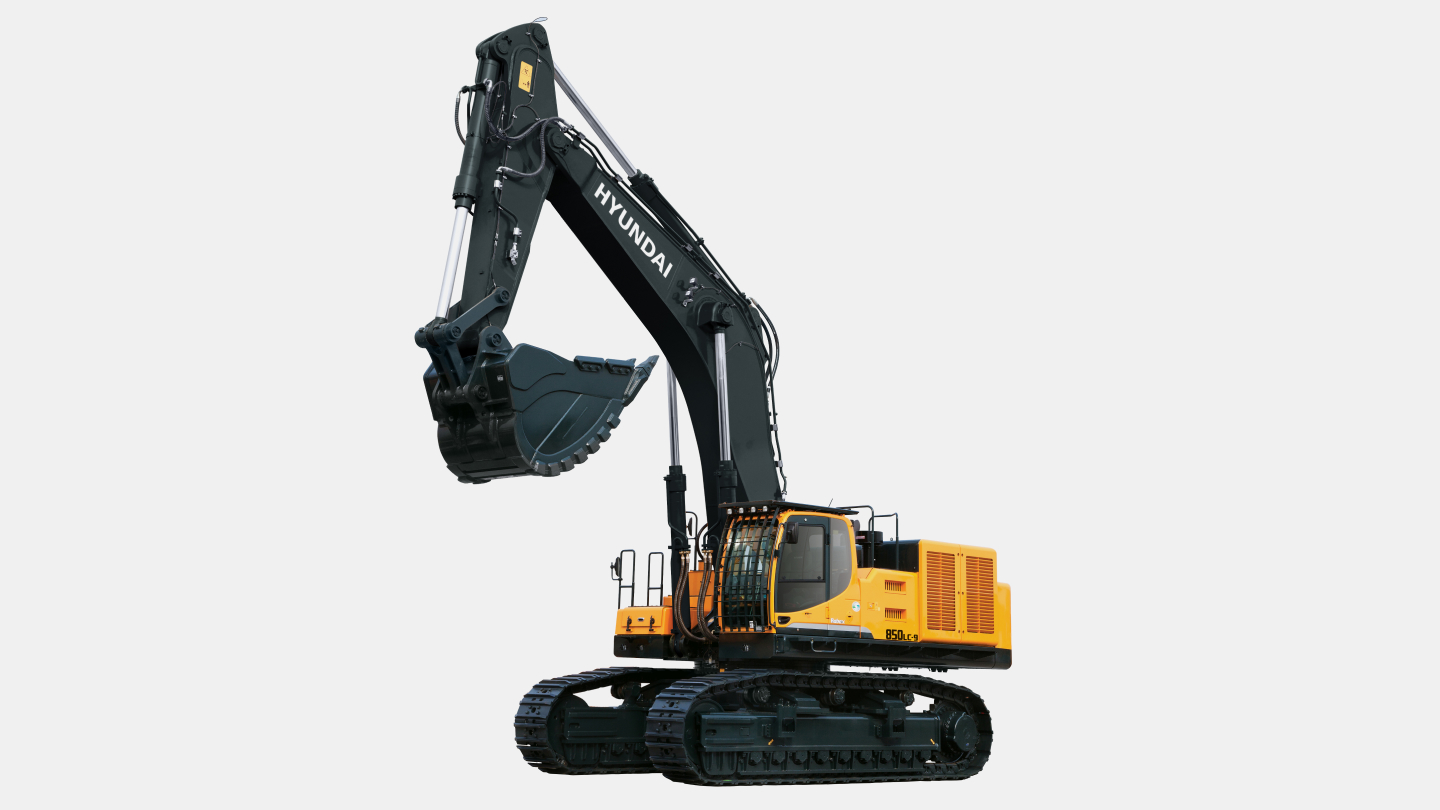

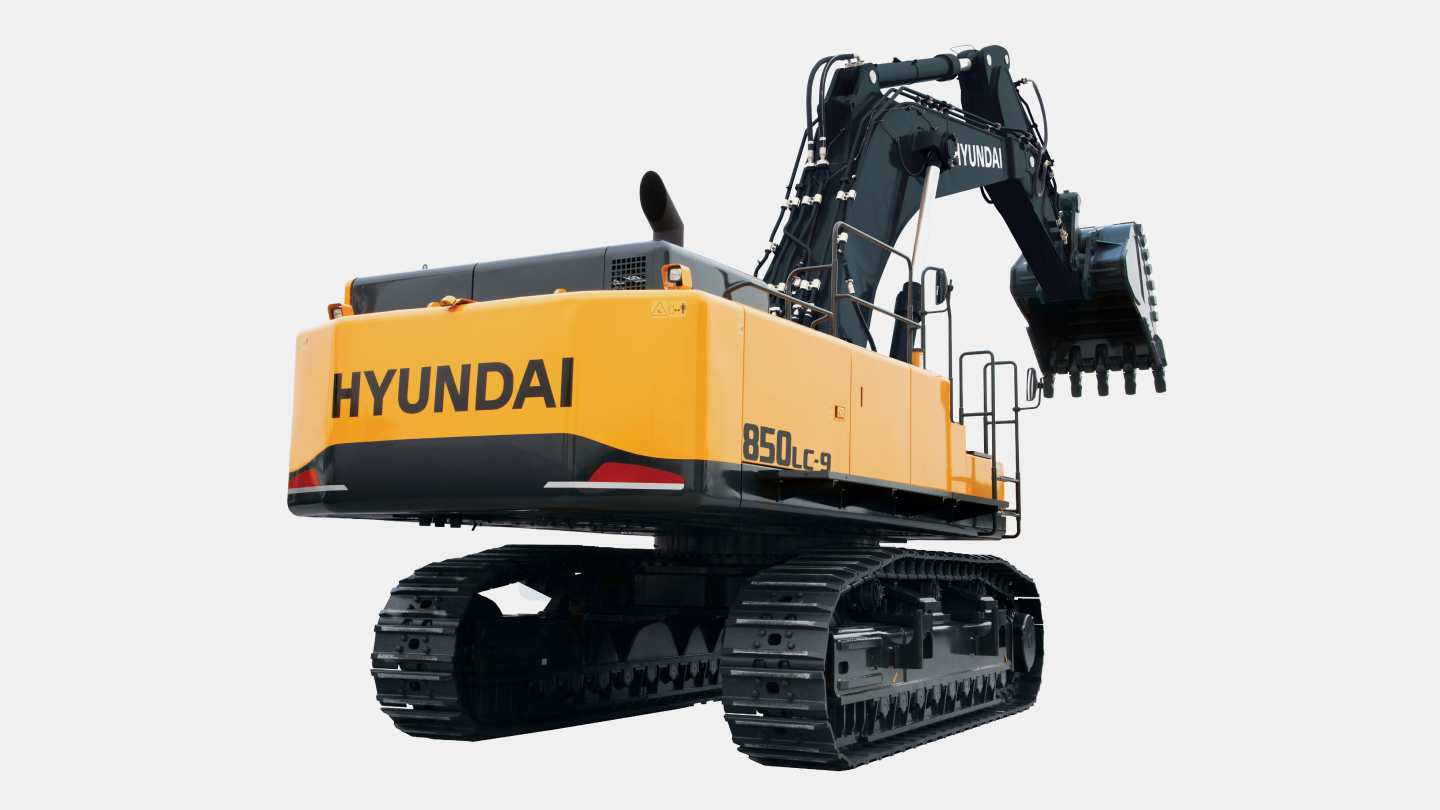

R850LC-9
-
Type
Large Excavators
-
Operating Weight
84 ton
-
Emission
TIER 3
-
Rated Power
510 hp / 1,800 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
84 ton
Bucket Capacity
4.04 m³
-
Engine
Emission
TIER 3
Engine model
CUMMINS QSX15
Rated Power
510 hp / 1,800 rpm
Max. Torque
241 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x504 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
940 ℓ
Hydraulic Tank
450 ℓ
-
Performance
Swing Speed
6.2 rpm
Travel Speed
3.8 km/h
Max. Traction Force
59,300 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
49,310 kgf
Arm Digging Force (ISO)
37,090 kgf
-
Dimensions
Overall Length
13,100 mm
Overall Width
4,495 mm
Overall Height
5,040 mm
Tail Swing Radius
4,315 mm
Tumbler Distance
5,030 mm
Ground Clearance
880 mm
-
Operating Range
Boom Length
7,200 mm
Arm Length
2,950 mm
Max. Digging Reach
12,250 mm
Max. Digging Depth
7,240 mm
Max. Digging Height
11,750 mm
Max. Dumping Height
7,500 mm
Min. Swing Radius
5,120 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
