Excavators

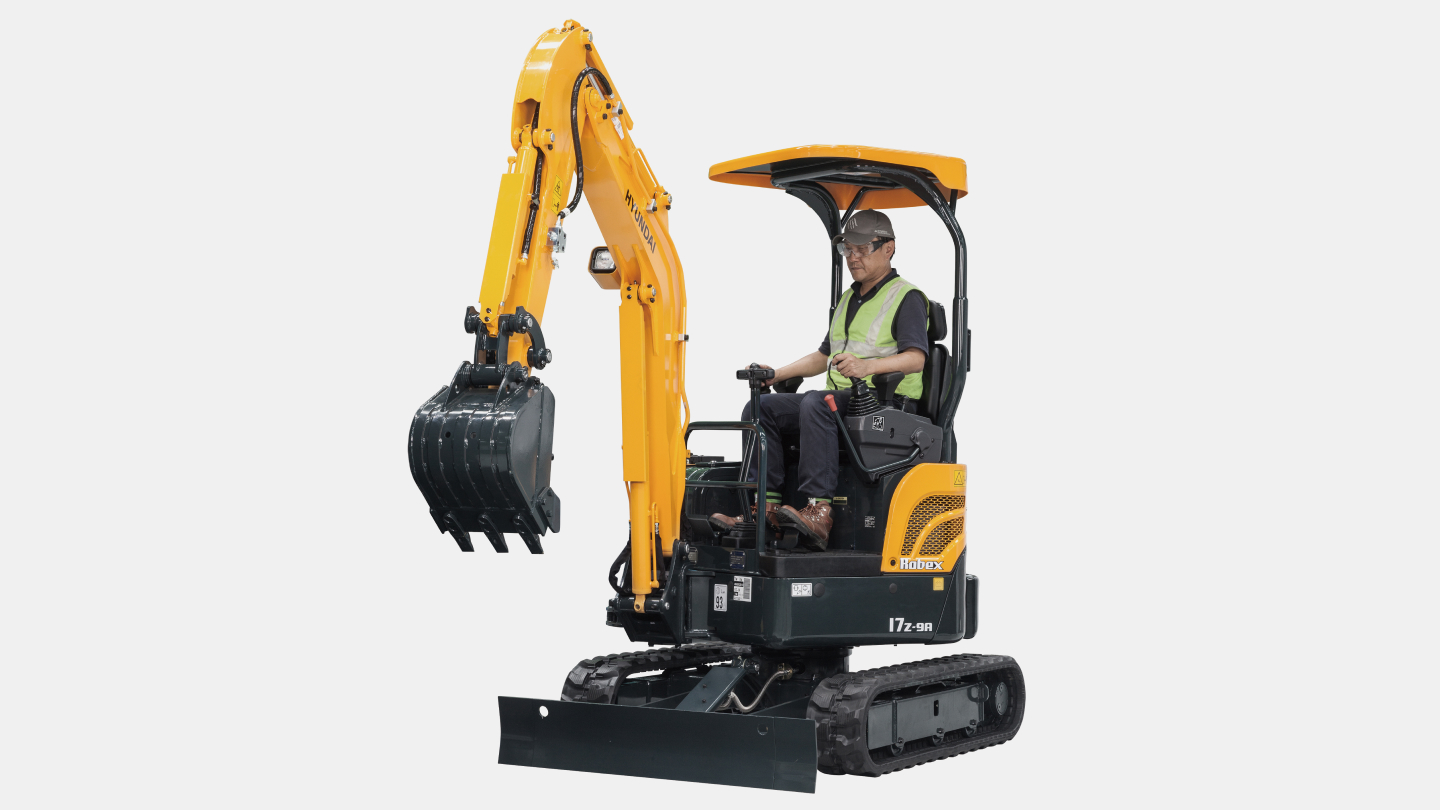

R17Z-9A
-
Type
Compact Excavators
-
Operating Weight
1.7 ton
-
Emission
TIER 4
-
Rated Power
163 hp / 2,300 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
1.7 ton
Bucket Capacity
0.04 m³
-
Engine
Emission
TIER 4
Engine model
KUBOTA D902
Rated Power
163 hp / 2,300 rpm
Max. Torque
5.6 kgf·m / 1,900 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x18.8+11.3 ℓ/min
Implement Circuit
210 kgf/cm²
-
Tank Capacity
Fuel Tank
20 ℓ
Hydraulic Tank
12.5 ℓ
-
Performance
Swing Speed
9.5 rpm
Travel Speed
4.2 km/h
Max. Traction Force
1,420 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
1,580 kgf
Arm Digging Force (ISO)
870 kgf
-
Dimensions
Overall Length
3,500 mm
Overall Width
1,300 mm
Overall Height
2,320 mm990~1300mm
Tail Swing Radius
645 mm
Tumbler Distance
1,230 mm
Ground Clearance
170 mm
-
Operating Range
Boom Length
1,800 mm
Arm Length
960 mm
Max. Digging Reach
3,900 mm
Max. Digging Depth
2,200 mm
Max. Digging Height
3,580 mm
Max. Dumping Height
2,570 mm
Min. Swing Radius
1,570 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
