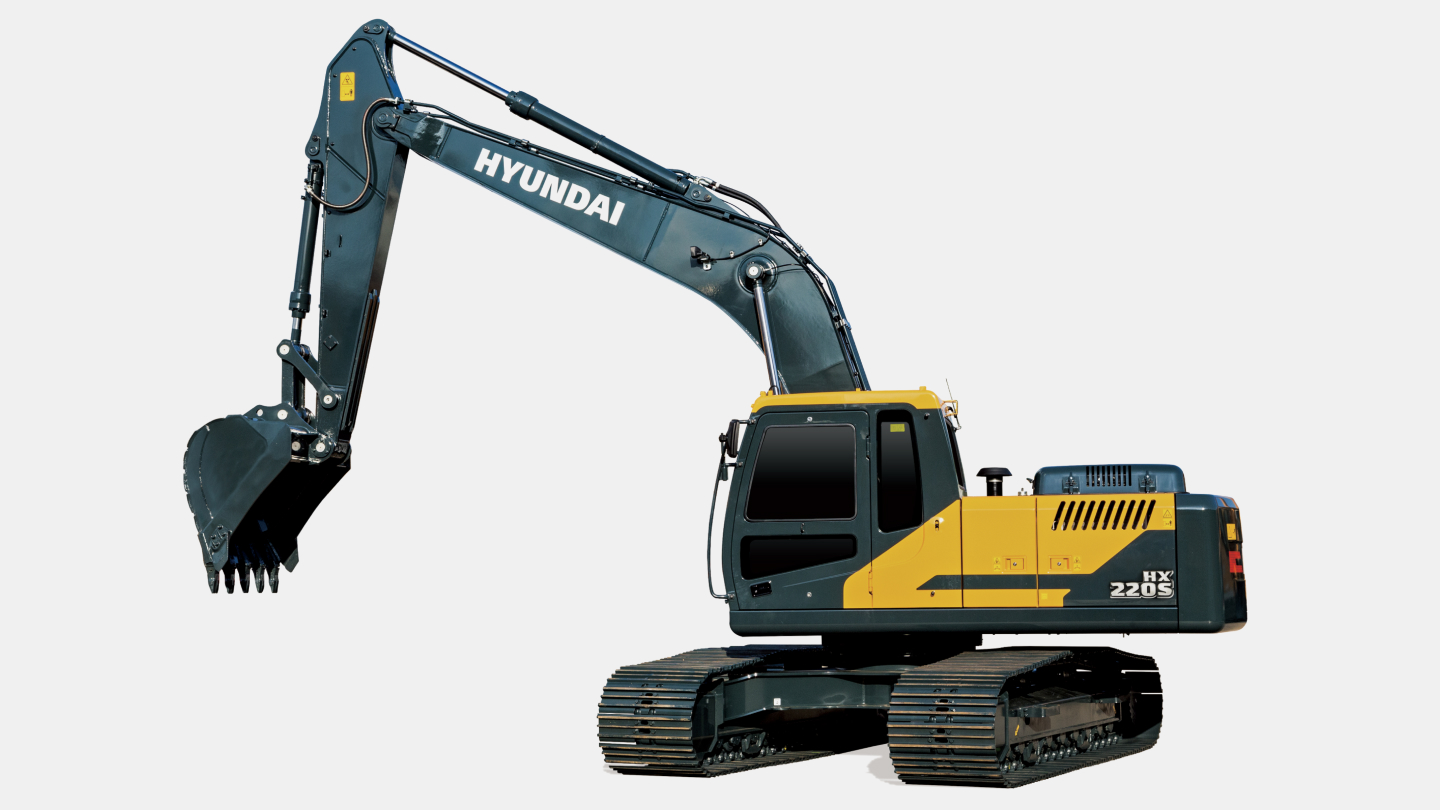

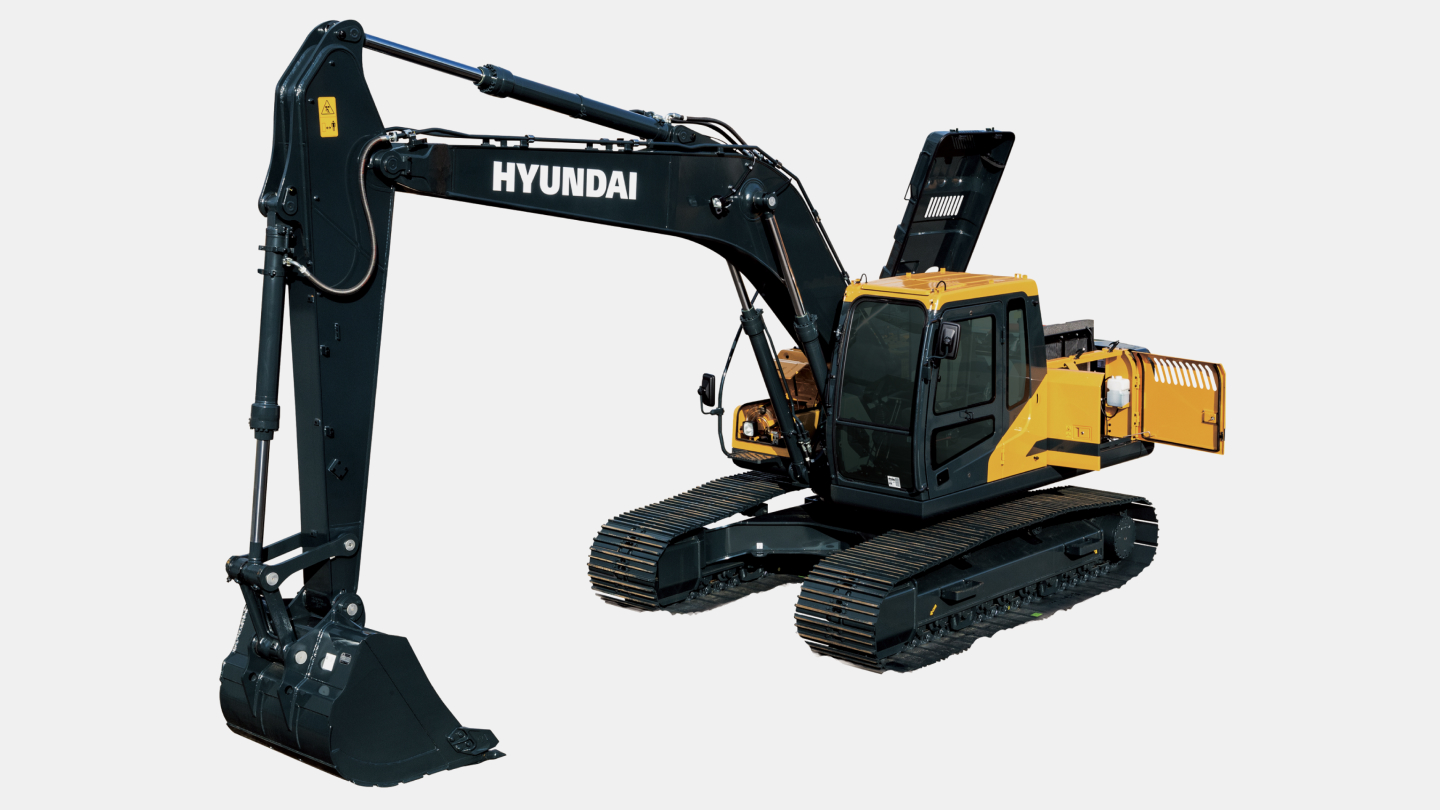

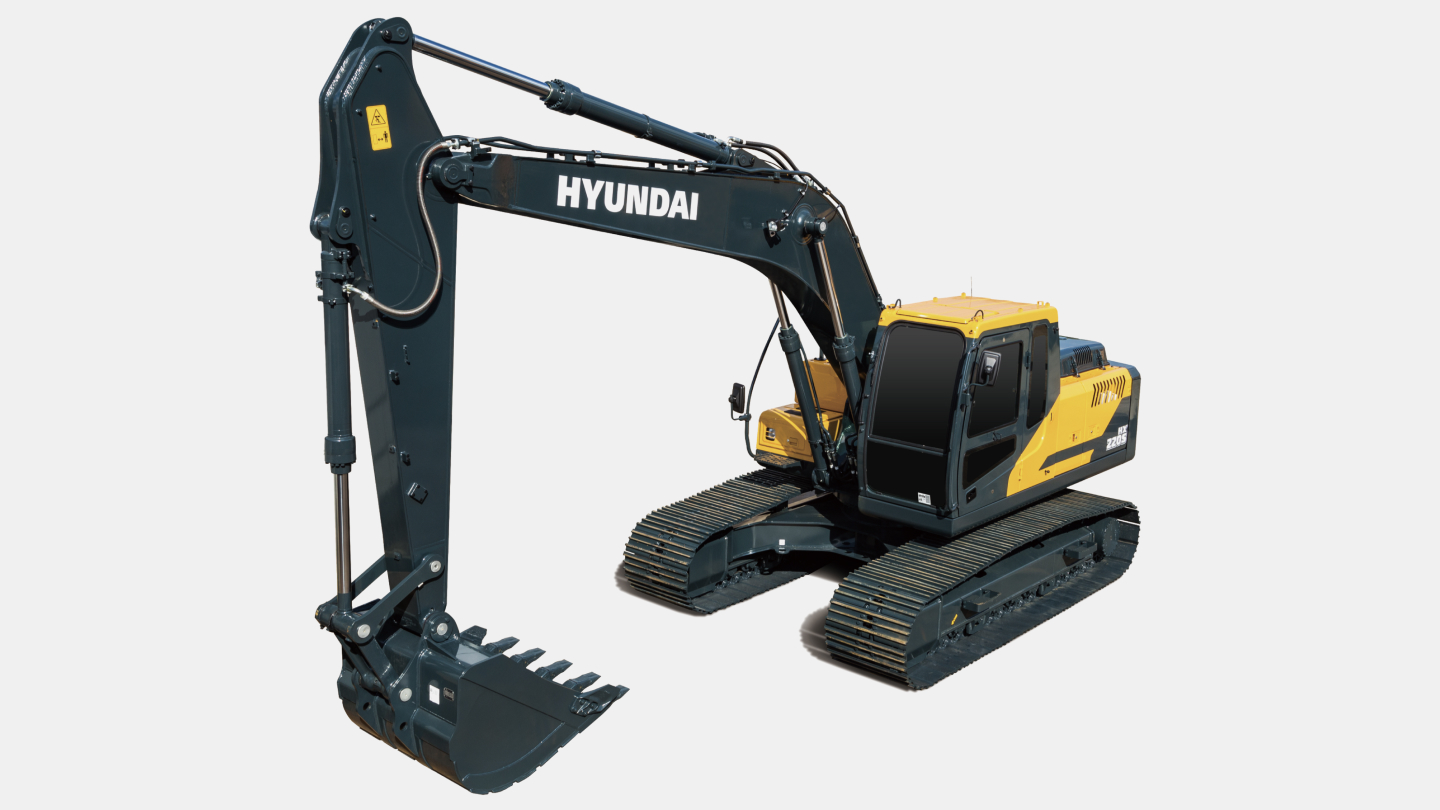

HX220S

  • Type

    Medium Excavators

  • Operating Weight

    21.26  ton

  • Emission

    N/A

  • Rated Power

    148  hp / 2,000 rpm

  • Catalog

Specifications

  • General

    Type

    Medium Excavators

    Operating Weight

    21.26  ton

    Bucket Capacity

    0.92  m³

  • Engine

    Emission

    N/A

    Engine model

    HYUNDAI HM5.9

    Rated Power

    148  hp / 2,000 rpm

    Max. Torque

    64  kgf·m / 1,300 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x234  ℓ/min

    Implement Circuit

    350  kgf/cm²

  • Tank Capacity

    Fuel Tank

    340  ℓ

    Hydraulic Tank

    275  ℓ

  • Performance

    Swing Speed

    12.2  rpm

    Travel Speed

    5.7  km/h

    Max. Traction Force

    21,100  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    15,530  kgf

    Arm Digging Force (ISO)

    10,900  kgf

  • Dimensions

    Overall Length

    9,550  mm

    Overall Width

    3,000  mm

    Overall Height

    2,960  mm

    Tail Swing Radius

    2,845  mm

    Tumbler Distance

    3,650  mm

    Ground Clearance

    475  mm

  • Operating Range

    Boom Length

    5,700  mm

    Arm Length

    2,900  mm

    Max. Digging Reach

    9,945  mm

    Max. Digging Depth

    6,500  mm

    Max. Digging Height

    9,750  mm

    Max. Dumping Height

    6,990  mm

    Min. Swing Radius

    3,425  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.

Sales Region

Africa, Asia, South America, Russia&CIS, Middle East, Israel
