Excavators

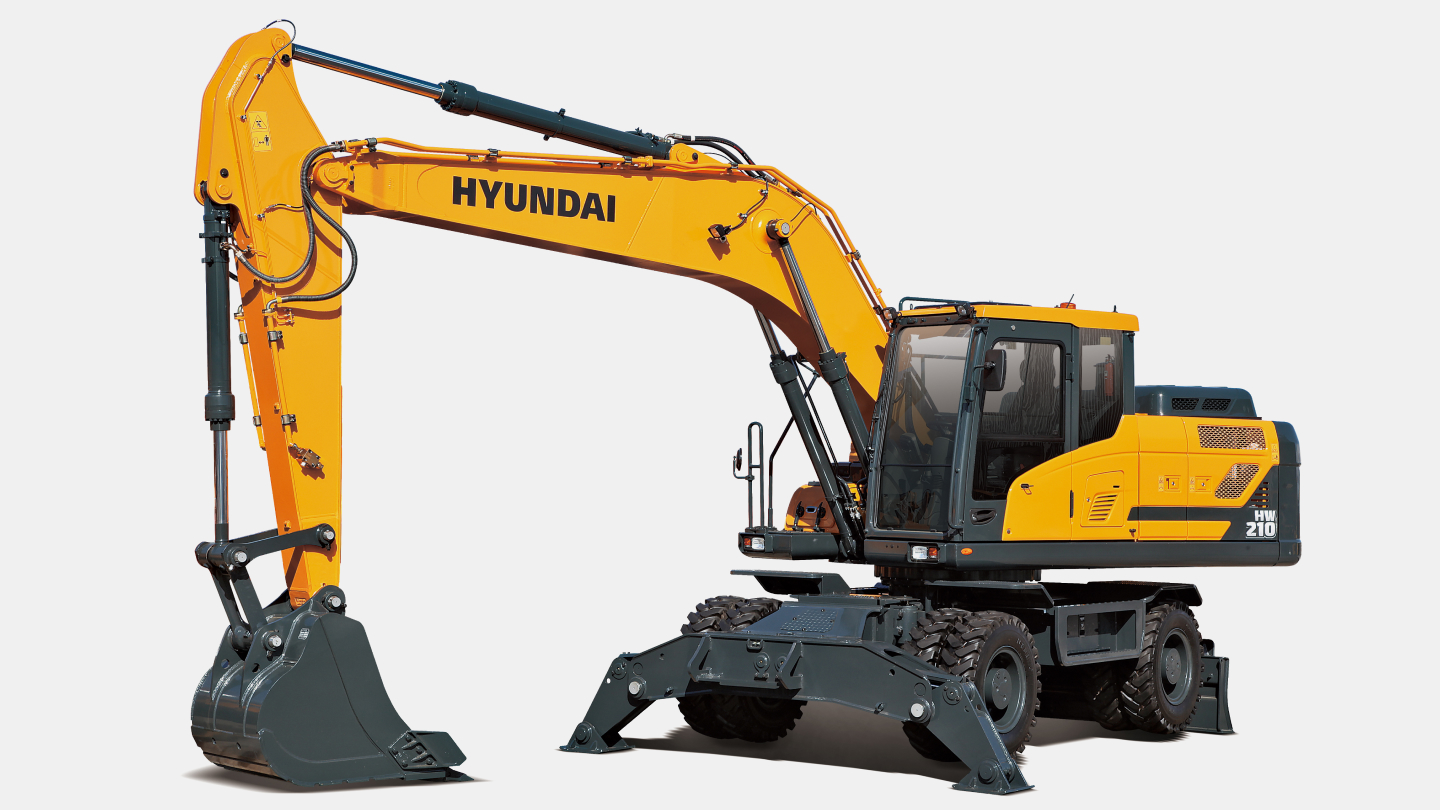

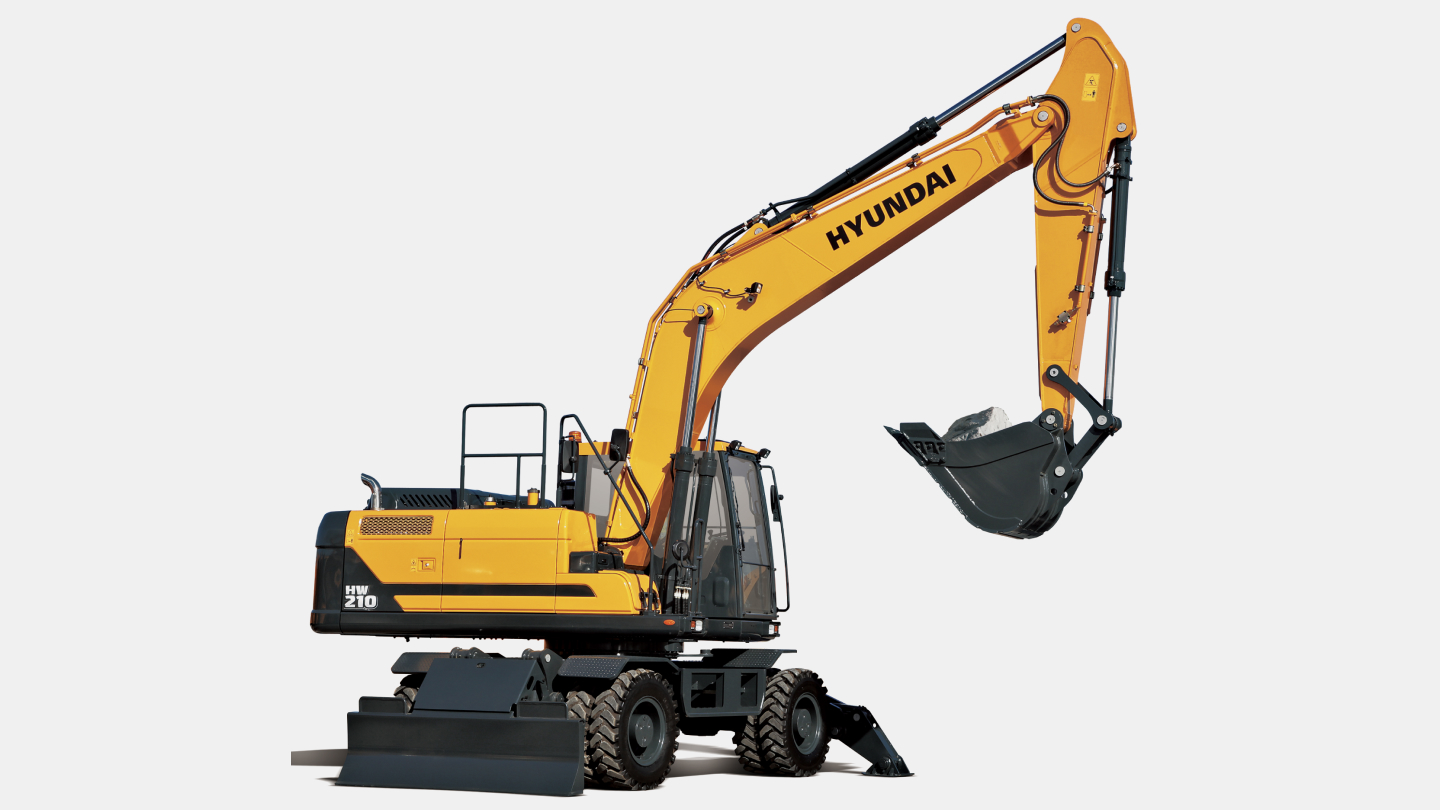

HW210
-
Type
Wheel Excavators
-
Operating Weight
21.2 ton
-
Emission
TIER 4
-
Rated Power
183 hp / 2,200 rpm
- Catalog
Specifications
-
General
Type
Wheel Excavators
Operating Weight
21.2 ton
Bucket Capacity
0.8 m³
-
Engine
Emission
TIER 4
Engine model
CUMMINS QSB 6.7
Rated Power
183 hp / 2,200 rpm
Max. Torque
85.7 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x234 ℓ/min
Implement Circuit
350 kgf/cm²[380]kgf/c㎡
-
Tank Capacity
Fuel Tank
310 ℓ
Hydraulic Tank
165 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
9.7 rpm
Travel Speed
35 km/h
Max. Traction Force
11,600 kgf
Max. Gradeability
33 deg
Bucket Digging Force (ISO)
16,830 kgf
Arm Digging Force (ISO)
11,830 kgf
-
Dimensions
Overall Length
9,500 mm
Overall Width
2,530 mm
Overall Height
4,020 mm
-
Operating Range
Boom Length
5,650 mm
Arm Length
2,920 mm
Max. Digging Reach
9,960 mm
Max. Digging Depth
6,380 mm
Max. Digging Height
10,000 mm
Max. Dumping Height
7,160 mm
Min. Swing Radius
3,580 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
