Excavators

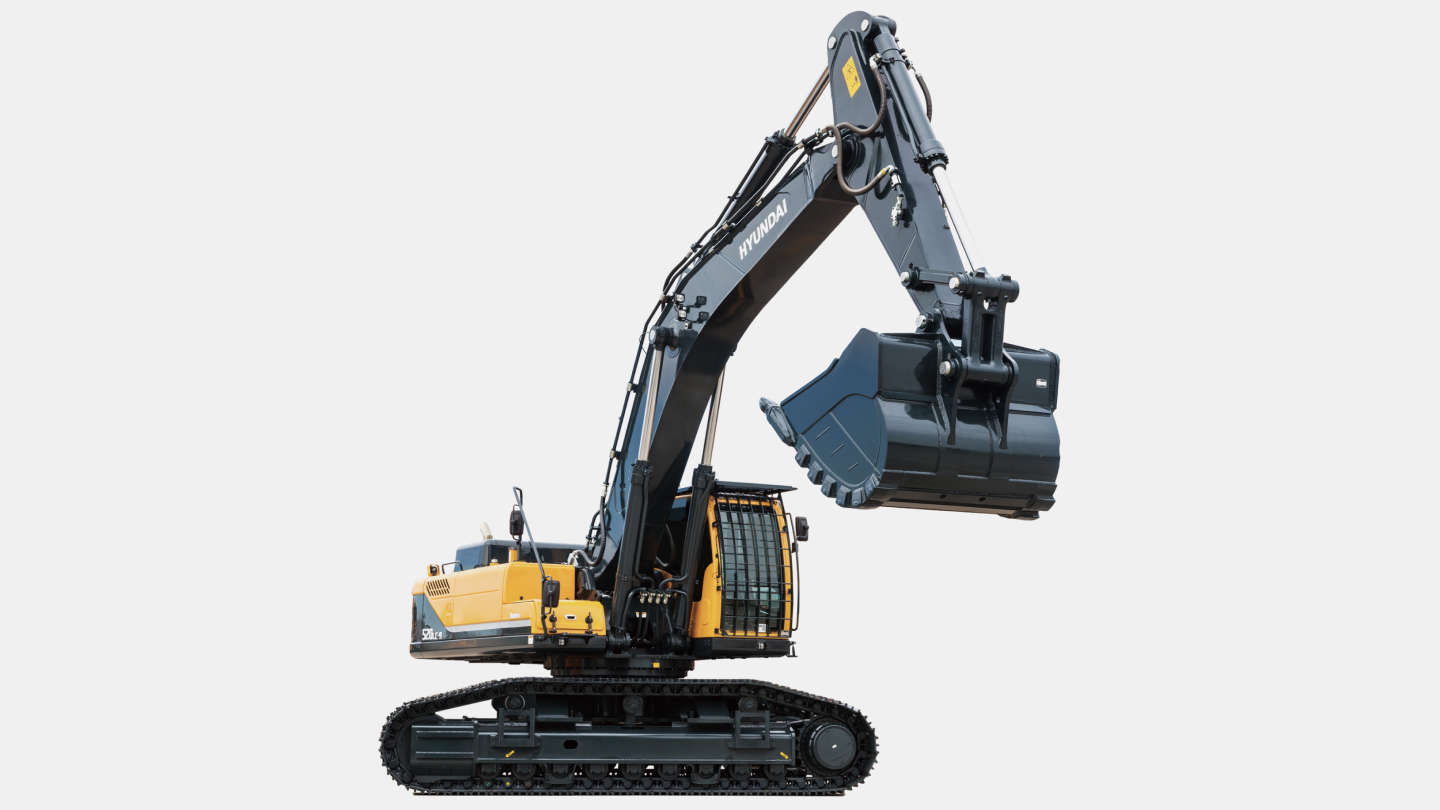

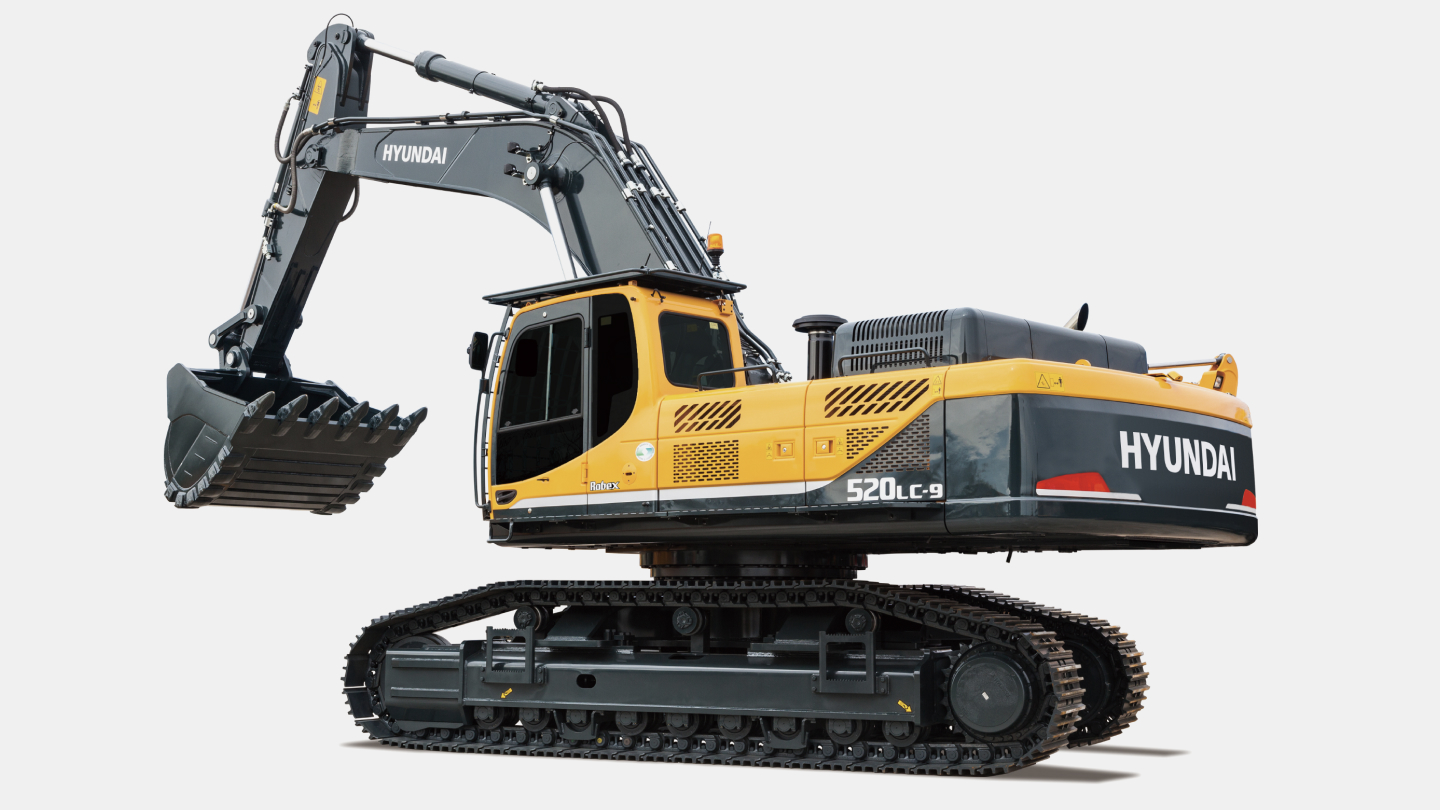

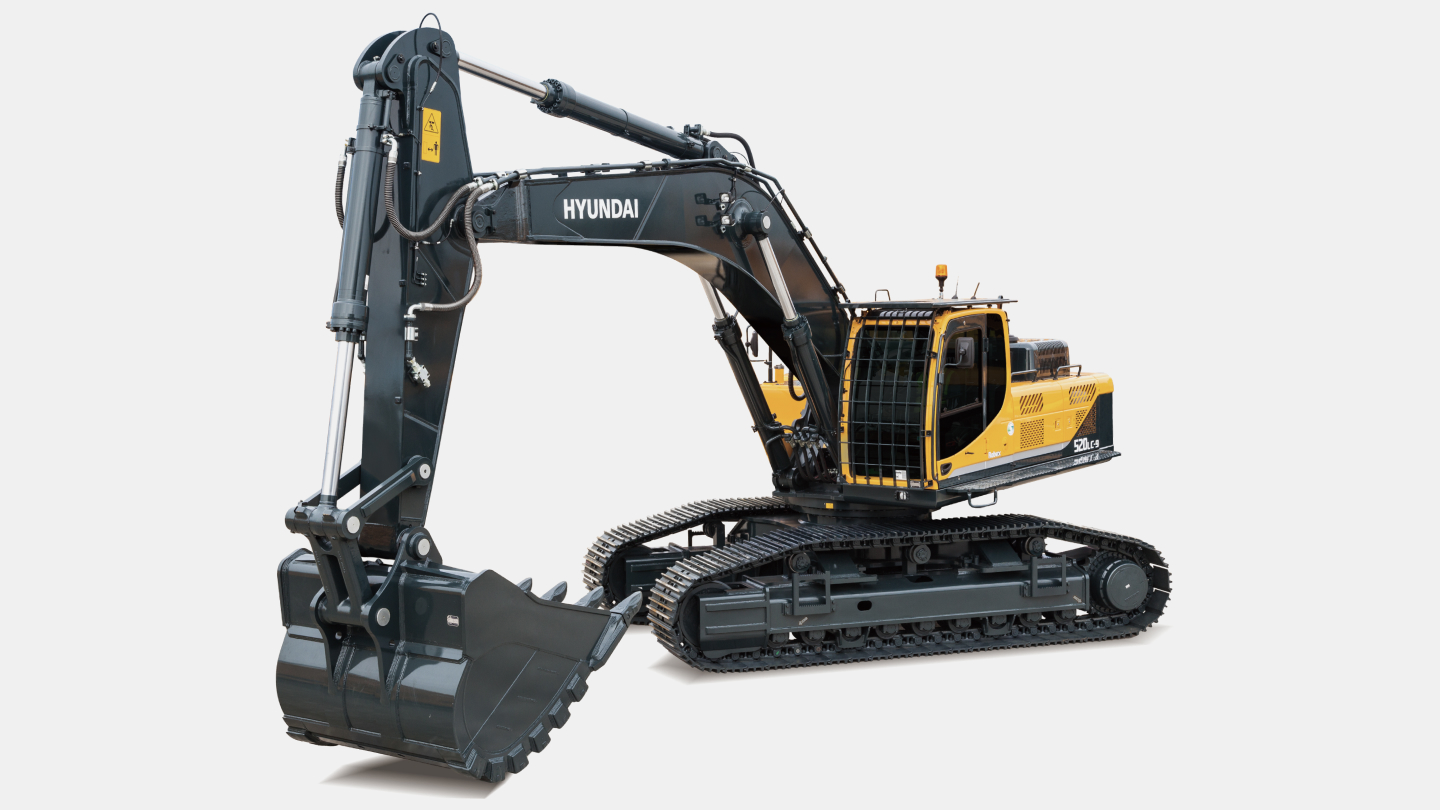

R520LC-9
-
Type
Large Excavators
-
Operating Weight
51 ton
-
Emission
TIER 3
-
Rated Power
357 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
51 ton
Bucket Capacity
2.15 m³
-
Engine
Emission
TIER 3
Engine model
CUMMINS QSM11
Rated Power
357 hp / 1,900 rpm
Max. Torque
171 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x370 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
621 ℓ
Hydraulic Tank
262 ℓ
-
Performance
Swing Speed
9 rpm
Travel Speed
5 km/h
Max. Traction Force
38,500 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
32,510 kgf
Arm Digging Force (ISO)
22,250 kgf
-
Dimensions
Overall Length
12,060 mm
Overall Width
3,640 mm
Overall Height
3,850 mm
Tail Swing Radius
3,750 mm
Tumbler Distance
4,470 mm
Ground Clearance
770 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,080 mm
Max. Digging Depth
7,590 mm
Max. Digging Height
11,080 mm
Max. Dumping Height
7,760 mm
Min. Swing Radius
4,830 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
