Excavators

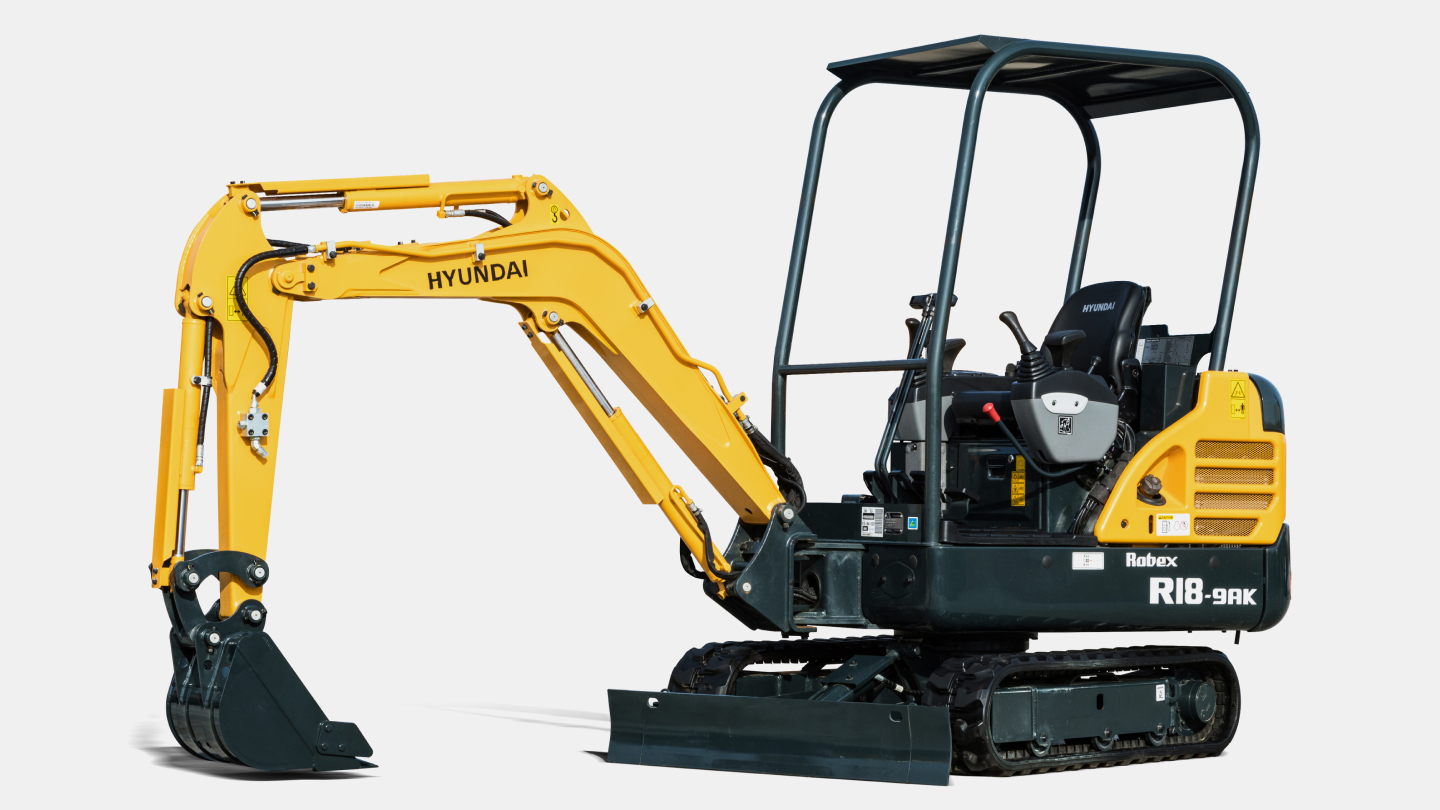

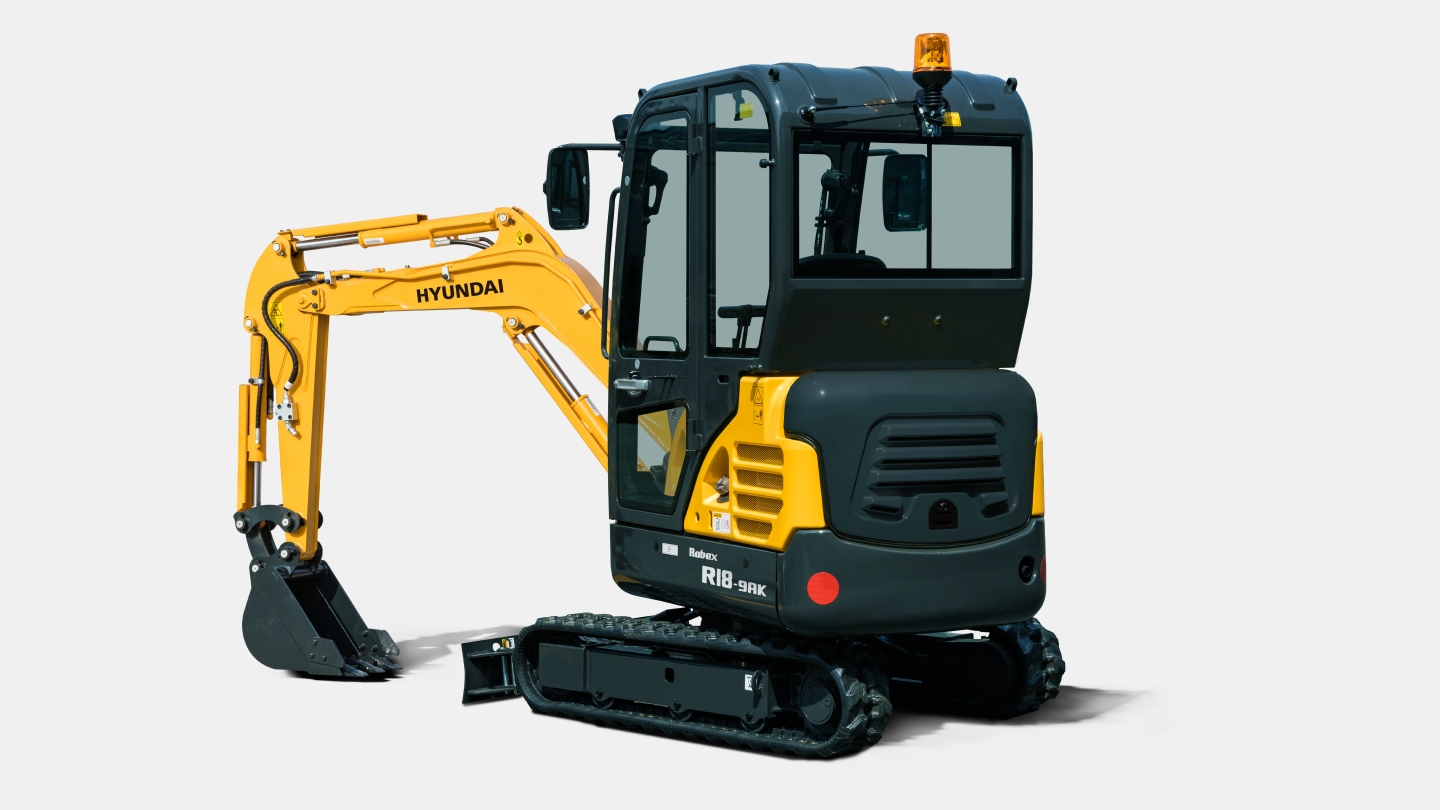

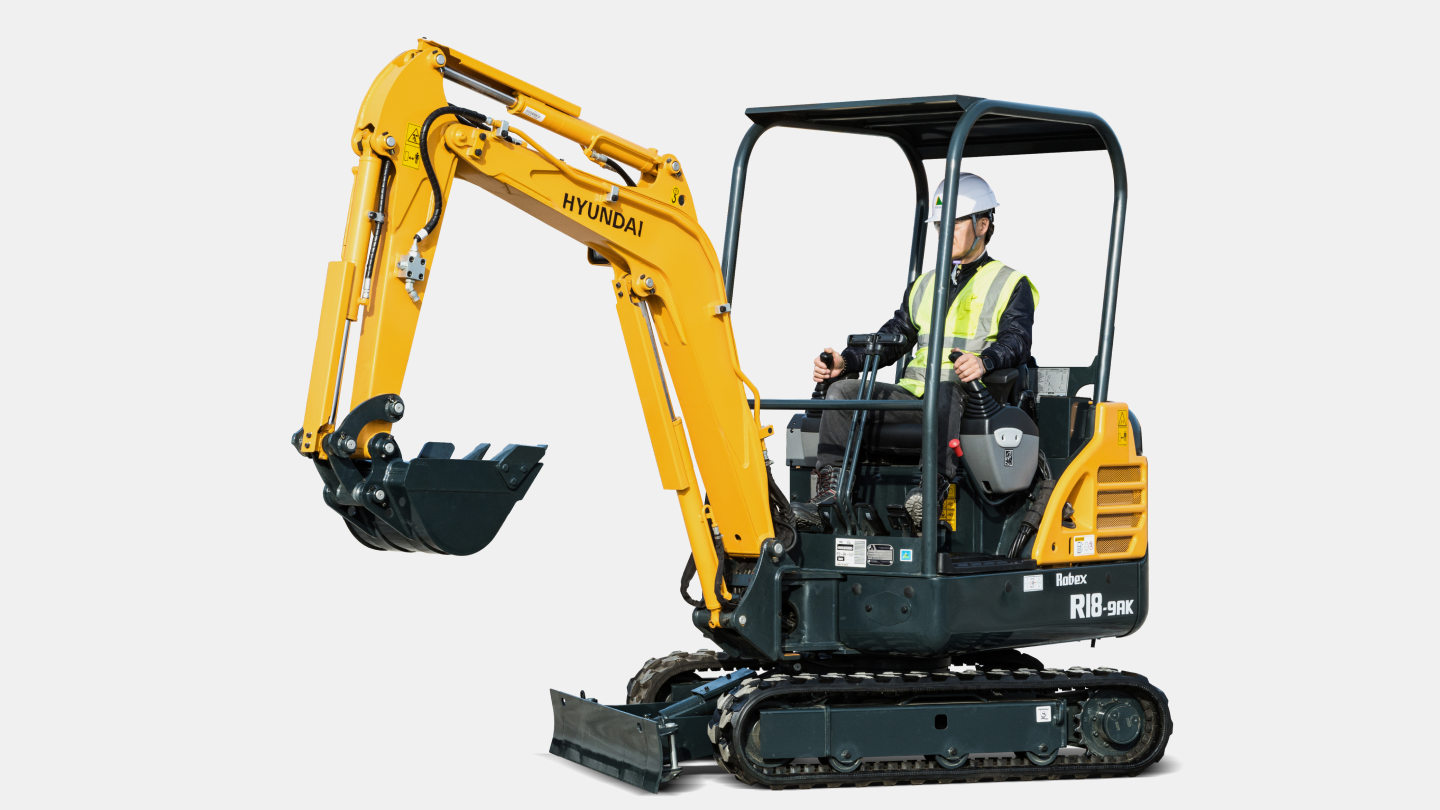

R18-9AK
-
Type
Compact Excavators
-
Operating Weight
1.855 ton
-
Emission
TIER 4
-
Rated Power
162 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
1.855 ton
Bucket Capacity
0.04 m³
-
Engine
Emission
TIER 4
Engine model
KUBOTA D902
Rated Power
162 hp / 2,400 rpm
Max. Torque
5.57 kgf·m / 1,800 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x18.8+10.8 ℓ/min
Implement Circuit
210 kgf/cm²
-
Tank Capacity
Fuel Tank
21 ℓ
Hydraulic Tank
20 ℓ
-
Performance
Swing Speed
9.1 rpm
Travel Speed
3.9 km/h
Max. Traction Force
1,420 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
1,540 kgf
Arm Digging Force (ISO)
960 kgf
-
Dimensions
Overall Length
3,860 mm
Overall Width
1,270 mm
Overall Height
2,300 mm980~1270mm
Tail Swing Radius
1,065 mm
Tumbler Distance
1,230 mm
Ground Clearance
150 mm
-
Operating Range
Boom Length
1,800 mm
Arm Length
960 mm
Max. Digging Reach
3,960 mm
Max. Digging Depth
2,245 mm
Max. Digging Height
3,675 mm
Max. Dumping Height
2,575 mm
Min. Swing Radius
1,660 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
