Excavators

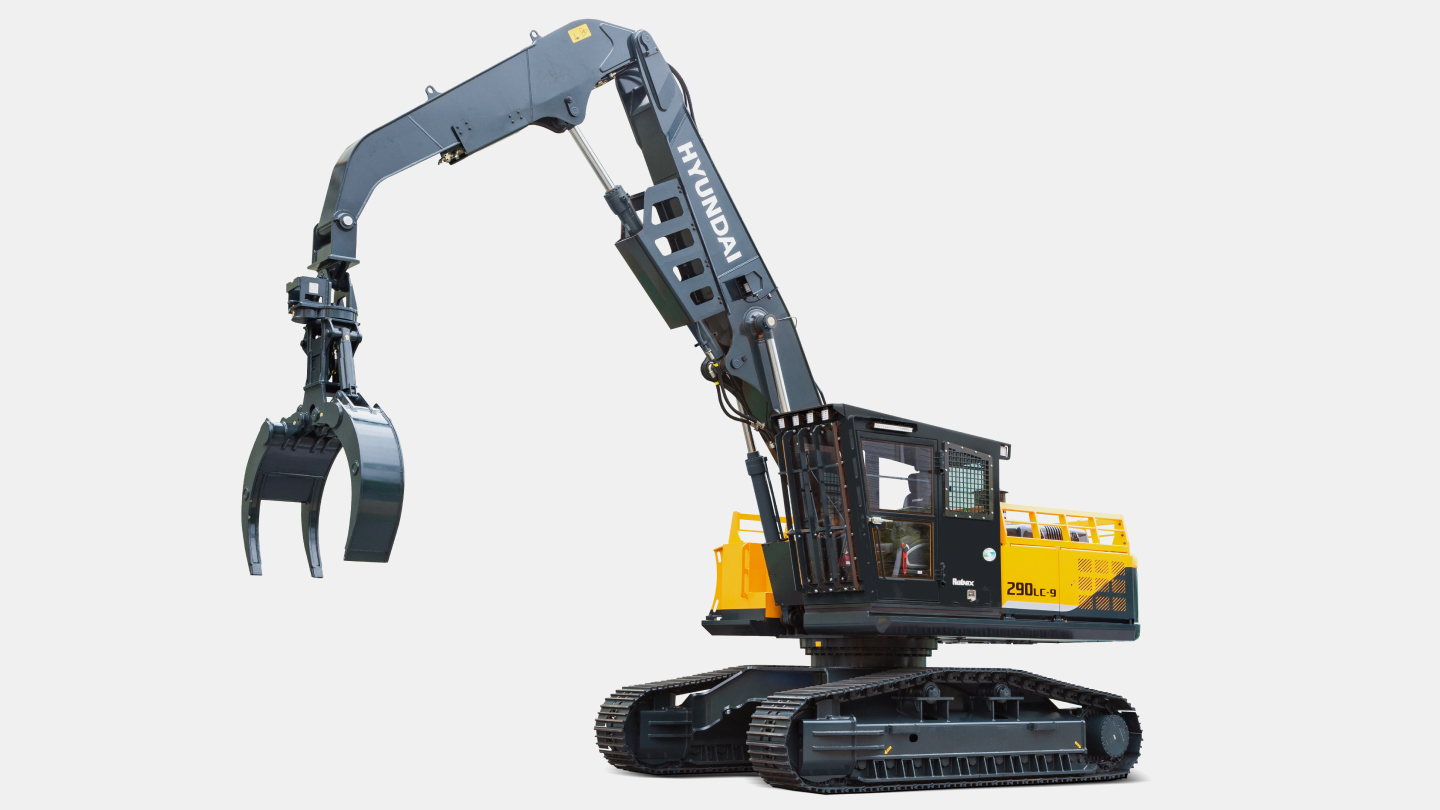

R290LC-9 LR
-
Type
Large Excavators
-
Operating Weight
33.325 ton
-
Emission
TIER 2
-
Rated Power
227 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
33.325 ton
Bucket Capacity
0.52 m³
-
Engine
Emission
TIER 2
Engine model
HYUNDAI HE 6.7
Rated Power
227 hp / 1,900 rpm
Max. Torque
97 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x252 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
500 ℓ
Hydraulic Tank
190 ℓ
-
Performance
Travel Speed
5 km/h
Max. Traction Force
27,300 kgf
Bucket Digging Force (ISO)
8,200 kgf
Arm Digging Force (ISO)
4,900 kgf
-
Dimensions
Overall Length
14,560 mm
Overall Width
3,400 mm
Overall Height
3,560 mm
Tail Swing Radius
3,200 mm
Tumbler Distance
4,030 mm
Ground Clearance
505 mm
-
Operating Range
Boom Length
10,200 mm
Arm Length
7,850 mm
Max. Digging Reach
18,510 mm
Max. Digging Depth
14,820 mm
Max. Digging Height
14,500 mm
Max. Dumping Height
12,190 mm
Min. Swing Radius
6,250 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
