Excavators

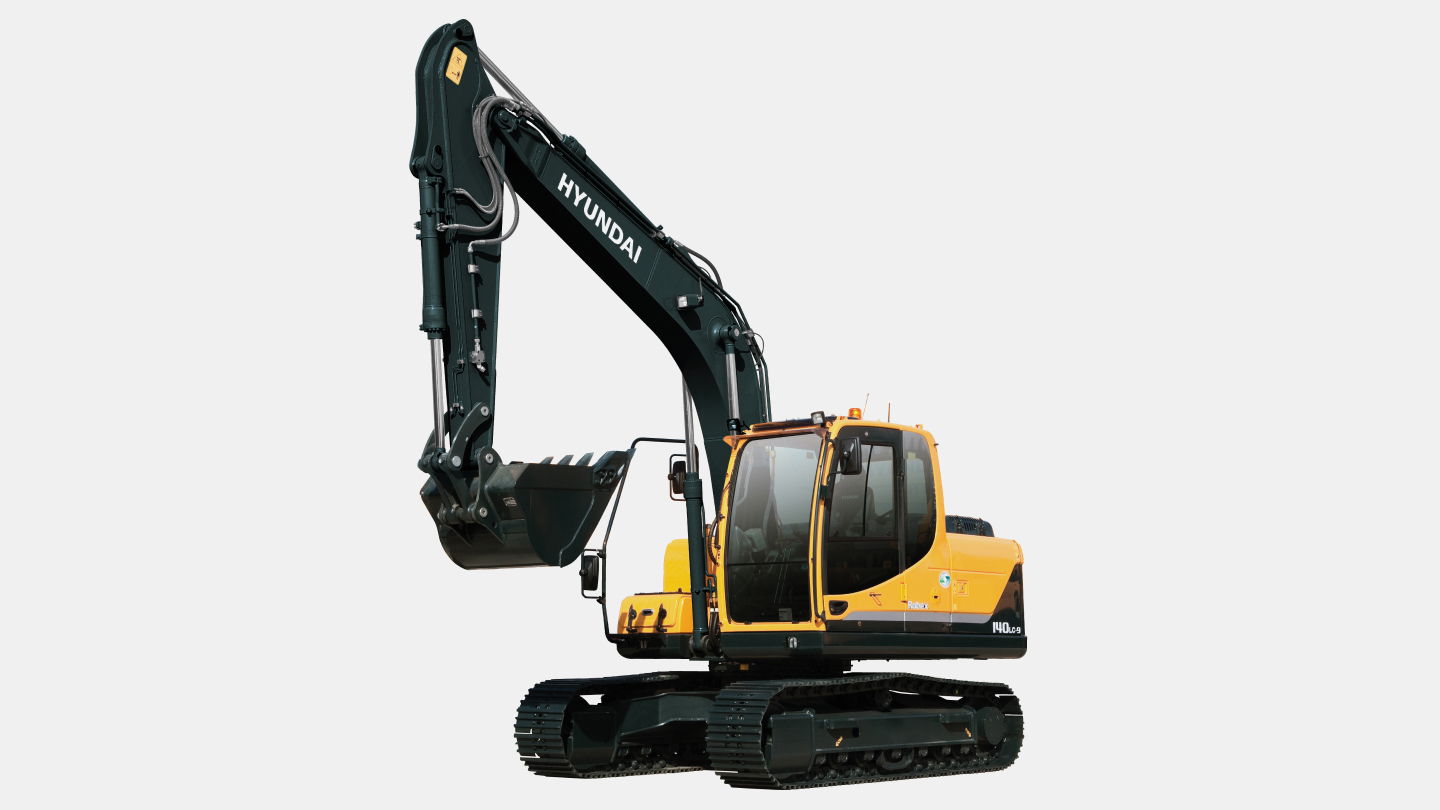

R140LC-9
-
Type
Compact Excavators
-
Operating Weight
13.98 ton
-
Emission
TIER 3
-
Rated Power
88 kW / 2,000 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
13.98 ton
Bucket Capacity
0.58 m³
-
Engine
Emission
TIER 3
Engine model
MITSUBISHI d04Fd-TAA
Rated Power
88 kW / 2,000 rpm
Max. Torque
45.4 kgf·m / 1,700 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x123.5 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
124 ℓ
-
Performance
Swing Speed
12 rpm
Travel Speed
5.5 km/h
Max. Traction Force
13,300 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
10,400 kgf[11,290]kgf
Arm Digging Force (ISO)
6,700 kgf[7,270]kgf
-
Dimensions
Overall Length
7,820 mm
Overall Width
2,600 mm
Overall Height
2,860 mm
Tail Swing Radius
2,330 mm
Tumbler Distance
3,000 mm
Ground Clearance
440 mm
-
Operating Range
Boom Length
4,600 mm
Arm Length
2,500 mm
Max. Digging Reach
8,330 mm
Max. Digging Depth
5,550 mm
Max. Digging Height
8,500 mm
Max. Dumping Height
6,060 mm
Min. Swing Radius
2,650 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
