Excavators

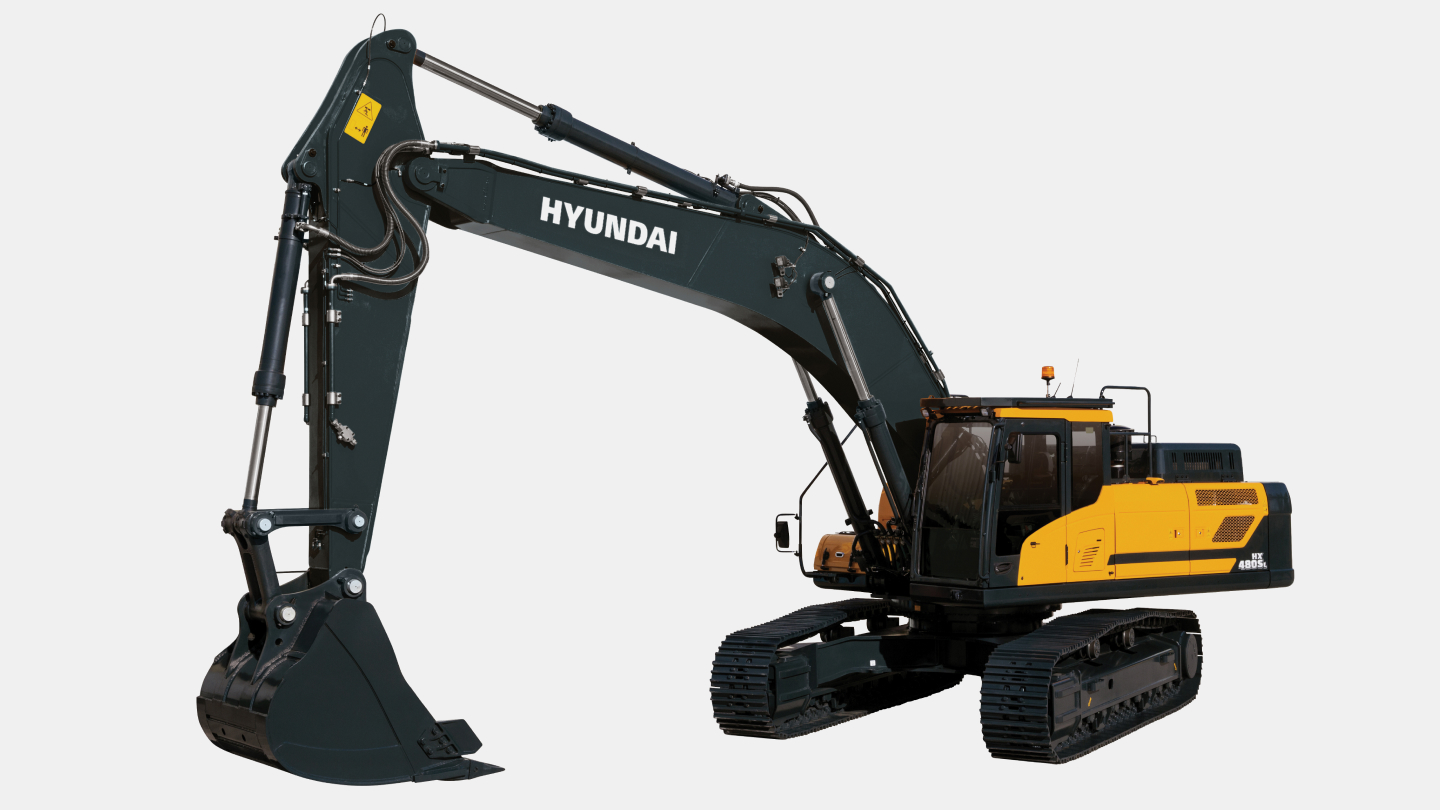

HX480SL
-
Type
Large Excavators
-
Operating Weight
49.515 ton
-
Emission
~TIER 2
-
Rated Power
249 kW / 2,000 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
49.515 ton
Bucket Capacity
2.2 m³
-
Engine
Emission
~TIER 2
Engine model
CUMMINS QSM11
Rated Power
249 kW / 2,000 rpm
Max. Torque
183 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x380 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
660 ℓ
Hydraulic Tank
262 ℓ
-
Performance
Swing Speed
8.5 rpm
Travel Speed
5 km/h
Max. Traction Force
37,300 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
27,600 kgf
Arm Digging Force (ISO)
22,040 kgf
-
Dimensions
Overall Length
12,040 mm
Overall Width
3,340 mm
Overall Height
3,790 mm
Tail Swing Radius
3,720 mm
Tumbler Distance
4,470 mm
Ground Clearance
770 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,040 mm
Max. Digging Depth
7,760 mm
Max. Digging Height
11,030 mm
Max. Dumping Height
7,640 mm
Min. Swing Radius
4,770 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
