Excavators

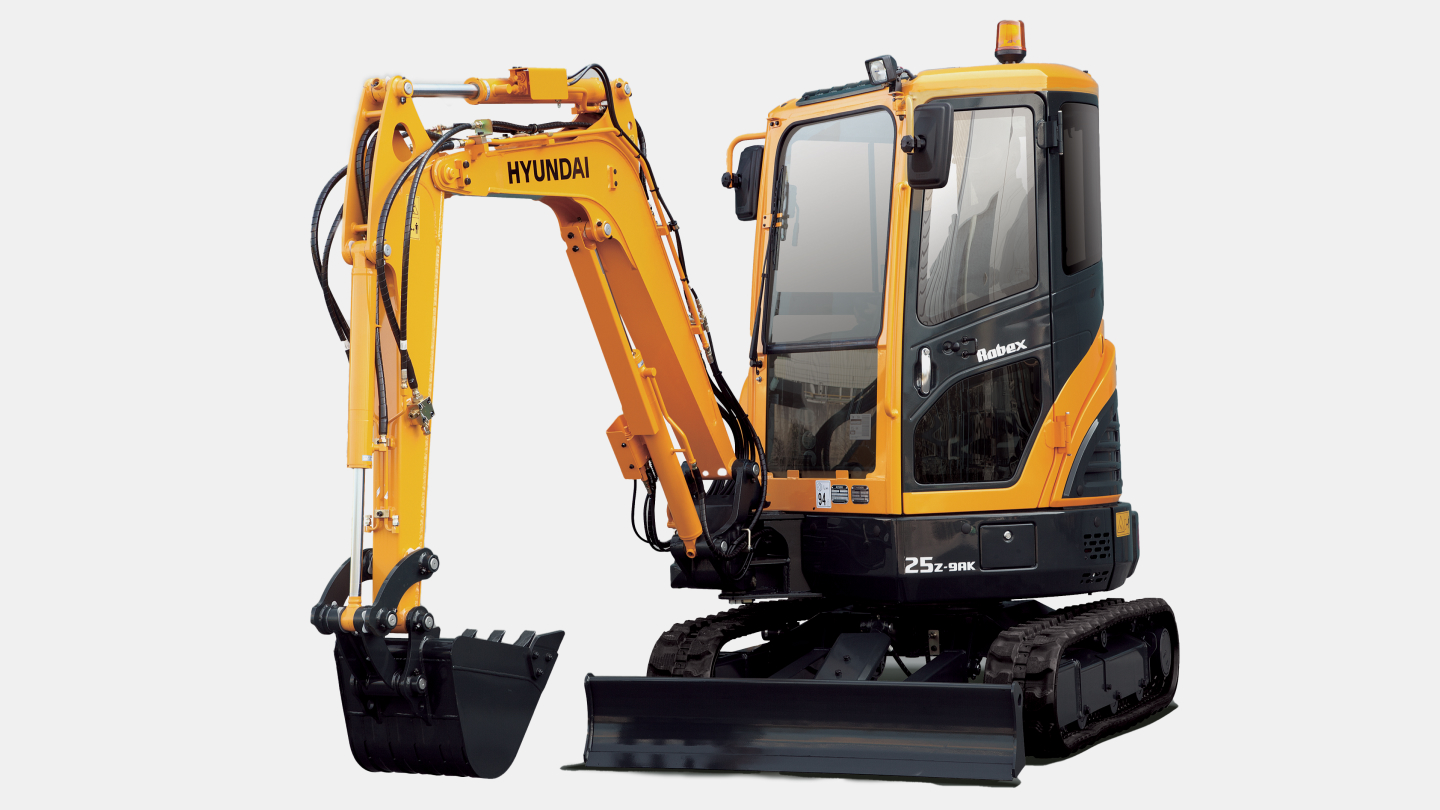

R25Z-9AK
-
Type
Compact Excavators
-
Operating Weight
2.58 ton
-
Emission
TIER 4
-
Rated Power
24.9 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
2.58 ton
Bucket Capacity
0.07 m³
-
Engine
Emission
TIER 4
Engine model
KUBOTA D1305
Rated Power
24.9 hp / 2,400 rpm
Max. Torque
8.3 kgf·m / 1,600 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x27.6+19.6 ℓ/min
Implement Circuit
220 kgf/cm²
-
Tank Capacity
Fuel Tank
30 ℓ
Hydraulic Tank
27 ℓ
-
Performance
Swing Speed
9.1 rpm
Travel Speed
4.3 km/h
Max. Traction Force
2,400 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
2,150 kgf
Arm Digging Force (ISO)
1,490 kgf
-
Dimensions
Overall Length
4,030 mm
Overall Width
1,500 mm
Overall Height
2,500 mm
Tail Swing Radius
775 mm
Tumbler Distance
1,490 mm
Ground Clearance
290 mm
-
Operating Range
Boom Length
1,945 mm
Arm Length
1,120 mm
Max. Digging Reach
4,480 mm
Max. Digging Depth
2,420 mm
Max. Digging Height
4,090 mm
Max. Dumping Height
2,885 mm
Min. Swing Radius
2,000 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
