Excavators

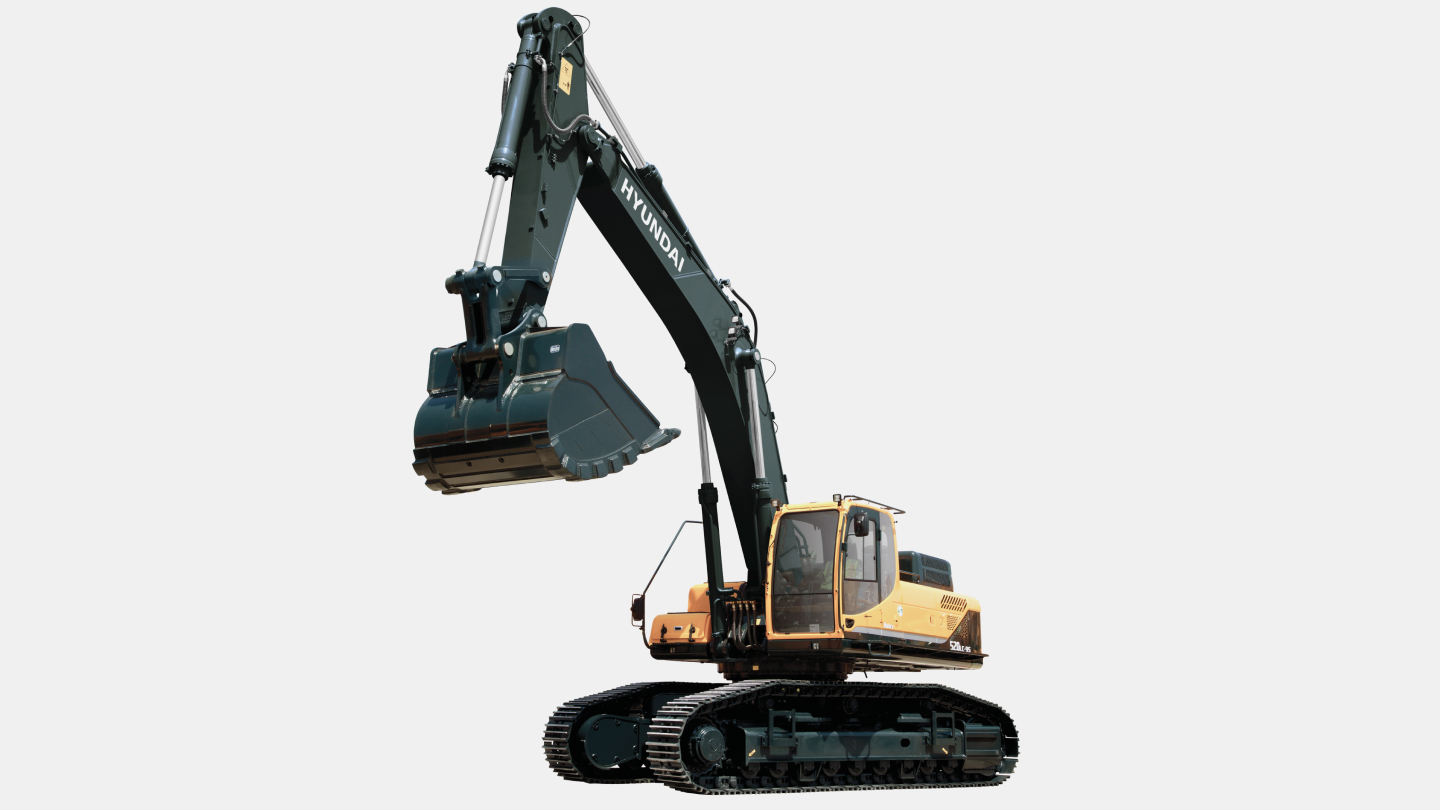

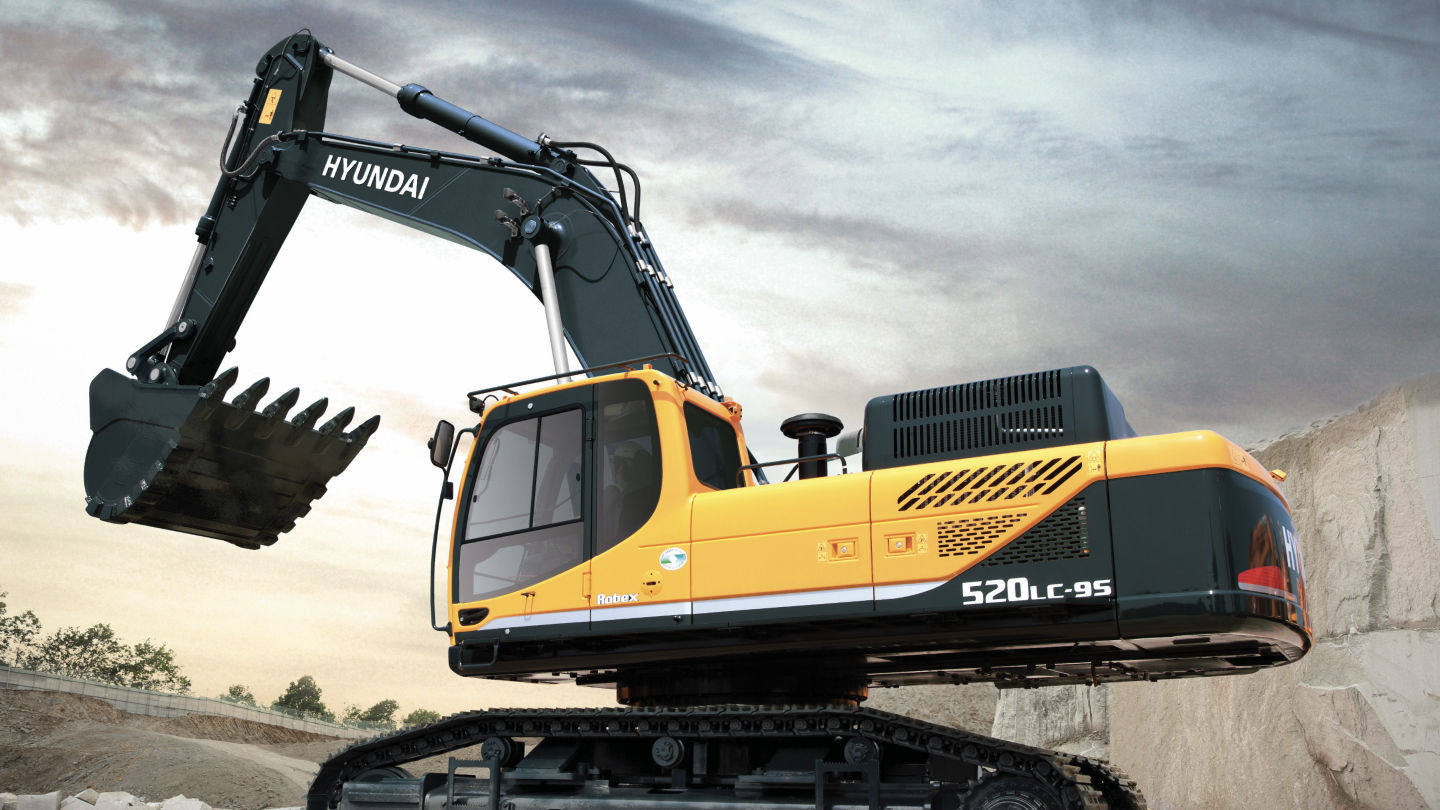

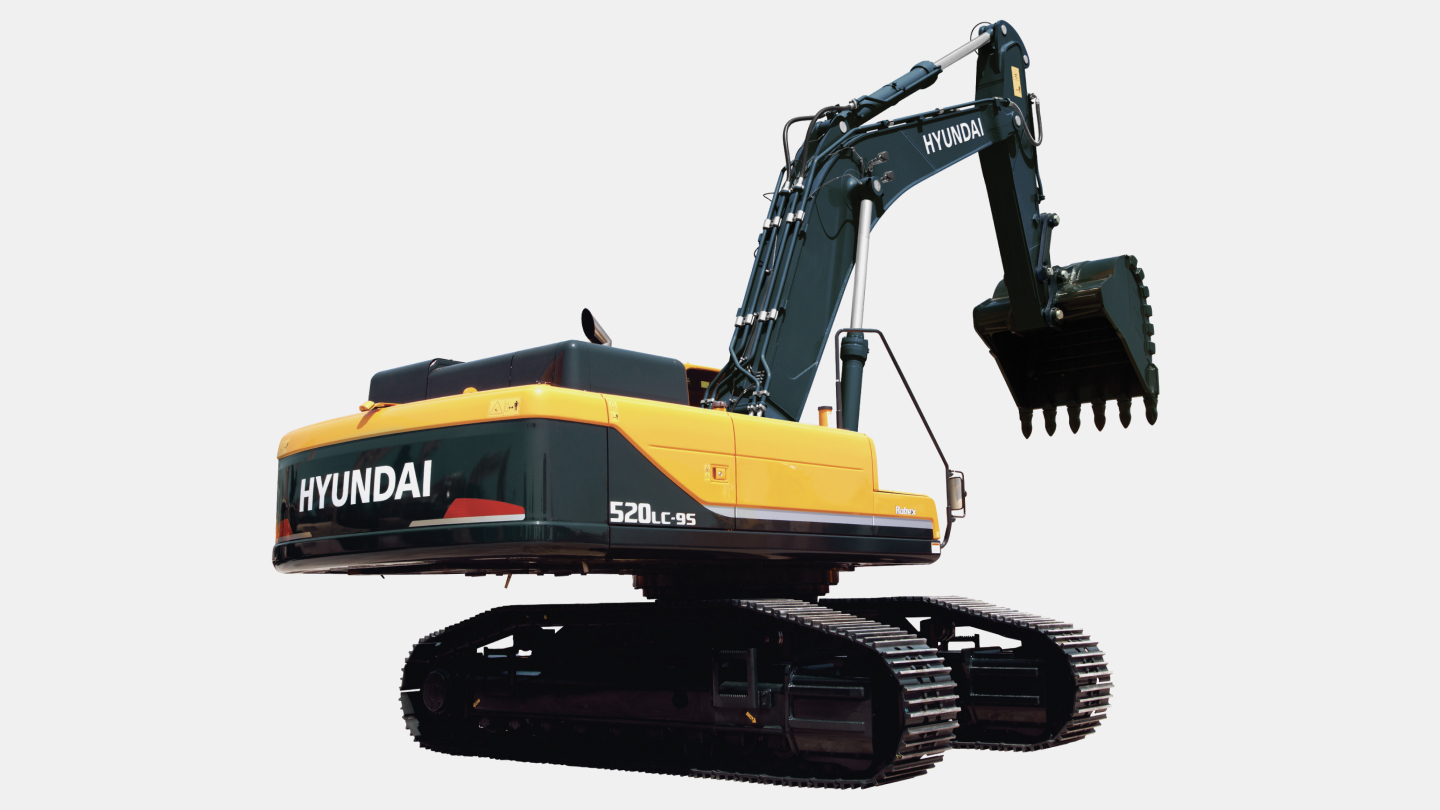

R520LC-9S
-
Type
Large Excavators
-
Operating Weight
52.4 ton
-
Emission
TIER 2
-
Rated Power
353 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
52.4 ton
Bucket Capacity
2.15 m³
-
Engine
Emission
TIER 2
Engine model
CUMMINS QSM11
Rated Power
353 hp / 1,900 rpm
Max. Torque
183 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x380 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
621 ℓ
Hydraulic Tank
262 ℓ
-
Performance
Swing Speed
9 rpm
Travel Speed
5 km/h
Max. Traction Force
38,500 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
318.8 kgf
Arm Digging Force (ISO)
218.2 kgf
-
Dimensions
Overall Length
12,060 mm
Overall Width
3,540 mm
Overall Height
3,850 mm
Tail Swing Radius
3,750 mm
Tumbler Distance
4,470 mm
Ground Clearance
770 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,040 mm
Max. Digging Depth
7,610 mm
Max. Digging Height
11,180 mm
Max. Dumping Height
7,780 mm
Min. Swing Radius
4,770 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
