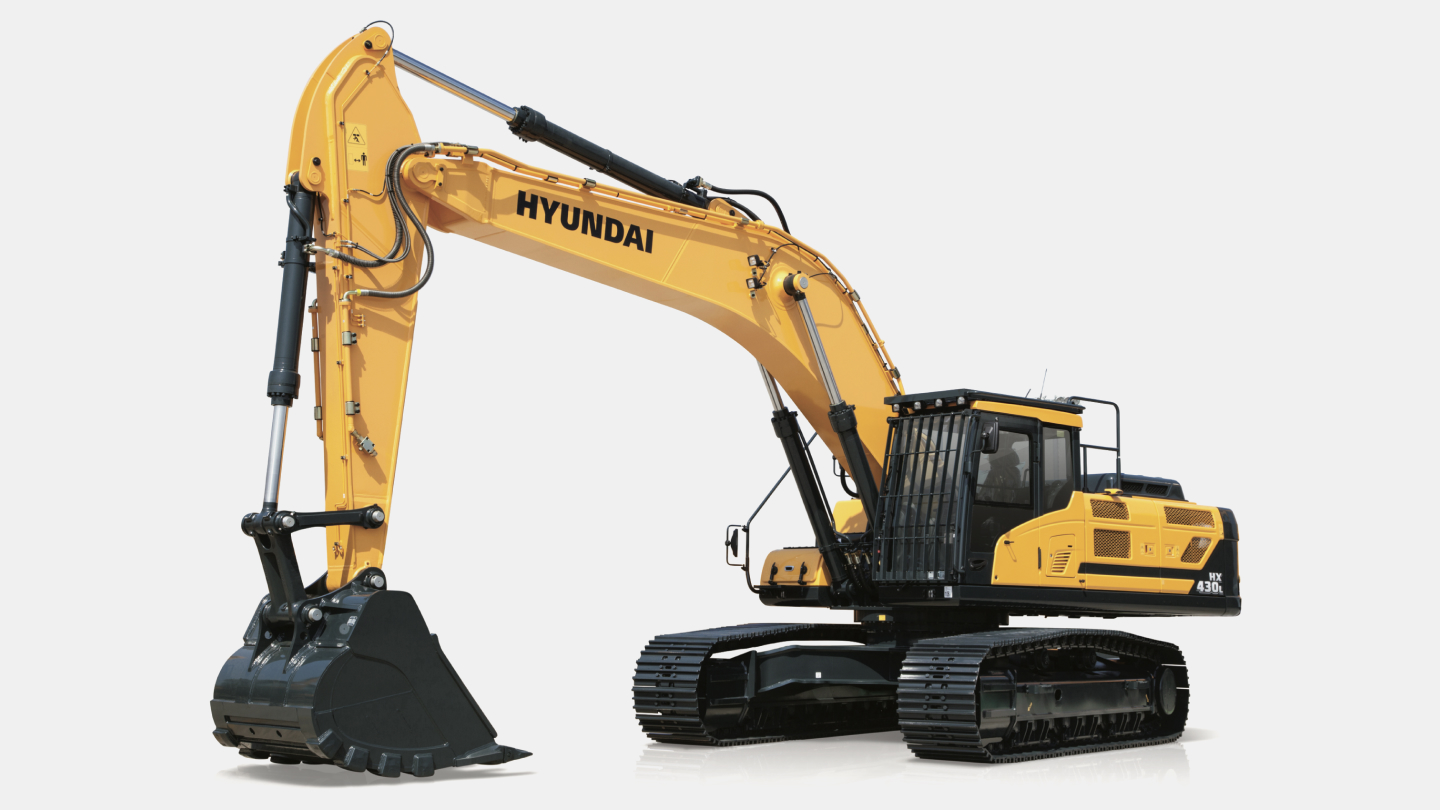

HX430L

  • Type

    Large Excavators

  • Operating Weight

    44.12  ton

  • Emission

    TIER 4

  • Rated Power

    372  hp / 1,800 rpm

  • Catalog

Specifications

  • General

    Type

    Large Excavators

    Operating Weight

    44.12  ton

    Bucket Capacity

    1.9  m³

  • Engine

    Emission

    TIER 4

    Engine model

    CUMMINS QSL9

    Rated Power

    372  hp / 1,800 rpm

    Max. Torque

    166  kgf·m / 1,500 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    2x333  ℓ/min

    Implement Circuit

    330  kgf/cm²

  • Tank Capacity

    Fuel Tank

    600  ℓ

    Hydraulic Tank

    210  ℓ

  • Performance

    Swing Speed

    9.2  rpm

    Travel Speed

    5.3  km/h

    Max. Traction Force

    33,500  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    25,420  kgf

    Arm Digging Force (ISO)

    18,440  kgf

  • Dimensions

    Overall Length

    11,400  mm

    Overall Width

    3,340  mm

    Overall Height

    3,630  mm

    Tail Swing Radius

    3,615  mm

    Tumbler Distance

    4,470  mm

    Ground Clearance

    565  mm

  • Operating Range

    Boom Length

    6,500  mm

    Arm Length

    3,200  mm

    Max. Digging Reach

    11,160  mm

    Max. Digging Depth

    7,500  mm

    Max. Digging Height

    10,290  mm

    Max. Dumping Height

    7,200  mm

    Min. Swing Radius

    4,490  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
