Excavators

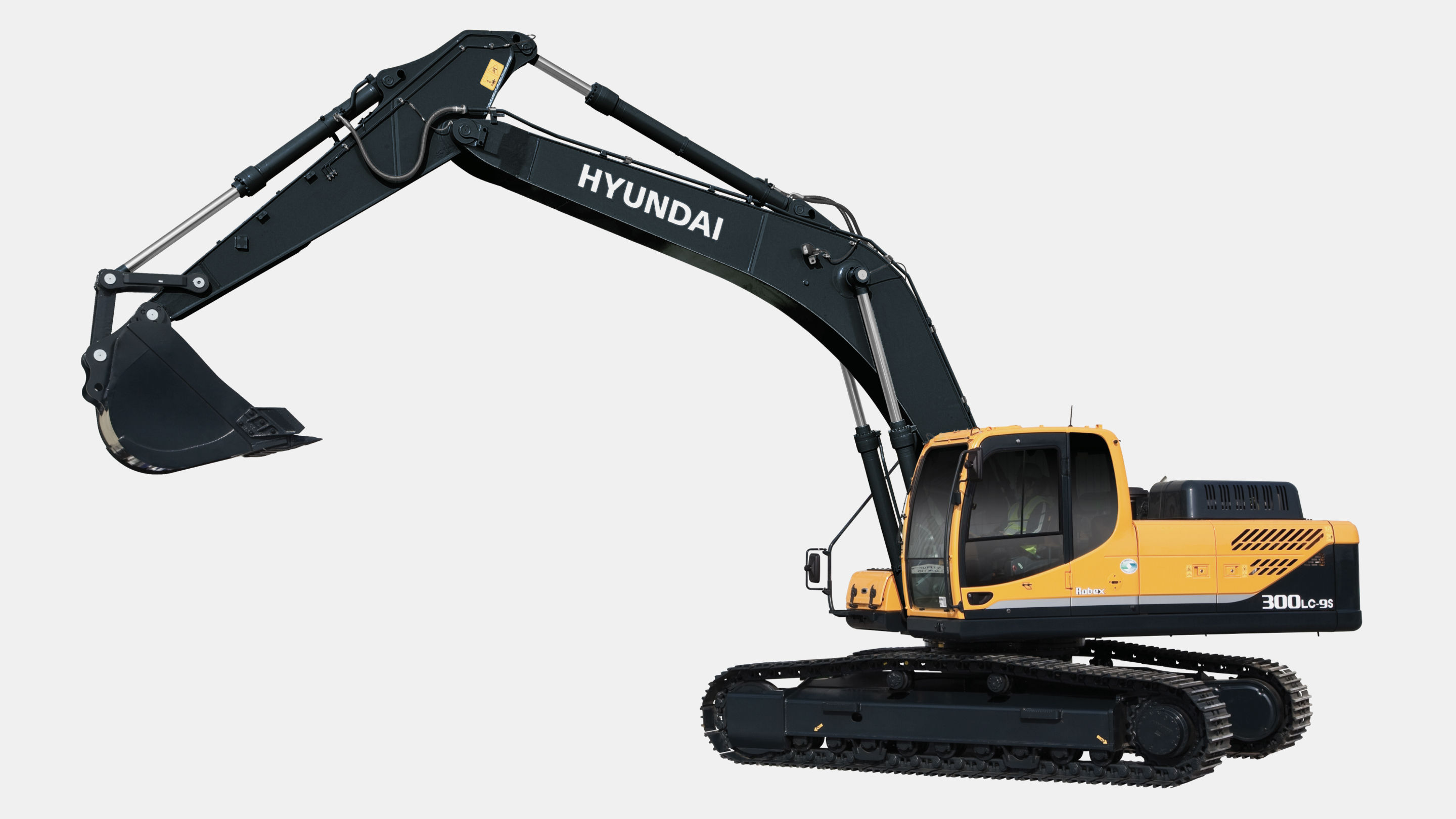

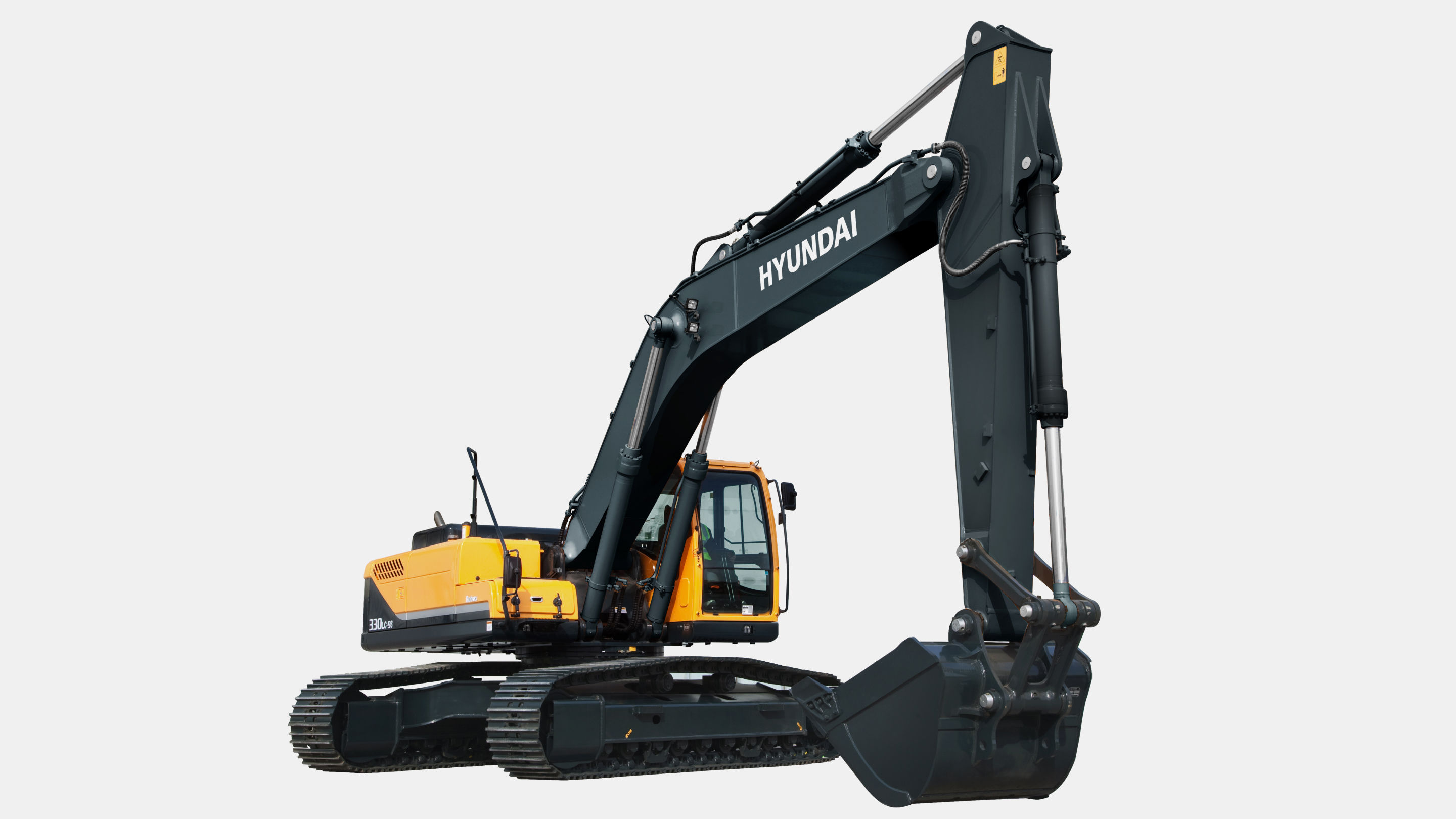

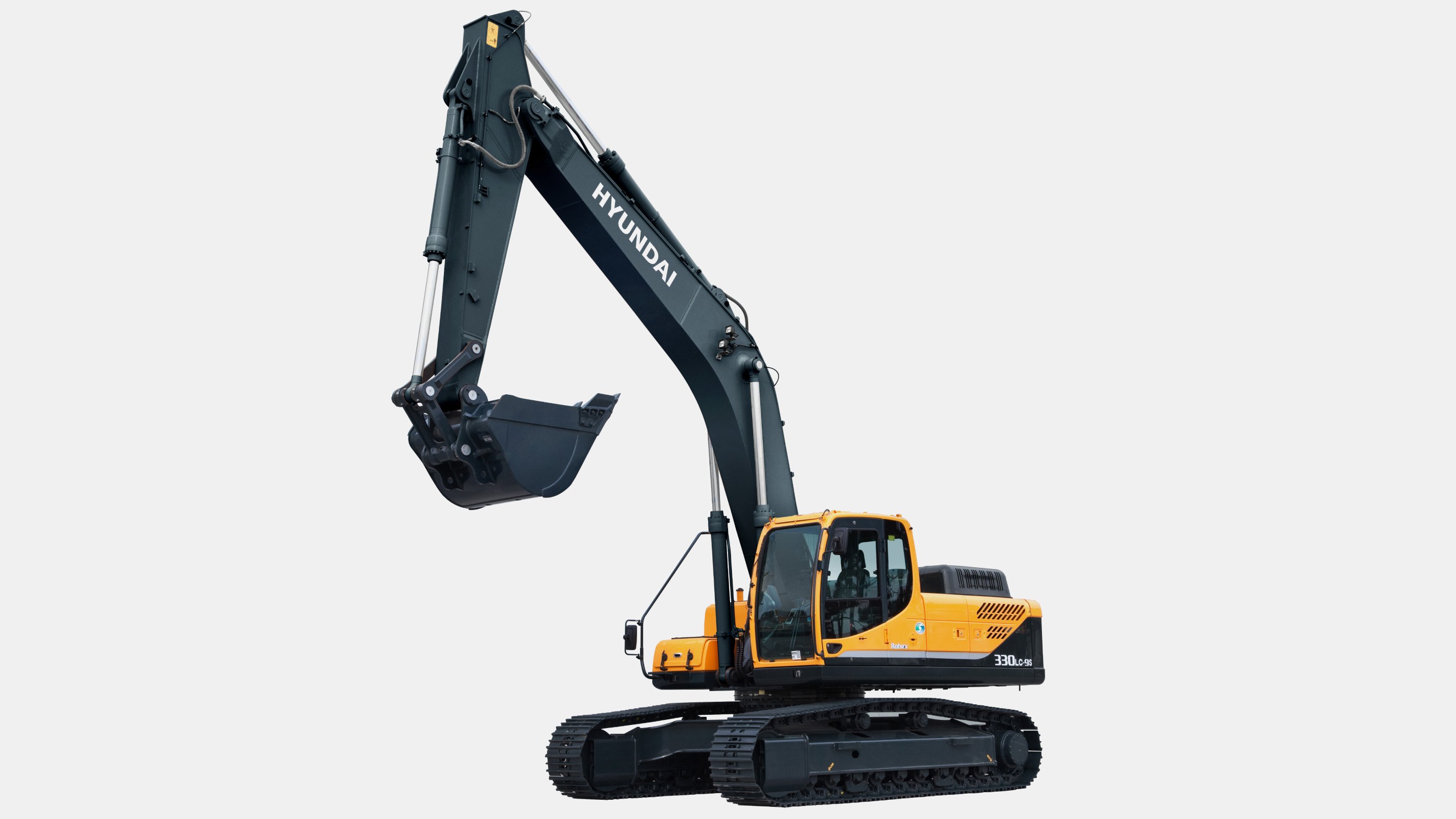

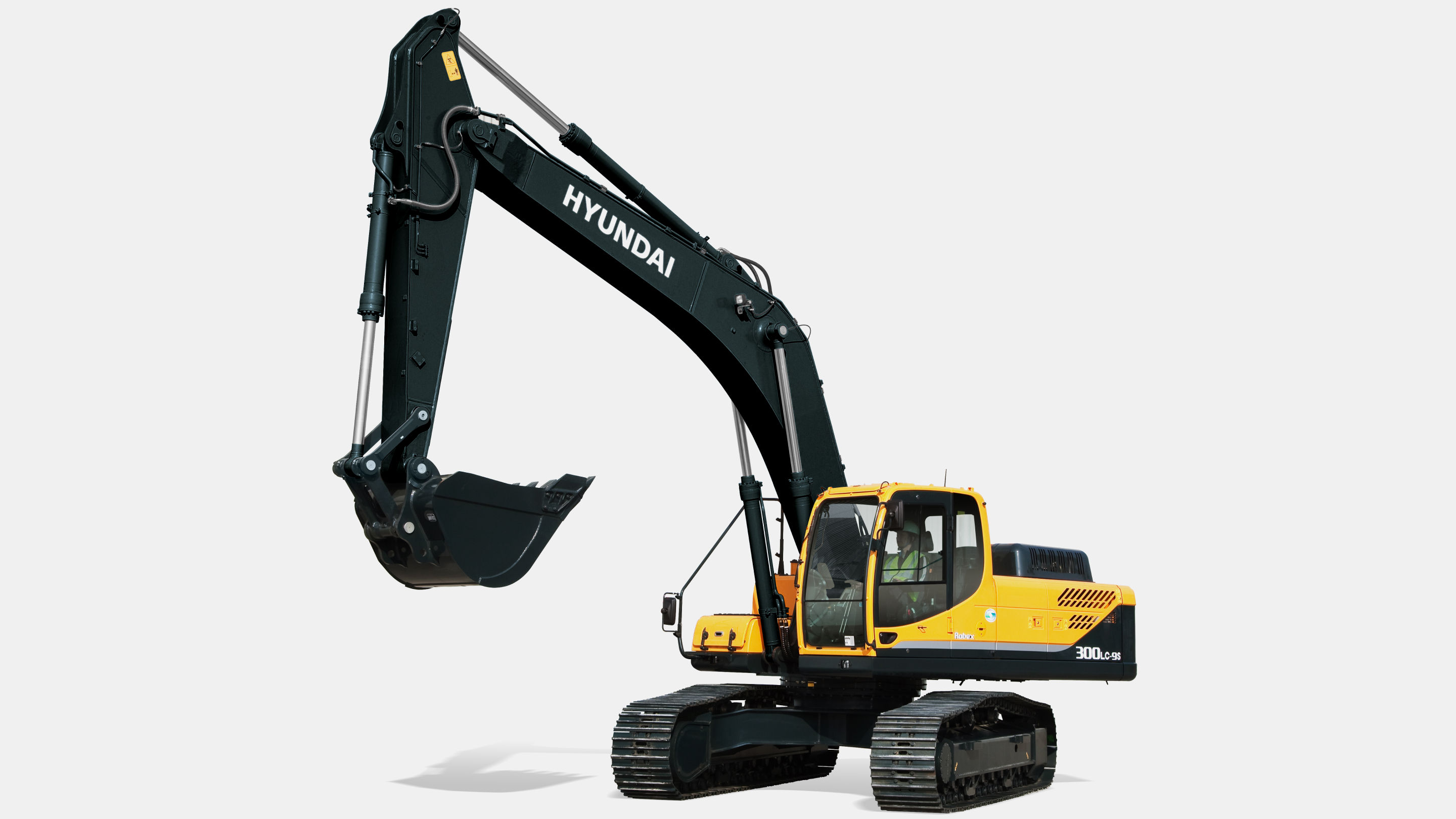

R330LC-9S
-
Type
Large Excavators
-
Operating Weight
0 ton
-
Emission
~TIER 2
-
Rated Power
0.0 kW / 0 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
0 ton
Bucket Capacity
0 m³
-
Engine
Emission
~TIER 2
Engine model
HYUNDAI HM8.3
Rated Power
0.0 kW / 0 rpm
Max. Torque
124.3 kgf·m / 1,300 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x282 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
500 ℓ
Hydraulic Tank
190 ℓ
-
Performance
Swing Speed
9.5 rpm
Travel Speed
5.8 km/h
Max. Traction Force
29,500 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
23,453 kgf
Arm Digging Force (ISO)
16,285 kgf
-
Dimensions
Overall Length
10,980 mm
Overall Width
3,280 mm
Overall Height
3,380 mm
Tail Swing Radius
3,380 mm
Tumbler Distance
4,030 mm
Ground Clearance
500 mm
-
Operating Range
Boom Length
6,450 mm
Arm Length
3,200 mm
Max. Digging Reach
11,140 mm
Max. Digging Depth
7,370 mm
Max. Digging Height
10,310 mm
Max. Dumping Height
7,240 mm
Min. Swing Radius
4,470 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
