Excavators

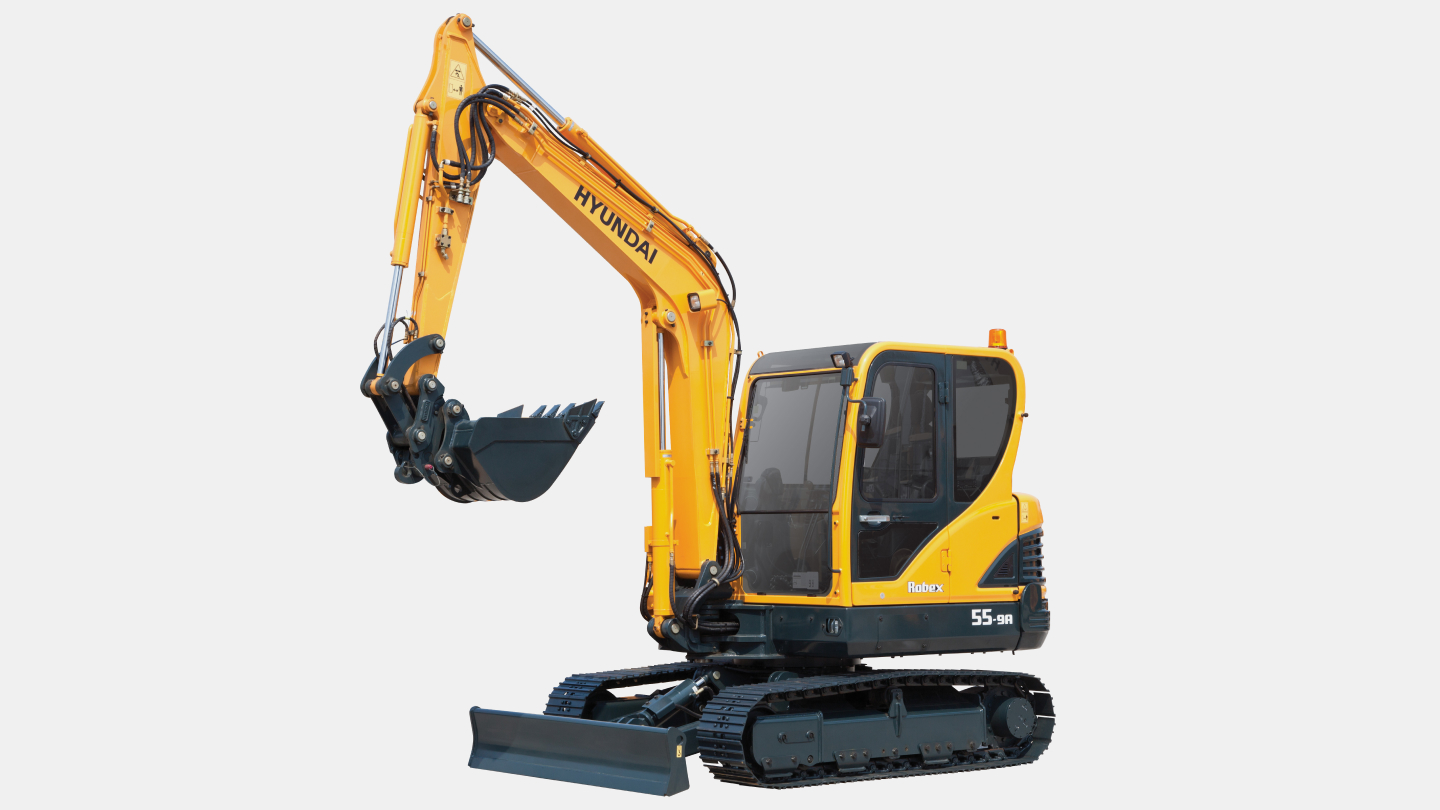

R55-9A
-
Type
Compact Excavators
-
Operating Weight
5.65 ton
-
Emission
TIER 4
-
Rated Power
66.9 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
5.65 ton
Bucket Capacity
0.18 m³
-
Engine
Emission
TIER 4
Engine model
YANMAR 4TNV98C
Rated Power
66.9 hp / 2,400 rpm
Max. Torque
24 kgf·m / 1,560 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x57.8 ℓ/min
Implement Circuit
220 kgf/cm²
-
Tank Capacity
Fuel Tank
125 ℓ
Hydraulic Tank
70 ℓ
-
Performance
Swing Speed
9.1 rpm
Travel Speed
4.1 km/h
Max. Traction Force
5,300 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
4,330 kgf
Arm Digging Force (ISO)
3,260 kgf
-
Dimensions
Overall Length
5,900 mm
Overall Width
1,920 mm
Overall Height
2,550 mm
Tail Swing Radius
1,650 mm
Tumbler Distance
1,990 mm
Ground Clearance
380 mm
-
Operating Range
Boom Length
3,000 mm
Arm Length
1,600 mm
Max. Digging Reach
6,150 mm
Max. Digging Depth
3,820 mm
Max. Digging Height
5,780 mm
Max. Dumping Height
4,050 mm
Min. Swing Radius
2,350 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
