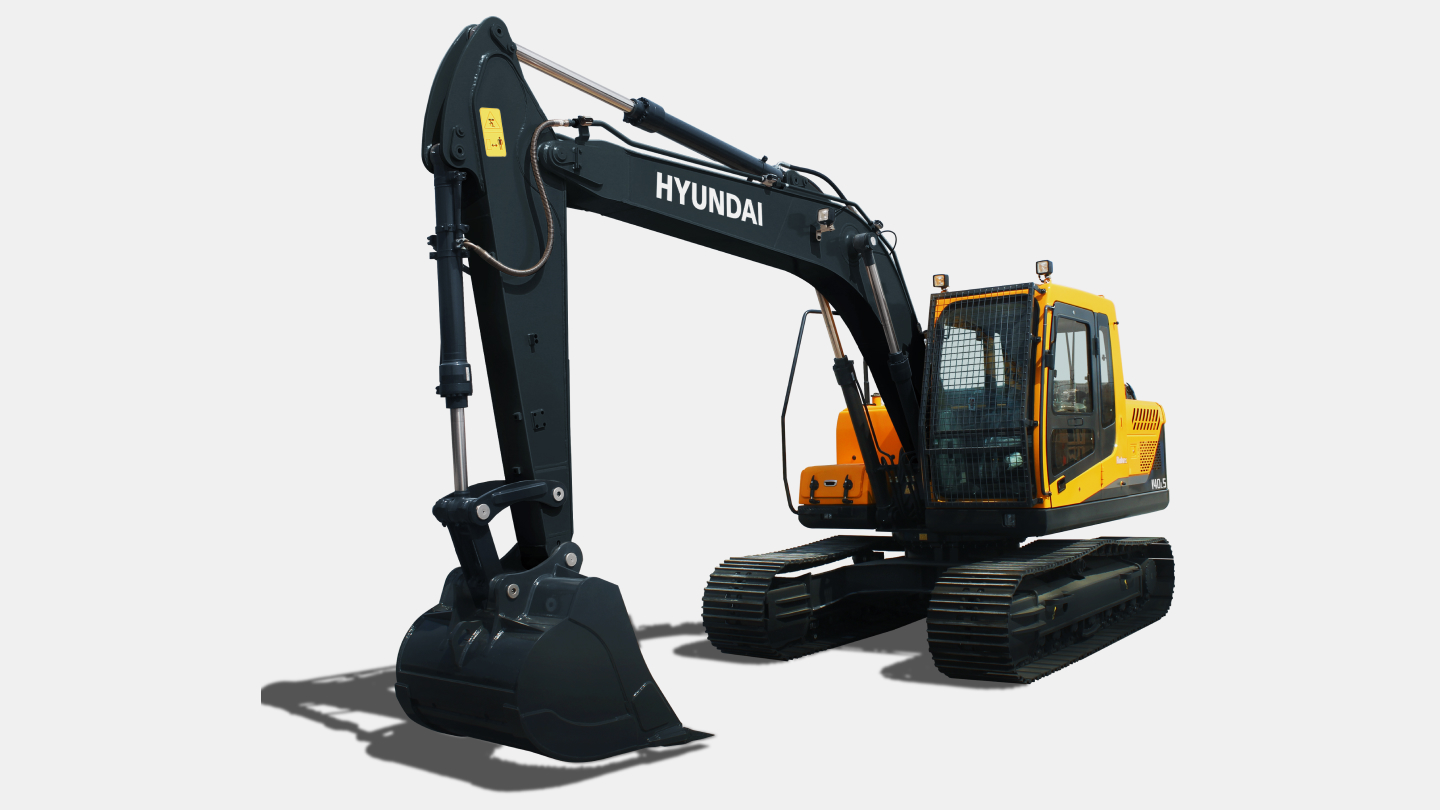

Excavators
Type
Medium Excavators
Operating Weight
13.98  ton
Emission
N/A
Rated Power
105  hp / 2,200 rpm
General
Type
Medium Excavators
Operating Weight
13.98  ton
Bucket Capacity
0.72  m³0.65 / 0.72 m³
Engine
Emission
N/A
Engine model
HYUNDAI HM4.2
Rated Power
105  hp / 2,200 rpm
Max. Torque
37.5  kgf·m / 1,500 rpm
Hydraulic System
Main Pumps Rated Flow
2 x 130  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
270  ℓ
Performance
Swing Speed
12.0  rpm
Travel Speed
5.5  km/h
Max. Traction Force
13,300  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
10,400  kgf
Arm Digging Force (ISO)
6,700  kgf
Dimensions
Overall Length
7,820  mm
Overall Width
2,600  mm
Overall Height
2,780  mm
Tail Swing Radius
2,330  mm
Tumbler Distance
3,000  mm
Ground Clearance
440  mm
Operating Range
Boom Length
4,600  mm
Arm Length
2,500  mm
Max. Digging Reach
8,340  mm
Max. Digging Depth
5,600  mm
Max. Digging Height
8,520  mm
Max. Dumping Height
6,080  mm
Min. Swing Radius
2,620  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
