Excavators

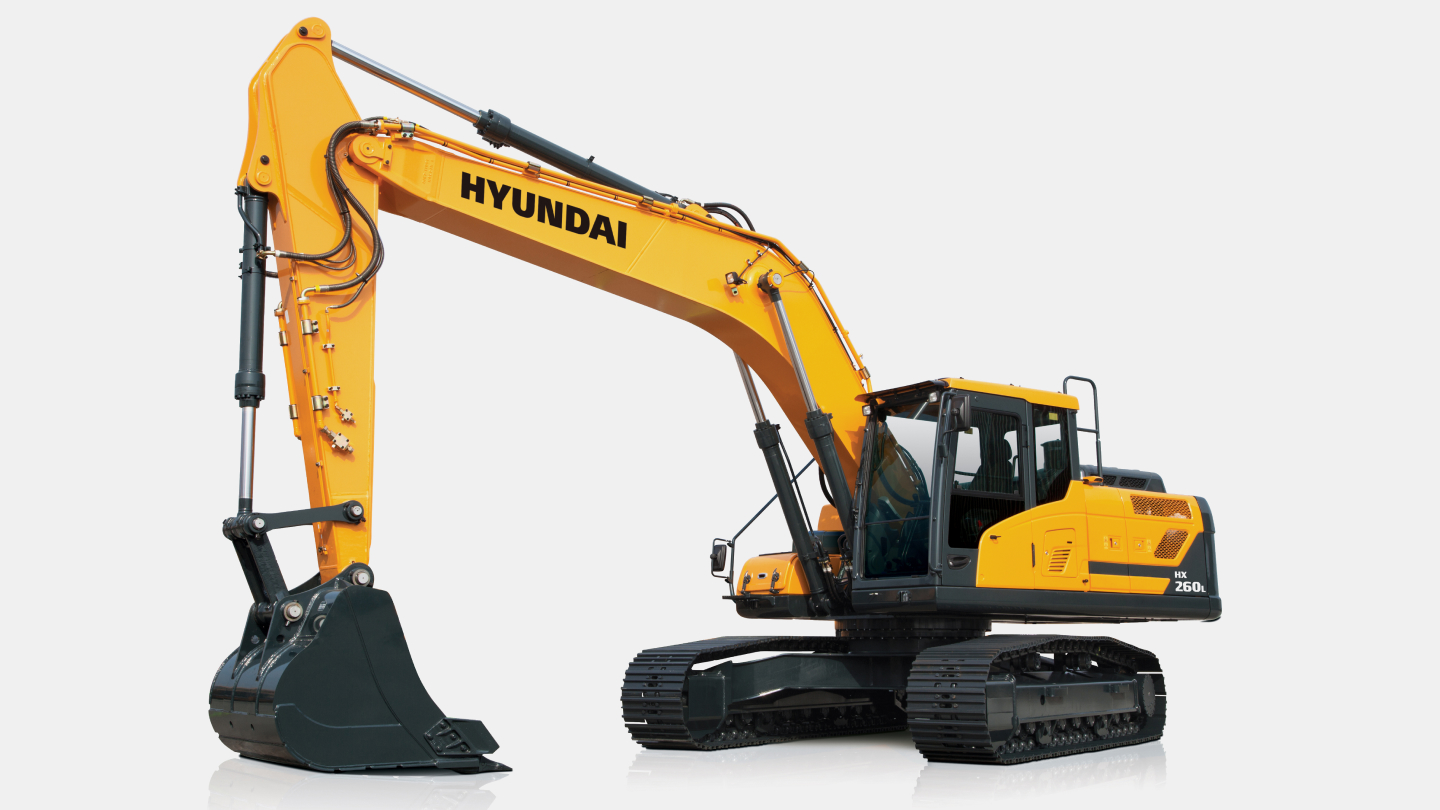

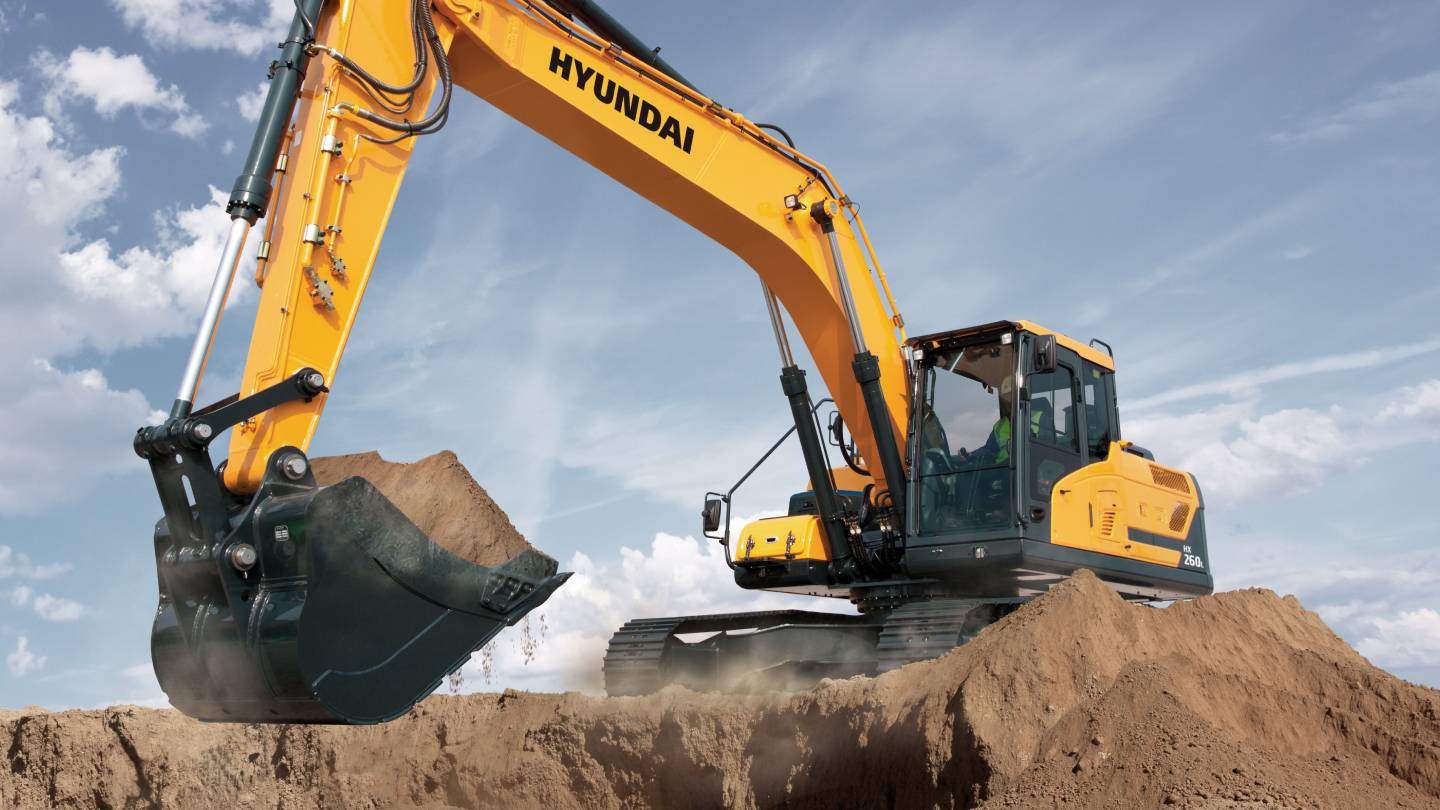

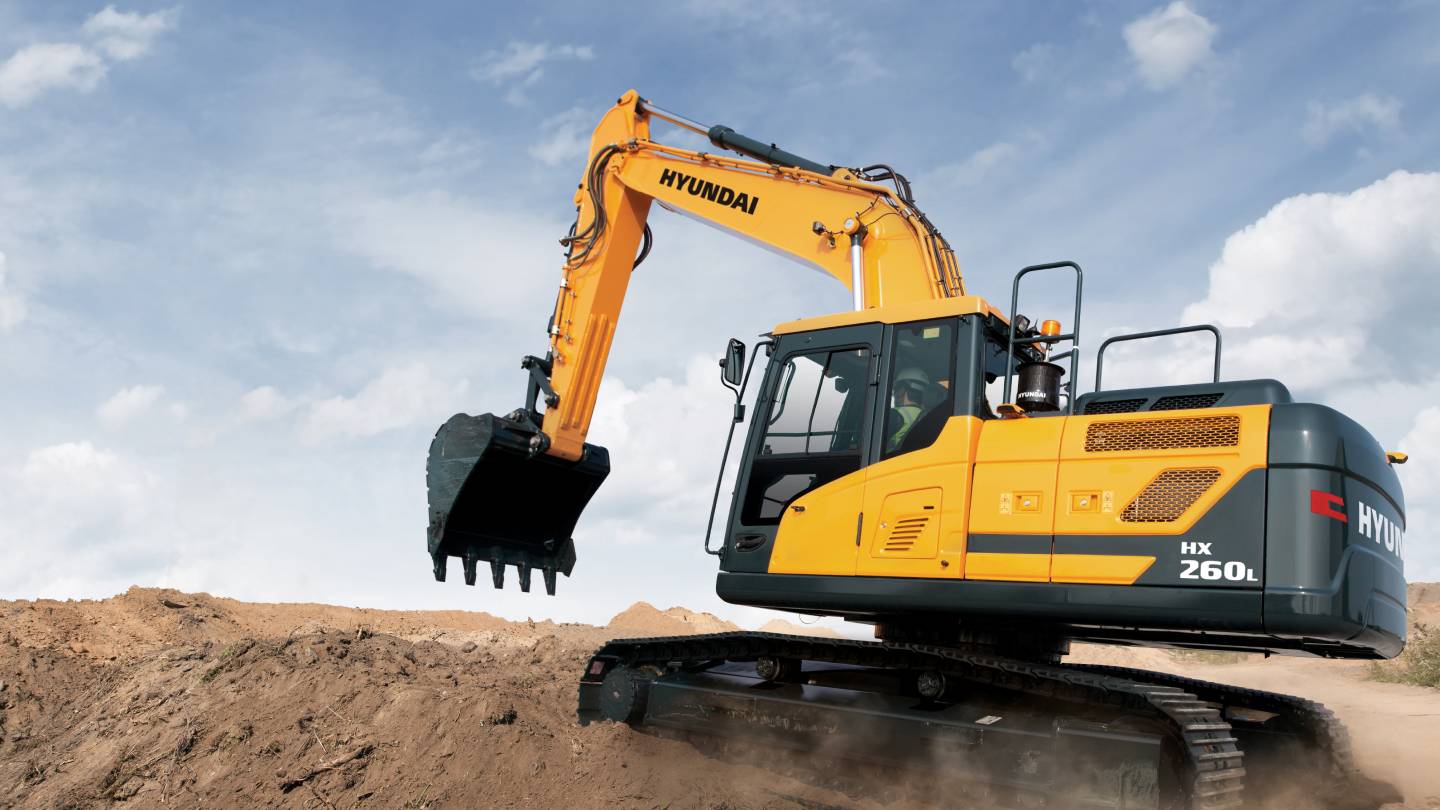

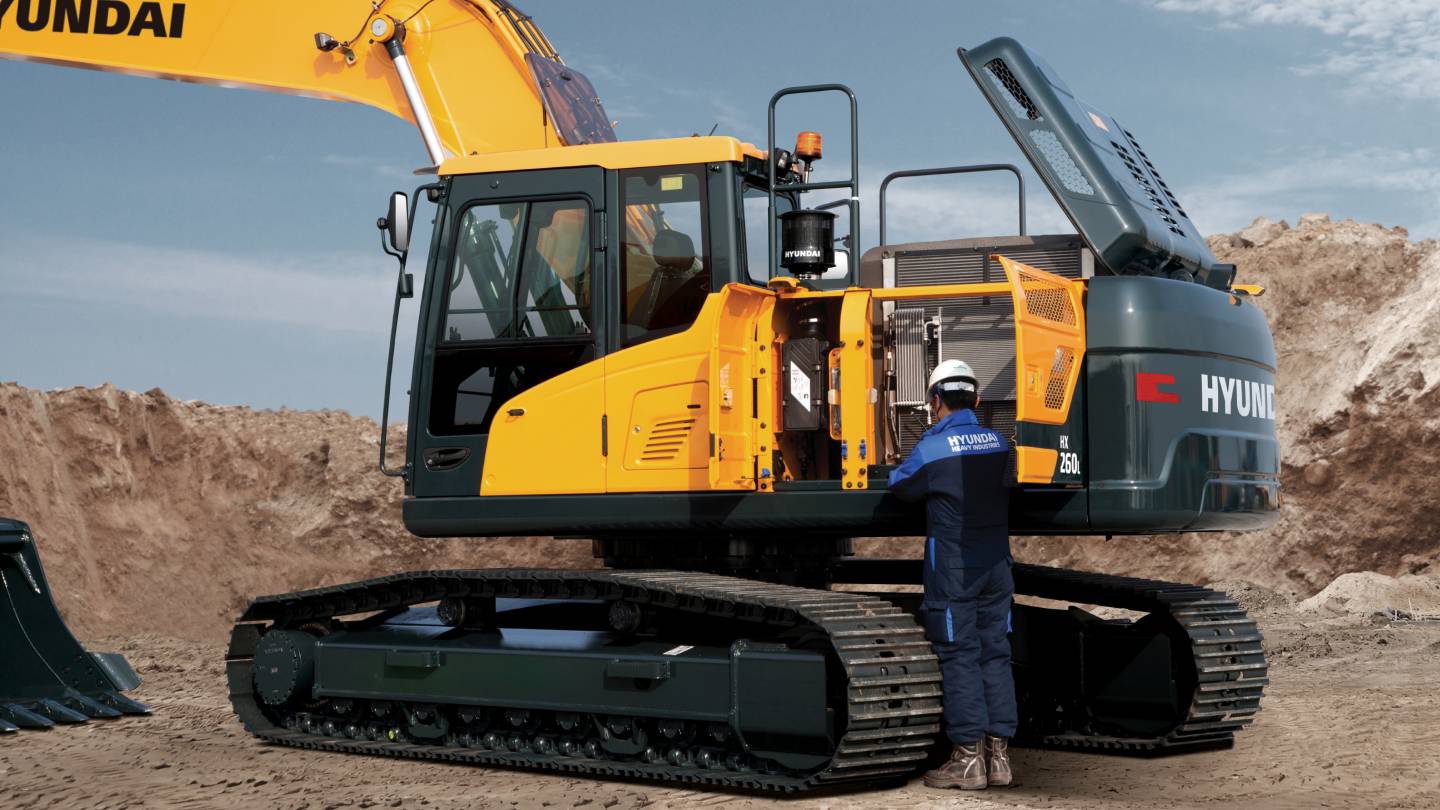

HX260L
-
Type
Medium Excavators
-
Operating Weight
25.6 ton
-
Emission
STAGE V
-
Rated Power
190 hp / 1,950 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
25.6 ton
Bucket Capacity
1.08 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS QSB6.7
Rated Power
190 hp / 1,950 rpm
Max. Torque
82.5 kgf·m / 1,500 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x228.2 ℓ/min
Implement Circuit
350 kgf/cm²
-
Tank Capacity
Fuel Tank
400 ℓ
Hydraulic Tank
160 ℓ
DEF/ ADBLUE Tank
27 ℓ
-
Performance
Swing Speed
10.8 rpm
Travel Speed
5.8 km/h
Max. Traction Force
21,100 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
18,200 kgf[19,760]kgf
Arm Digging Force (ISO)
12,100 kgf[13,140]kgf
-
Dimensions
Overall Length
9,920 mm
Overall Width
3,180 mm
Overall Height
3,260 mm
Tail Swing Radius
2,975 mm
Tumbler Distance
3,830 mm
Ground Clearance
480 mm
-
Operating Range
Boom Length
5,850 mm
Arm Length
3,050 mm
Max. Digging Reach
10,360 mm
Max. Digging Depth
7,000 mm
Max. Digging Height
9,670 mm
Max. Dumping Height
6,630 mm
Min. Swing Radius
3,980 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
