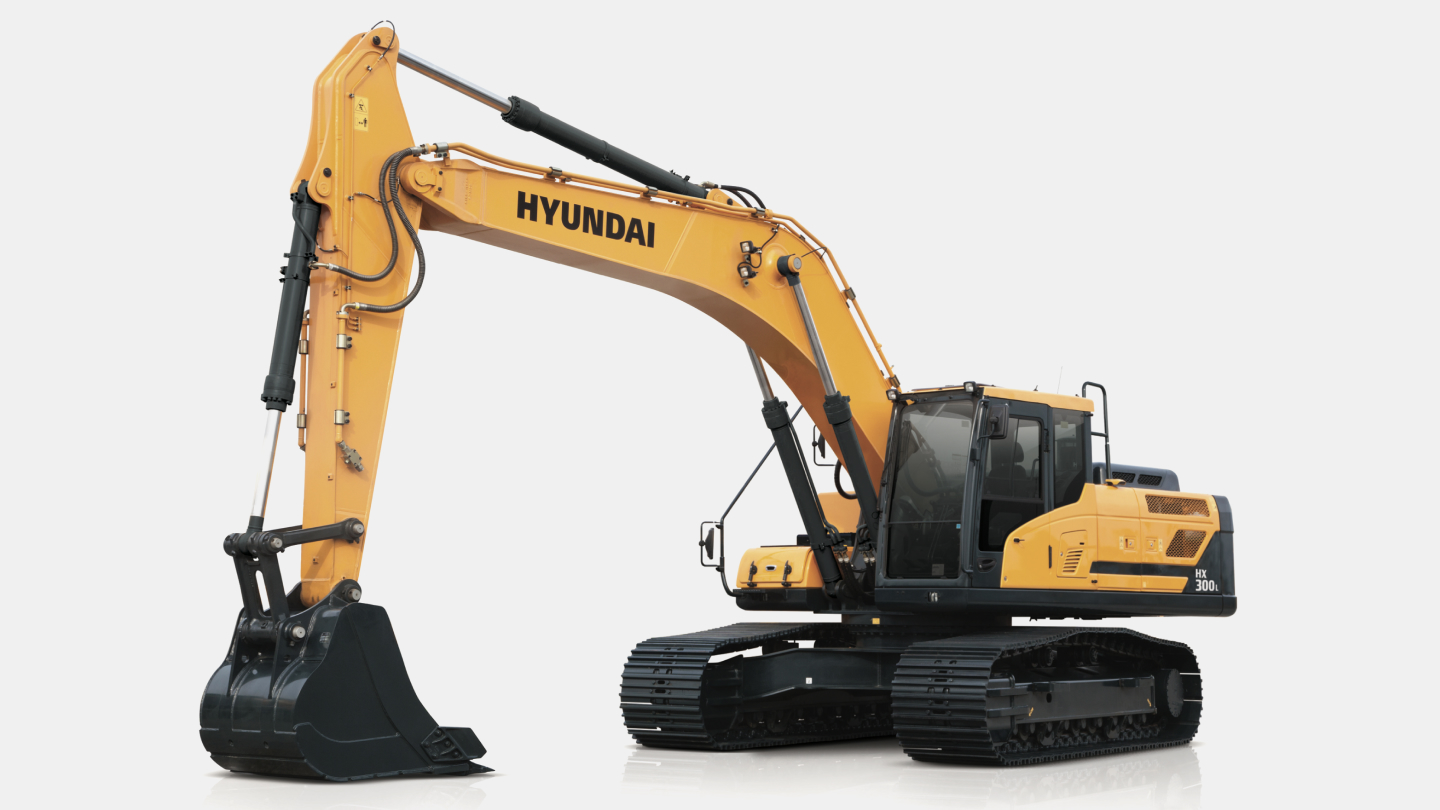

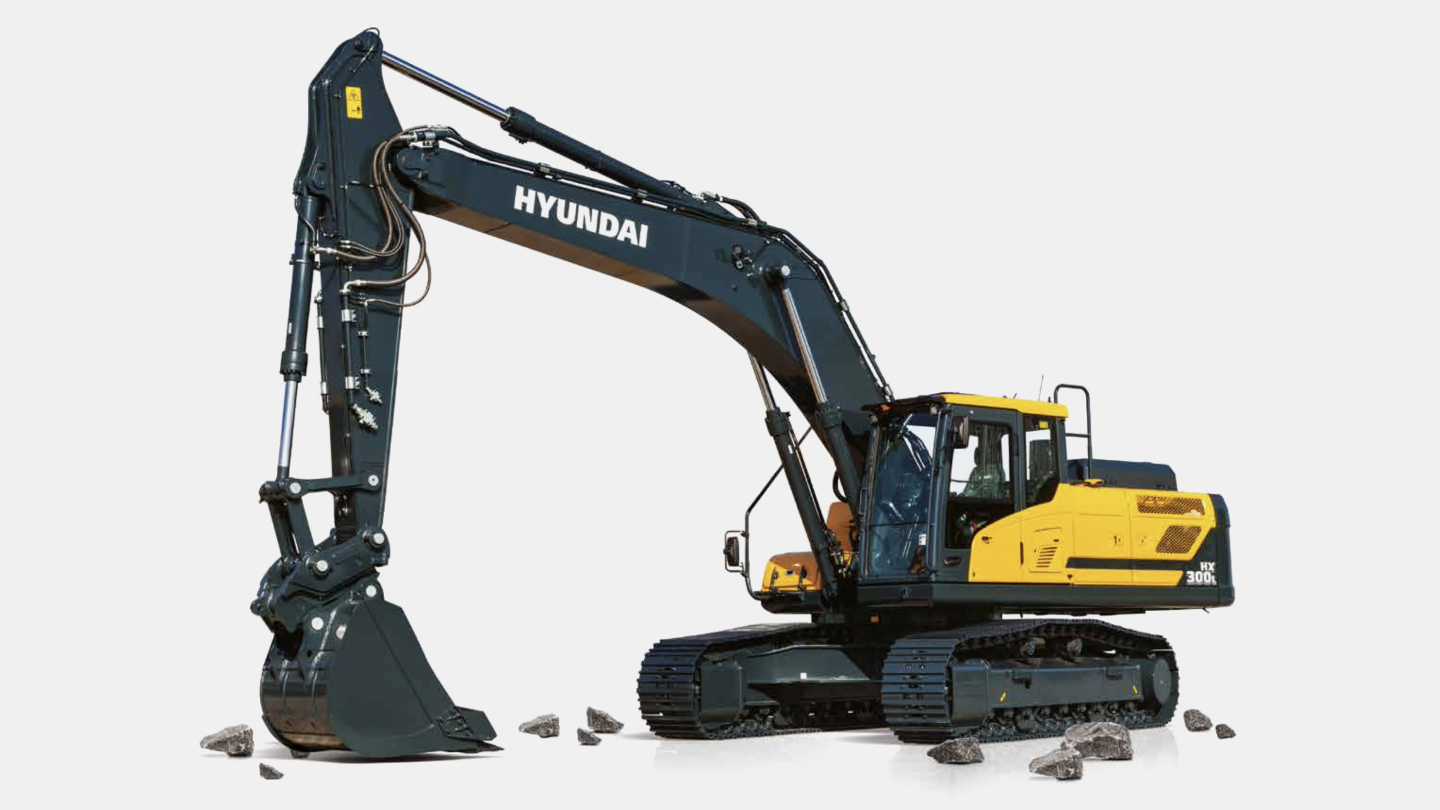

Excavators
Type
Large Excavators
Operating Weight
30.2  ton
Emission
TIER 4
Rated Power
242  hp / 1,950 rpm
General
Type
Large Excavators
Operating Weight
30.2  ton
Bucket Capacity
1.27  m³
Engine
Emission
TIER 4
Engine model
CUMMINS QSB6.7
Rated Power
242  hp / 1,950 rpm
Max. Torque
100.9  kgf·m / 1,500 rpm
Hydraulic System
Main Pumps Rated Flow
2x273  ℓ/min
Implement Circuit
350  kgf/cm²
Tank Capacity
Fuel Tank
500  ℓ
Hydraulic Tank
190  ℓ
DEF/ ADBLUE Tank
42.5  ℓ
Performance
Swing Speed
10.2  rpm
Travel Speed
5.9  km/h
Max. Traction Force
26,500  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
21,280  kgf
Arm Digging Force (ISO)
15,090  kgf
Dimensions
Overall Length
10,560  mm
Overall Width
3,200  mm
Overall Height
3,335  mm
Tail Swing Radius
3,210  mm
Tumbler Distance
4,030  mm
Ground Clearance
500  mm
Operating Range
Boom Length
6,250  mm
Arm Length
3,050  mm
Max. Digging Reach
10,820  mm
Max. Digging Depth
7,390  mm
Max. Digging Height
10,160  mm
Max. Dumping Height
7,110  mm
Min. Swing Radius
4,250  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
