Excavators

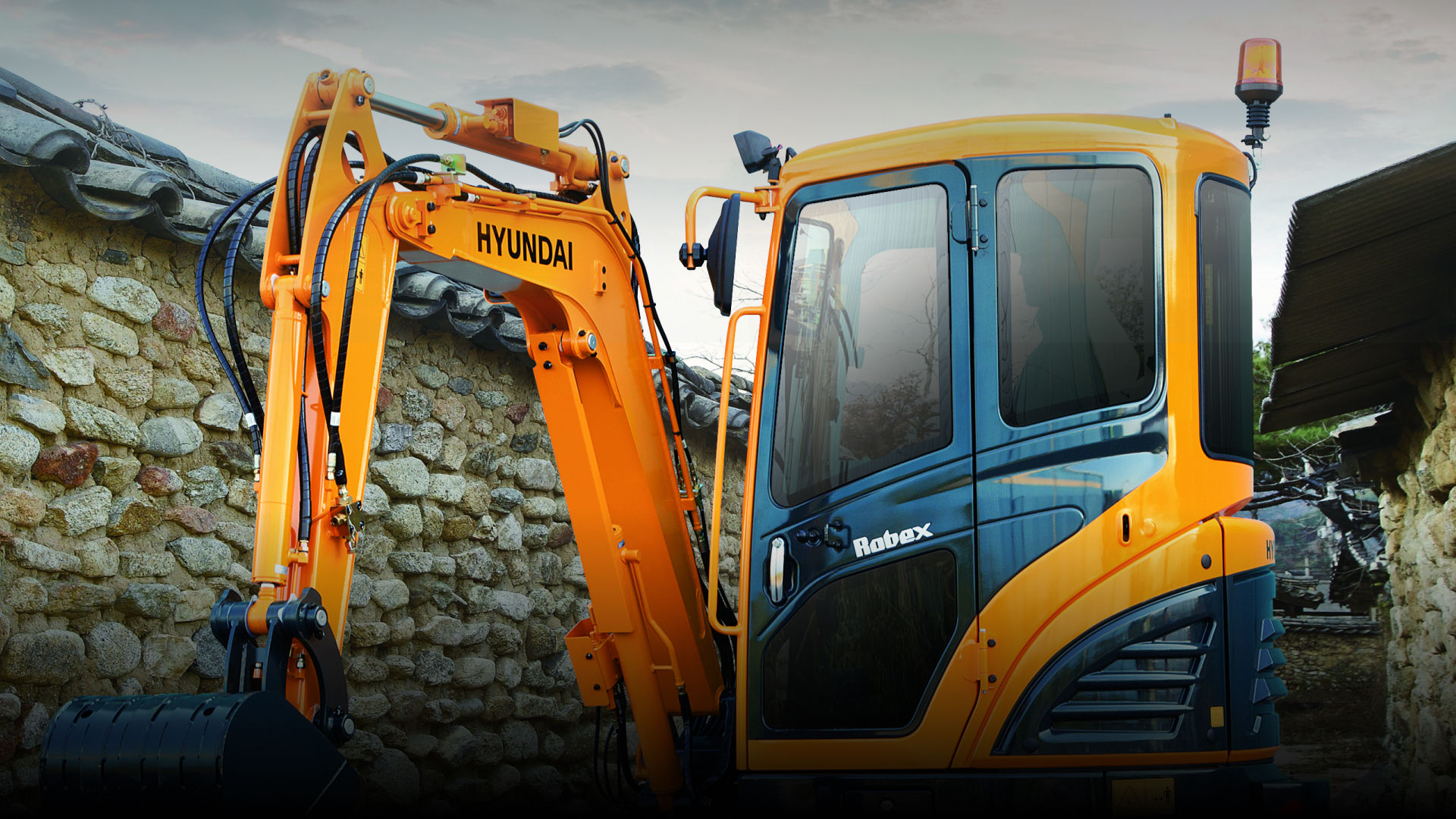

R30Z-9AK
-
Type
Compact Excavators
-
Operating Weight
2.93 ton
-
Emission
TIER 4
-
Rated Power
24.9 hp / 2,400 rpm
- Catalog
Specifications
-
General
Type
Compact Excavators
Operating Weight
2.93 ton
Bucket Capacity
0.08 m³
-
Engine
Emission
TIER 4
Engine model
KUBOTA D1305
Rated Power
24.9 hp / 2,400 rpm
Max. Torque
8.3 kgf·m / 1,600 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x27.6+19.6 ℓ/min
Implement Circuit
220 kgf/cm²
-
Tank Capacity
Fuel Tank
30 ℓ
Hydraulic Tank
27 ℓ
-
Performance
Swing Speed
9.1 rpm
Travel Speed
4.4 km/h
Max. Traction Force
2,400 kgf
Max. Gradeability
30 deg
Bucket Digging Force (ISO)
2,050 kgf
Arm Digging Force (ISO)
1,400 kgf
-
Dimensions
Overall Length
4,180 mm
Overall Width
1,550 mm
Overall Height
2,500 mm
Tail Swing Radius
775 mm
Tumbler Distance
1,550 mm
Ground Clearance
290 mm
-
Operating Range
Boom Length
2,030 mm
Arm Length
1,120 mm
Max. Digging Reach
4,650 mm
Max. Digging Depth
2,500 mm
Max. Digging Height
4,235 mm
Max. Dumping Height
2,860 mm
Min. Swing Radius
2,065 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
