Excavators

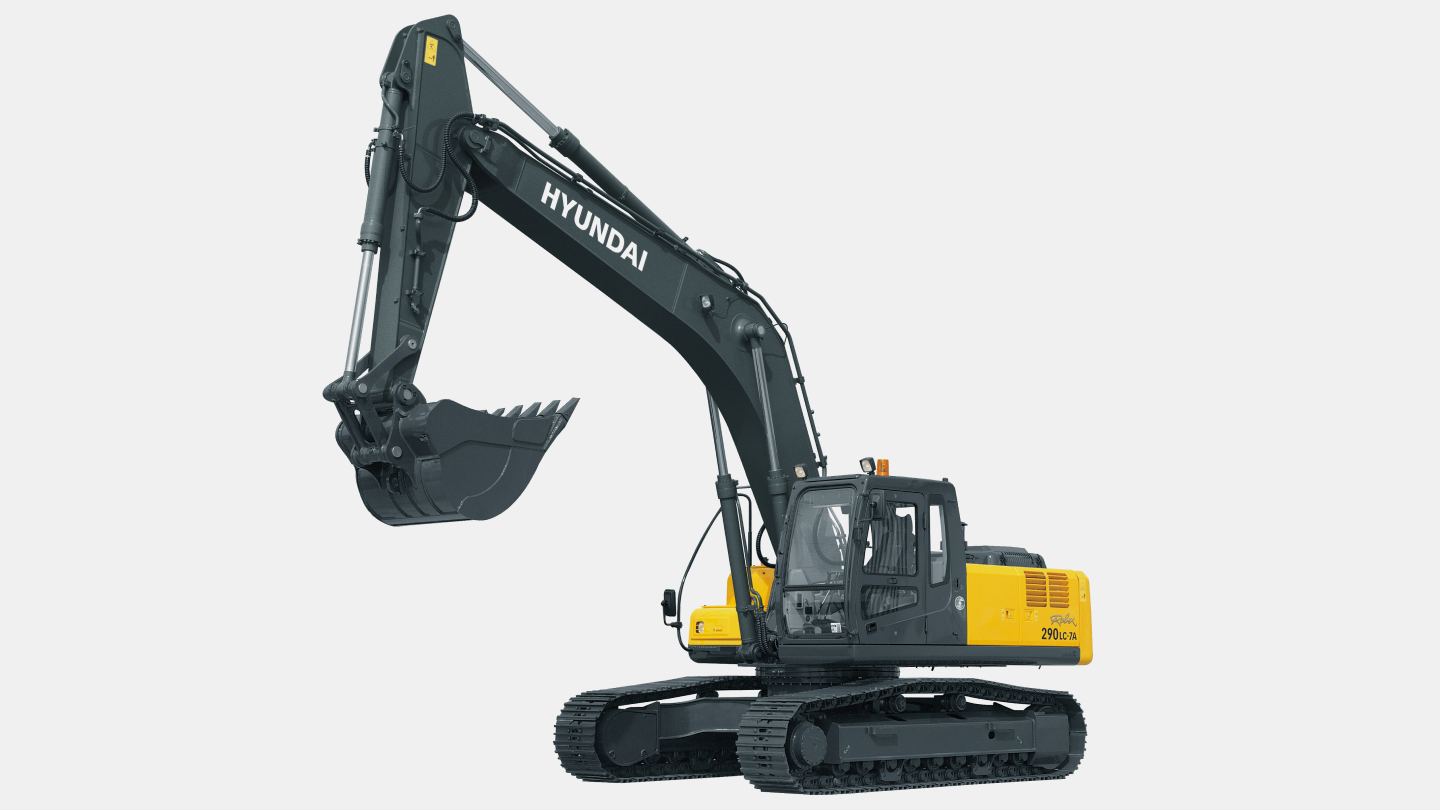

R290LC-7A
-
Type
Medium Excavators
-
Operating Weight
29 ton
-
Emission
TIER 3
-
Rated Power
227 hp / 1,900 rpm
- Catalog
Specifications
-
General
Type
Medium Excavators
Operating Weight
29 ton
Bucket Capacity
1.27 m³
-
Engine
Emission
TIER 3
Engine model
Cummins QSB6.7
Rated Power
227 hp / 1,900 rpm
Max. Torque
96.8 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2x252 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
480 ℓ
Hydraulic Tank
210 ℓ
-
Performance
Swing Speed
10.2 rpm
Travel Speed
5.2 km/h
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
19,600 kgf
Arm Digging Force (ISO)
13,100 kgf
-
Dimensions
Overall Length
10,560 mm
Overall Width
3,200 mm
Overall Height
3,290 mm
Tail Swing Radius
3,200 mm
Tumbler Distance
4,030 mm
Ground Clearance
500 mm
-
Operating Range
Boom Length
6,250 mm
Arm Length
3,050 mm
Max. Digging Reach
10,820 mm
Max. Digging Depth
10,620 mm
Max. Digging Height
10,160 mm
Max. Dumping Height
7,110 mm
Min. Swing Radius
4,230 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
