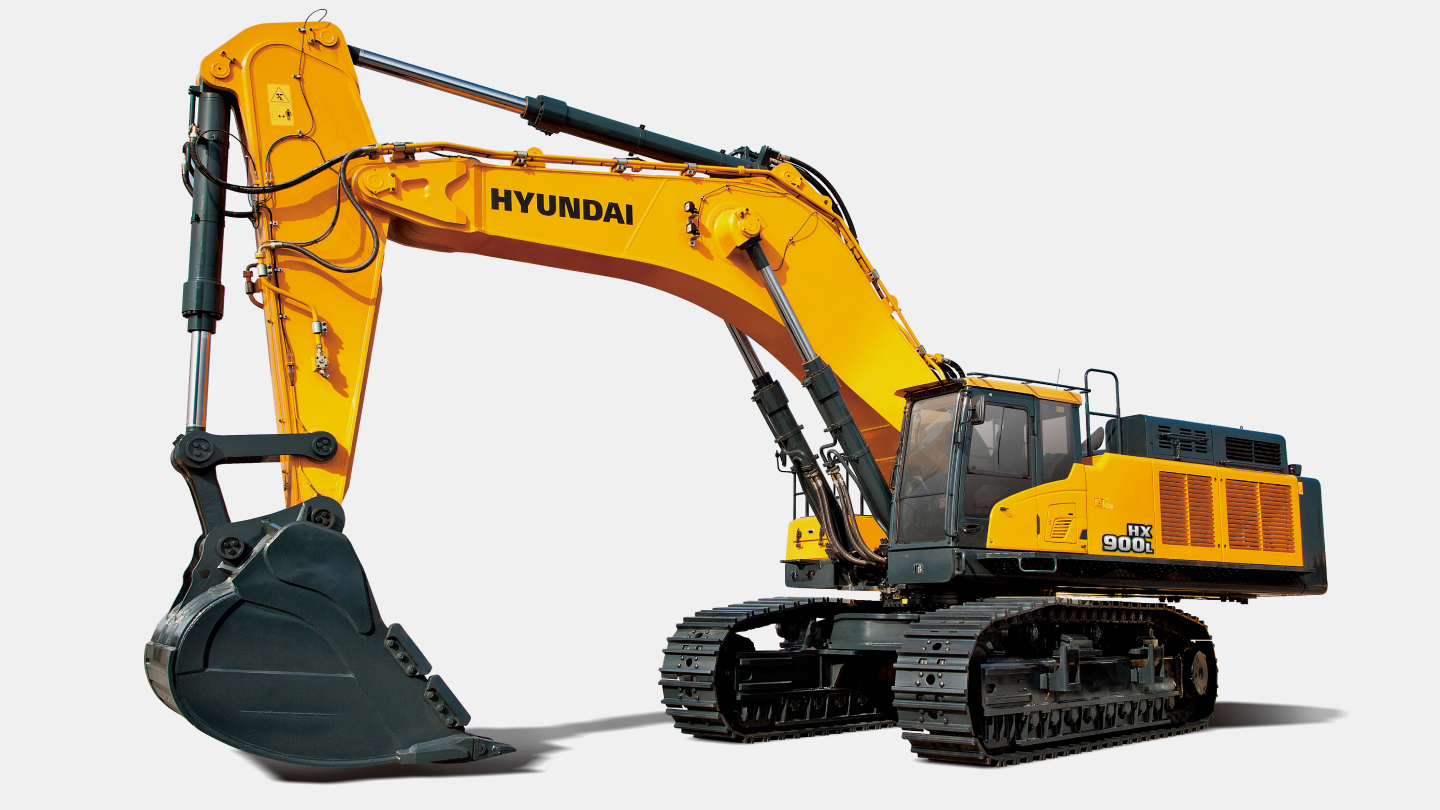

Excavators
Type
Large Excavators
Operating Weight
88.8  ton
Emission
TIER 4
Rated Power
642  hp / 2,100 rpm
General
Type
Large Excavators
Operating Weight
88.8  ton
Bucket Capacity
3.6  m³
Engine
Emission
TIER 4
Engine model
SCANIA DC16 084A
Rated Power
642  hp / 2,100 rpm
Max. Torque
320  kgf·m / 1,400 rpm
Hydraulic System
Main Pumps Rated Flow
2x504  ℓ/min
Implement Circuit
330  kgf/cm²
Tank Capacity
Fuel Tank
1,110  ℓ
Hydraulic Tank
450  ℓ
DEF/ ADBLUE Tank
69  ℓ
Performance
Swing Speed
6.2  rpm
Travel Speed
2.4  km/h
Max. Traction Force
66,800  kgf
Max. Gradeability
35  deg
Bucket Digging Force (ISO)
42,440  kgf
Arm Digging Force (ISO)
35,560  kgf
Dimensions
Overall Length
14,460  mm
Overall Width
4,200  mm
Overall Height
5,180  mm
Tail Swing Radius
4,650  mm
Tumbler Distance
5,130  mm
Ground Clearance
880  mm
Operating Range
Boom Length
8,200  mm
Arm Length
3,600  mm
Max. Digging Reach
13,920  mm
Max. Digging Depth
8,810  mm
Max. Digging Height
12,780  mm
Max. Dumping Height
8,690  mm
Min. Swing Radius
5,970  mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
