Excavators

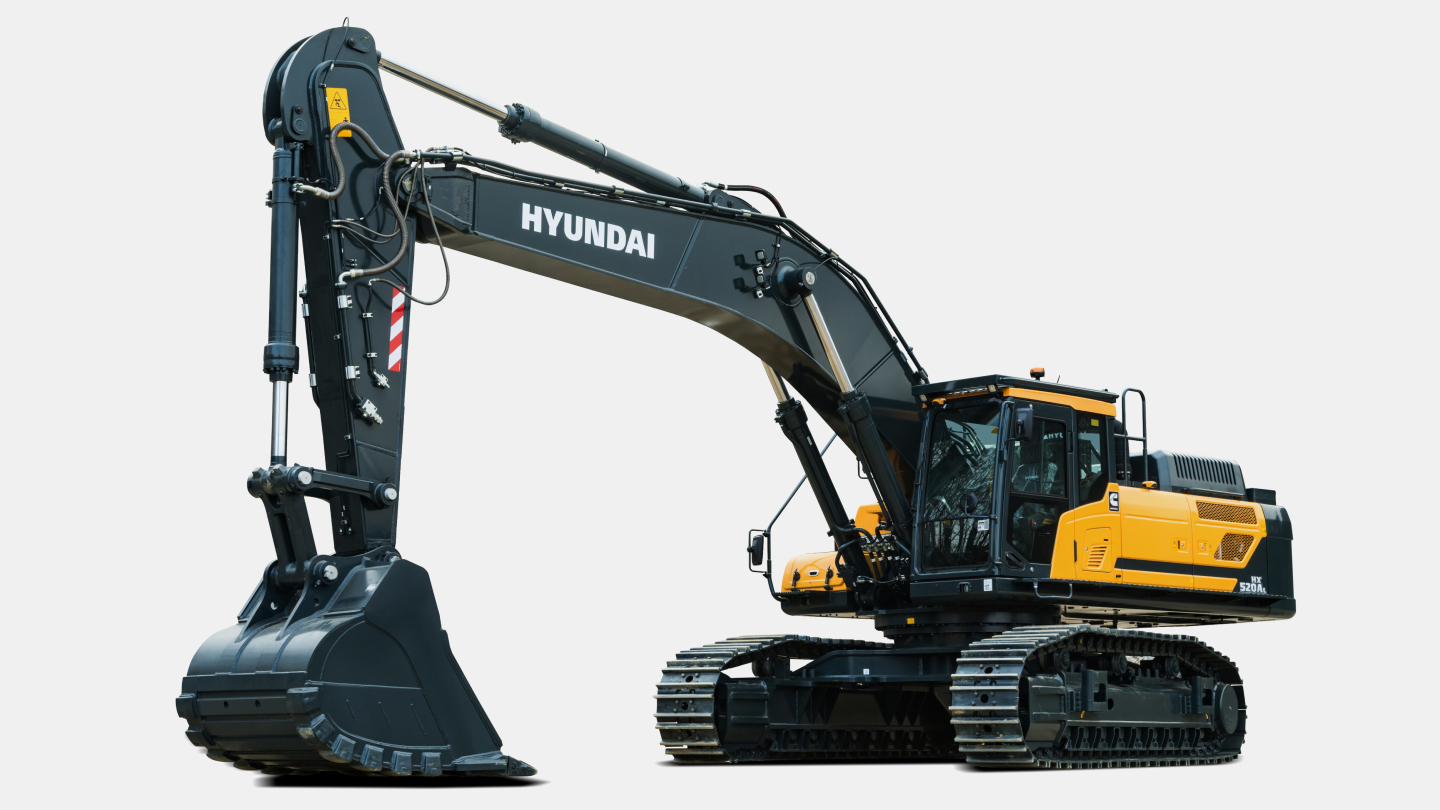

HX520A L
-
Type
Large Excavators
-
Operating Weight
52 ton
-
Emission
STAGE V
-
Rated Power
400 hp / 2,100 rpm
- Catalog
Specifications
-
General
Type
Large Excavators
Operating Weight
52 ton
Bucket Capacity
1.00 m³
-
Engine
Emission
STAGE V
Engine model
CUMMINS / X12
Rated Power
400 hp / 2,100 rpm
Max. Torque
1,898 kgf·m / 1,400 rpm
-
Hydraulic System
Main Pumps Rated Flow
2 × 394 ℓ/min
Implement Circuit
330 kgf/cm²
-
Tank Capacity
Fuel Tank
600 ℓ
Hydraulic Tank
275 ℓ
DEF/ ADBLUE Tank
70 ℓ
-
Performance
Swing Speed
9.0 rpm
Travel Speed
5.3 km/h
Max. Traction Force
39,674 kgf
Max. Gradeability
35 deg
Bucket Digging Force (ISO)
280.5 kgf
Arm Digging Force (ISO)
198.1 kgf
-
Dimensions
Overall Length
12,260 mm
Overall Width
600 mm
Overall Height
4,190 mm
Tail Swing Radius
3,945 mm
Tumbler Distance
4,470 mm
Ground Clearance
1,445 mm
-
Operating Range
Boom Length
7,060 mm
Arm Length
3,380 mm
Max. Digging Reach
12,040 mm
Max. Digging Depth
7,610 mm
Max. Digging Height
11,180 mm
Max. Dumping Height
7,780 mm
Min. Swing Radius
4,770 mm
- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
